05DB Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN WIRE IDC 5POS 24-28AWG PCB
| Part | Number of Positions Loaded | Cable Termination | Number of Positions | Cable Pitch | Cable Pitch | Connector Type | Number of Rows | Features | Contact Finish | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Wire Gauge | Board-Side Pitch | Board-Side Pitch | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

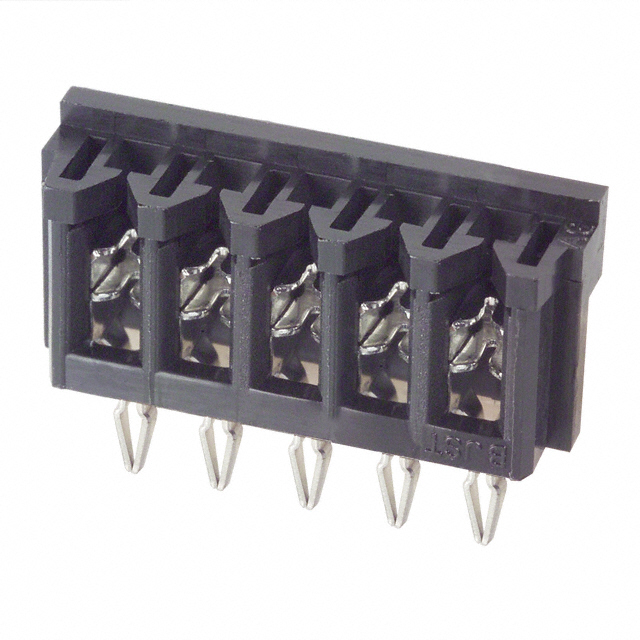

 JST Sales America Inc. | All | IDC | 5 | 0.098 in | 2.5 mm | Individual Wires | 1 | Closed End | Tin-Lead | Press-Fit Through Hole | 24 AWG | 28 AWG | Stranded | 2.5 mm | 0.098 in | Black |

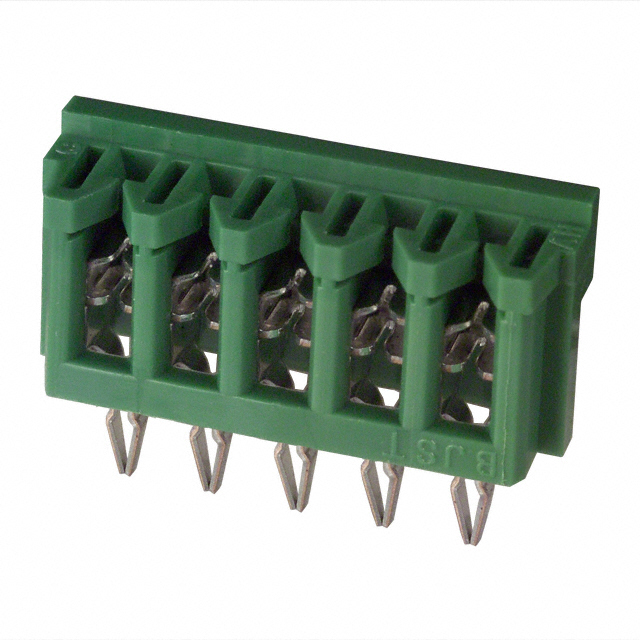

 JST Sales America Inc. | All | IDC | 5 | 0.098 in | 2.5 mm | Individual Wires | 1 | Closed End | Tin-Lead | Press-Fit Through Hole | 24 AWG | 28 AWG | Stranded | 2.5 mm | 0.098 in | Green |
 JST Sales America Inc. | All | IDC | 5 | 0.098 in | 2.5 mm | Individual Wires | 1 | Closed End | Tin-Lead | Press-Fit Through Hole | 24 AWG | 28 AWG | Stranded | 2.5 mm | 0.098 in | White |
