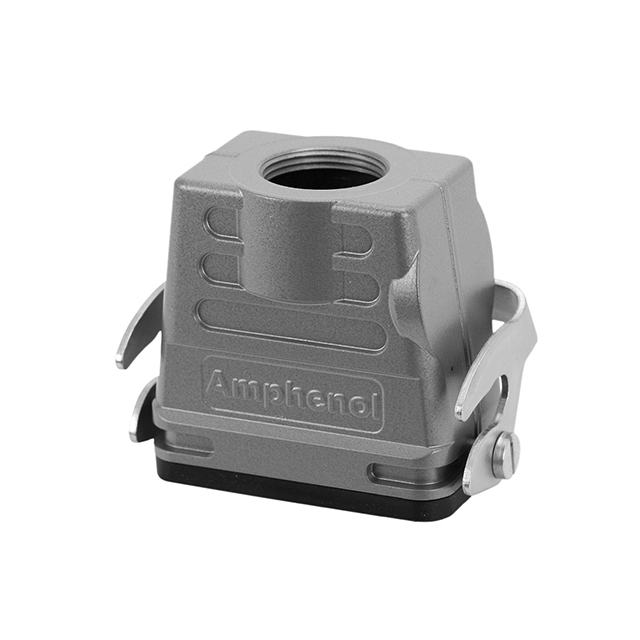

C146 21R010 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN HOOD SIDE ENTRY SZE10 M32

Part	Size	Ingress Protection	Style	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Lock Location	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Thread Size	Features
Amphenol Tuchel Industrial C146 21R010 502 8	E10	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Die Cast	-40 C	100 °C	Hood	Locking Clip (2) on Hood	73 mm	2.874 "	2.756 "	70 mm	43 mm	1.693 "	M32

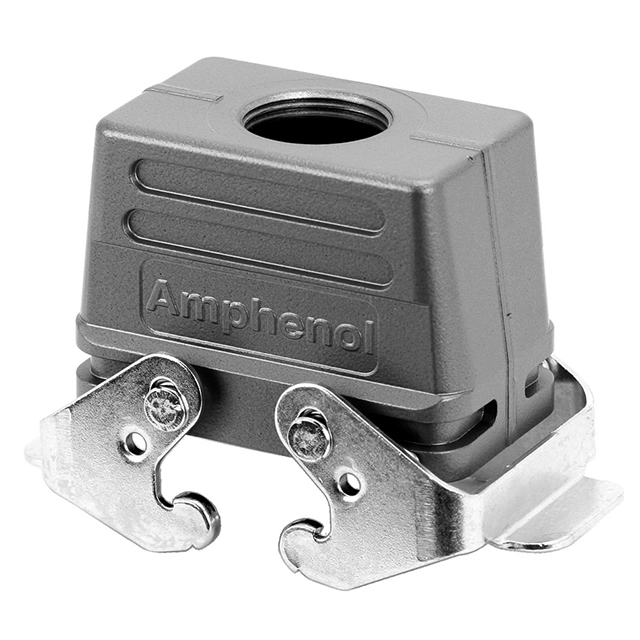

Amphenol Tuchel Industrial C146 21R010 552 1	E10	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Alloy Die Cast	-40 C	100 °C	Hood	Locking Clip (2) on Hood	73 mm	2.874 "	2.008 "	51 mm	43 mm	1.693 "	M20

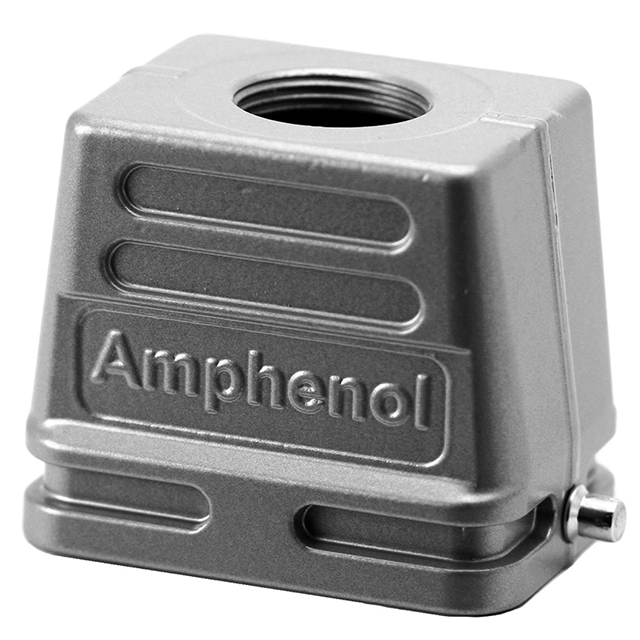

Amphenol Tuchel Industrial C146 21R010 607 8	E10	IP65 - Dust Tight Water Resistant	Top Entry	Aluminum Die Cast	-40 C	100 °C	Hood	Locking Clip (1) on Base Bottom	73 mm	2.874 "	2.756 "	70 mm	43 mm	1.693 "

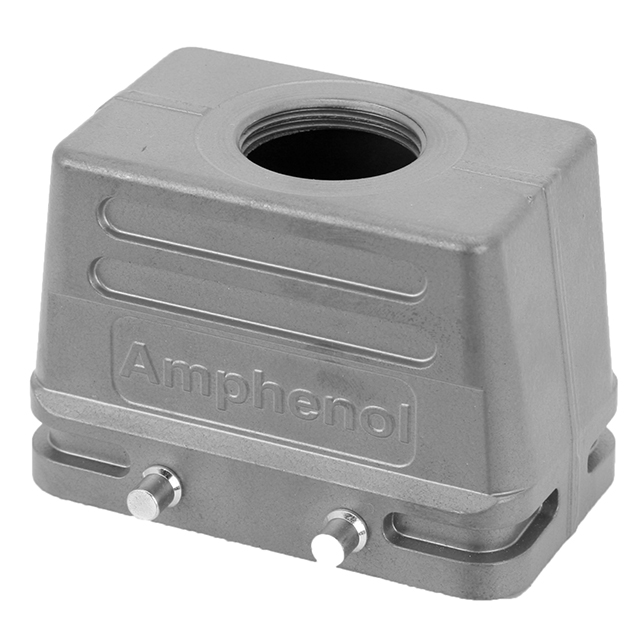

Amphenol Tuchel Industrial C146 21R010 650 8	E10	IP65 - Dust Tight Water Resistant	Top Entry	Aluminum Die Cast	-40 C	100 °C	Hood	Locking Clip (2) on Base Bottom	73 mm	2.874 "	2.756 "	70 mm	43 mm	1.693 "	M25
Amphenol Tuchel Industrial C146 21R010 854 1	E10	IP65 - Dust Tight Water Resistant	Bottom Entry Top or Bottom Entry	Aluminum Alloy Die Cast	-40 C	100 °C	Hood - Coupling	Locking Clip (2) on Hood Top	73 mm	2.874 "	2.008 "	51 mm	43 mm	1.693 "	M20	Cable to Cable
Amphenol Tuchel Industrial C146 21R010 804 8	E10	IP65 - Dust Tight Water Resistant	Bottom Entry Top or Bottom Entry	Aluminum Die Cast	-40 C	100 °C	Hood - Coupling	Locking Clip (1) on Hood Top	73 mm	2.874 "	2.756 "	70 mm	43 mm	1.693 "	M32	Cable to Cable

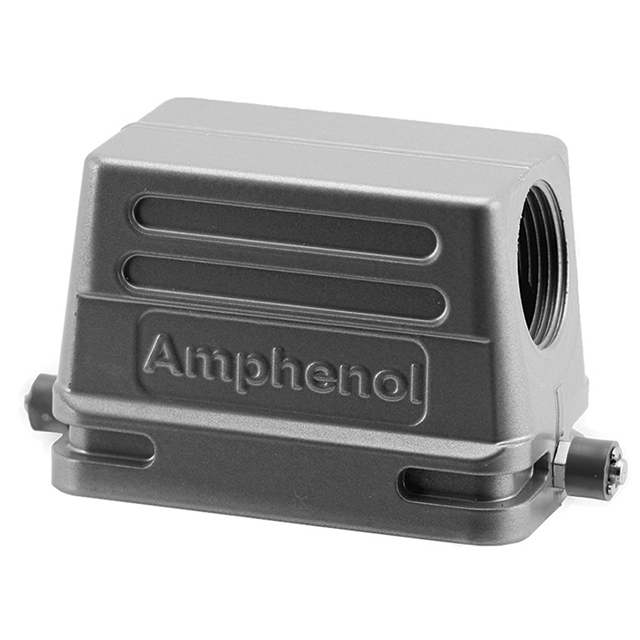

Amphenol Tuchel Industrial C146 21R010 556 8	E10	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Die Cast	-40 C	100 °C	Hood	Locking Clip (1) on Base Bottom	73 mm	2.874 "	2.756 "	70 mm	43 mm	1.693 "	M25

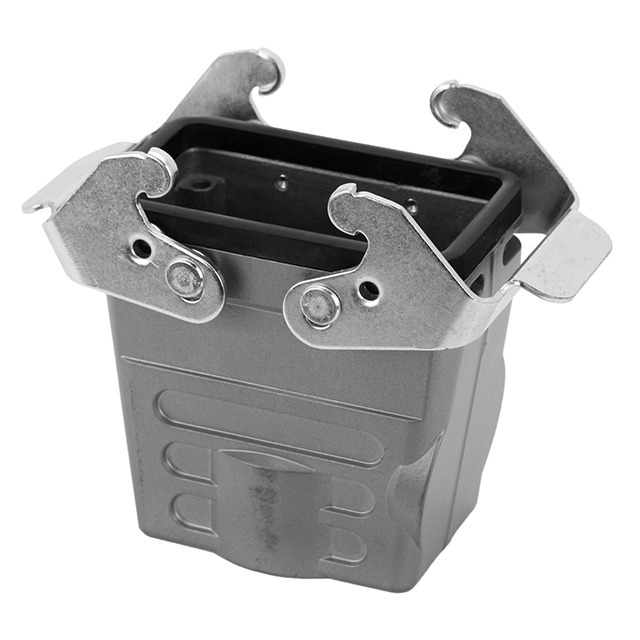

Amphenol Tuchel Industrial C146 21R010 802 8	E10	IP65 - Dust Tight Water Resistant	Bottom Entry Top or Bottom Entry	Aluminum Die Cast	-40 C	100 °C	Hood - Coupling	Locking Clip (2) on Hood Top	73 mm	2.874 "	2.756 "	70 mm	43 mm	1.693 "	M32	Cable to Cable

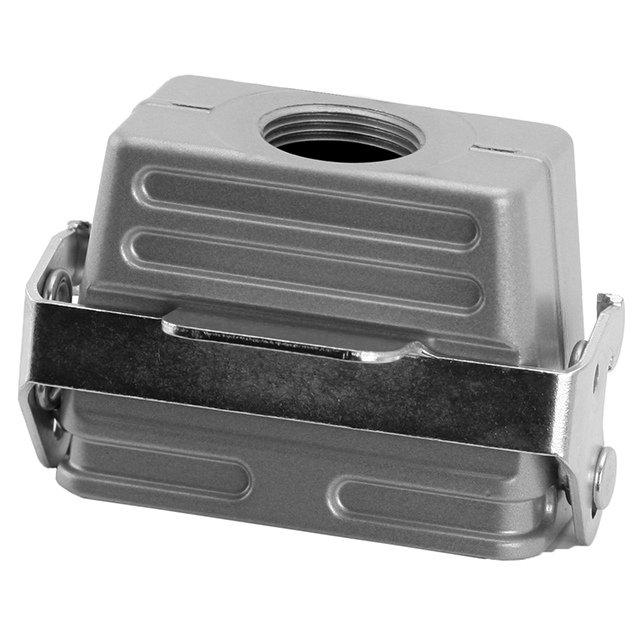

Amphenol Tuchel Industrial C146 21R010 854 4	A10	IP65 - Dust Tight Water Resistant	Bottom Entry Top or Bottom Entry	Aluminum Alloy Die Cast	-40 C	100 °C	Hood - Coupling	Locking Clip (1) on Hood Top	76 mm	2.992 in	1.87 in	47.5 mm	29.5 mm	1.161 in	M20	Cable to Cable
Amphenol Tuchel Industrial C146 21R010 550 4	A10	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Alloy Die Cast	-40 C	100 °C	Hood	Locking Clip (1) on Base Bottom	62.5 mm	2.461 "	2.087 in	53 mm	29.5 mm	1.161 in	M20
