AR0144CS Series

CMOS Image Sensor, Digital, Global Shutter, 1.0 MP, 1/4-Inch

Catalog

CMOS Image Sensor, Digital, Global Shutter, 1.0 MP, 1/4-Inch

Part	Type	Frames per Second	Active Pixel Array [y]	Active Pixel Array [x]	Pixel Size [x]	Pixel Size [y]	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Package / Case	Grade	Qualification	Utilized IC / Part	Sensor Type	Supplied Contents
ON Semiconductor AR0144CSSM20SUD20

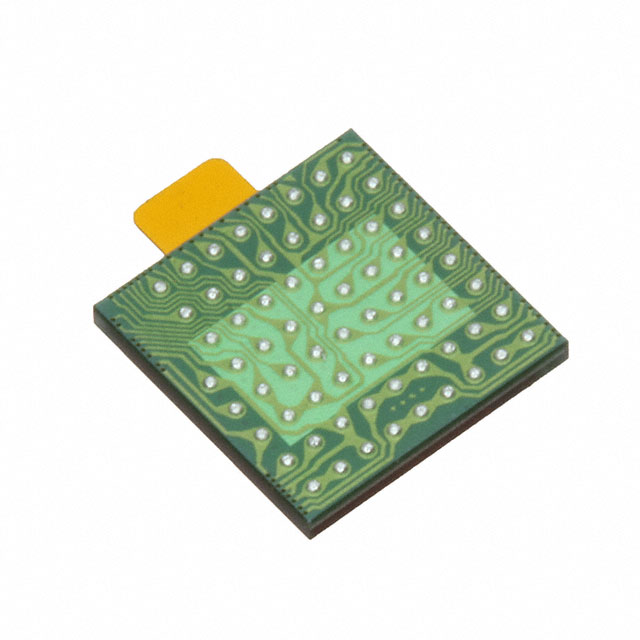

ON Semiconductor AR0144CSSC00SUKA0-CPBR	CMOS	60	800	1280	3 µm	3 µm	5.55	5.57	69-ODCSP	69-WFBGA CSPBGA
ON Semiconductor AR0144ATSM20XUEA0-TPBR	CMOS	60	800	1280	3 µm	3 µm					Automotive	AEC-Q100
ON Semiconductor AR0144CSSM20SUKAH3-GEVB													AR0144CS	Image Sensor	Board(s)
ON Semiconductor AR0144CSSC00SUD20	CMOS	60	800	1280	3 µm	3 µm			Die	Die
ON Semiconductor AR0144CSSM00SUKA0-CPBR	CMOS	60	800	1280	3 µm	3 µm	5.55	5.57	69-ODCSP	69-WFBGA CSPBGA
ON Semiconductor AR0144CSSM00SUKA0-CRBR1	CMOS	60	800	1280	3 µm	3 µm	5.55	5.57	69-ODCSP	69-WFBGA CSPBGA
ON Semiconductor AR0144CSSM00SUKA0-CPBR1

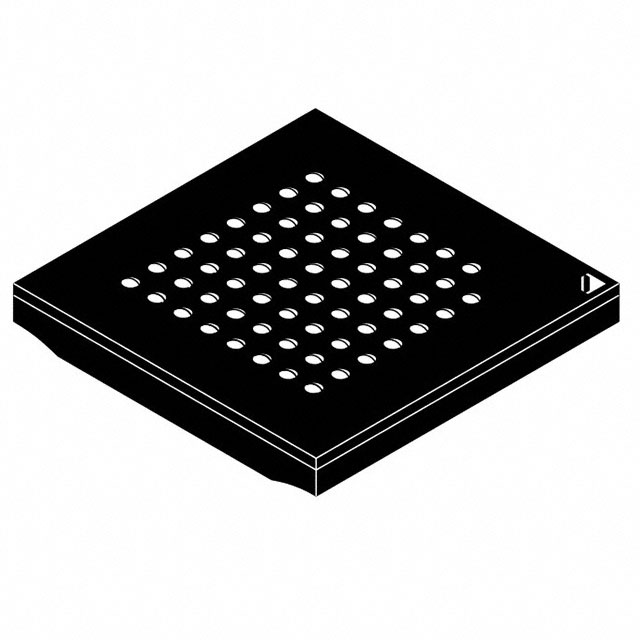

ON Semiconductor AR0144ATSM20XUEA0-TRBR	CMOS	60	800	1280	3 µm	3 µm			63-IBGA (7x7)	63-LFBGA	Automotive	AEC-Q100

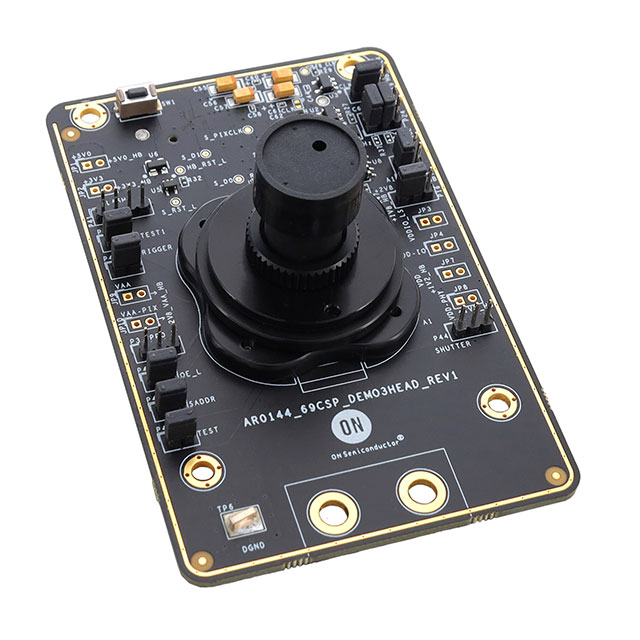

ON Semiconductor AR0144CSSC00SUKAH3-GEVB													AR0144CS	Image Sensor	Board(s)

Catalog

CMOS Image Sensor, Digital, Global Shutter, 1.0 MP, 1/4-Inch

Key Features

• Superior Low-light and IR Performance

• HD Video (720p60)

• 2-Lane MIPI or Parallel data interface

• Automatic Black Level Calibration (ABLC)

• Programmable Control for Region Of Interest (ROI)

• Horizontal and Vertical Mirroring, Windowing and Pixel Binning

• On-chip Auto Exposure Control for Any Programmable ROI

• On-chip Slave or Trigger Mode for Synchronization

• Built in Strobe Control

• On-chip Phase Lock Loop (PLL)

Description

The AR0144 is a 1/4-inch 1.0 Mp CMOS digital image sensor with an active-pixel array of 1280H x 800V. It incorporates a new innovative global shutter pixel design optimized for accurate and fast capture of moving scenes. The sensor produces clear, low noise images in both low-light and bright scenes. It includes sophisticated camera functions such as auto exposure control, windowing, row skip mode, column-skip mode, pixel-binning and both video and single frame modes. It is programmable through a simple two-wire serial interface. The AR0144 produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications, including scanning and industrial inspection.
