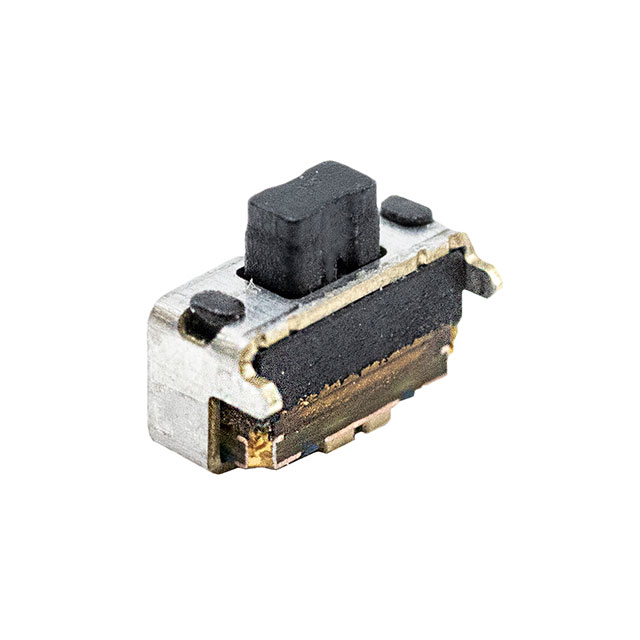

TL6340 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.02A 12V
| Part | Mechanical Life | Switch Travel | Circuit | Operating Force | Actuator Length, Right Angle [x] | Contact Rating @ Voltage | Illumination | Outline [y] | Outline [x] | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Ingress Protection | Switch Function | Mounting Type | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 200000 Cycles | 0.2 mm | SPST-NO | 160 gf | 2.9 mm | 0.02 A 12 VDC | Non-Illuminated | 1.95 mm | 3.85 mm | SMD (SMT) Tab | 85 °C | -40 C | Rectangular Button | IP67 - Dust Tight Waterproof | Off-Mom | Right Angle Surface Mount | Side Actuated |
