45533 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

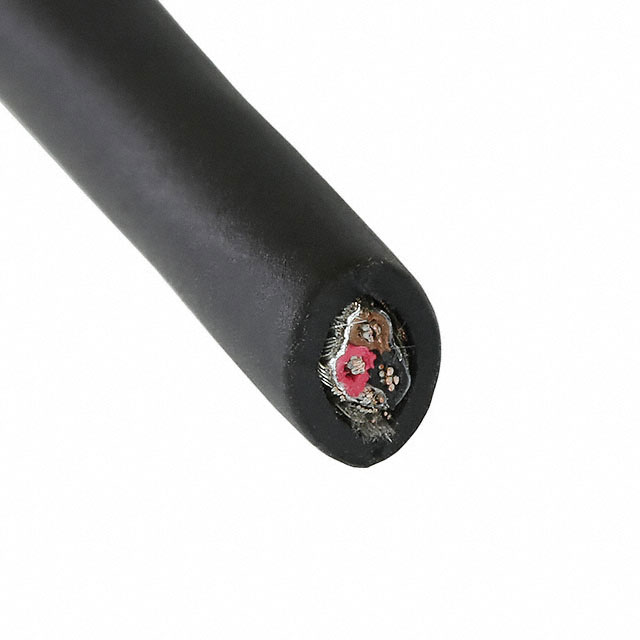

CABLE 3COND 16AWG SHLD 1000'
| Part | Shield Material | Cable Type | Features | Jacket (Insulation) Material | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Shield Coverage | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Material | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Suprashield® | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | Thermoplastic Elastomer (TPE) | ISO 10993 | -50 °C | 125 °C | 16 AWG | 70 % 100 % | 600 V | 10.34 mm | 0.407 " | Braid Foil | Slate | 19 | 0.0117 in | 3 | Copper Tinned | 1000 ft | 304.8 m | 1.397 mm | 0.055 in | Thermoplastic Elastomer (TPE) | ||
 ALPHA WIRE | Aluminum Suprashield® | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | Thermoplastic Elastomer (TPE) | ISO 10993 | -50 °C | 125 °C | 16 AWG | 70 % 100 % | 600 V | 10.34 mm | 0.407 " | Braid Foil | Black | 19 | 0.0117 in | 3 | Copper Tinned | 1.397 mm | 0.055 in | Thermoplastic Elastomer (TPE) | 30.5 m | 100 ft |
