628-3WK Series
Manufacturer: EDAC Inc.
Beta
⌘K

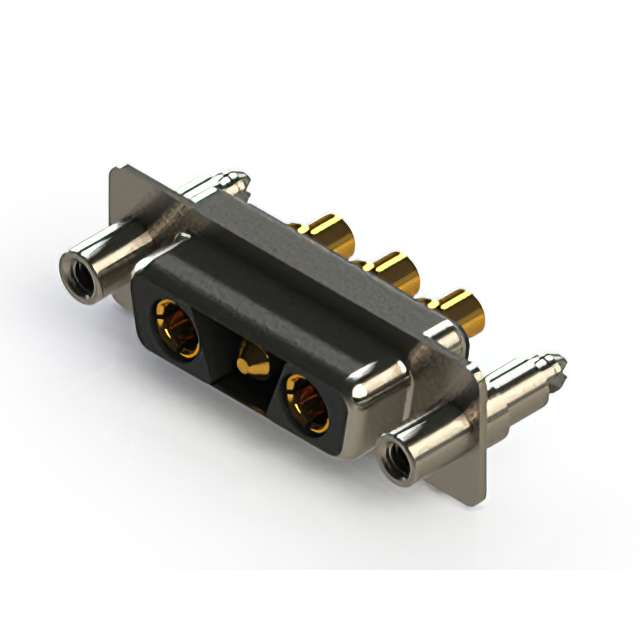

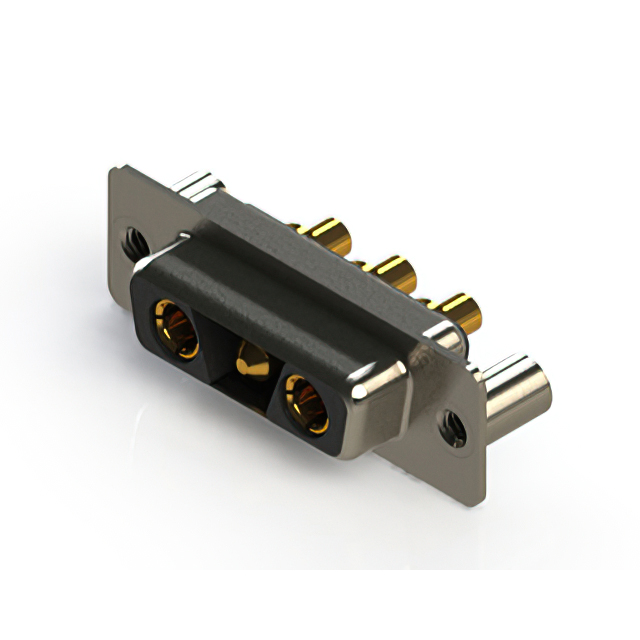

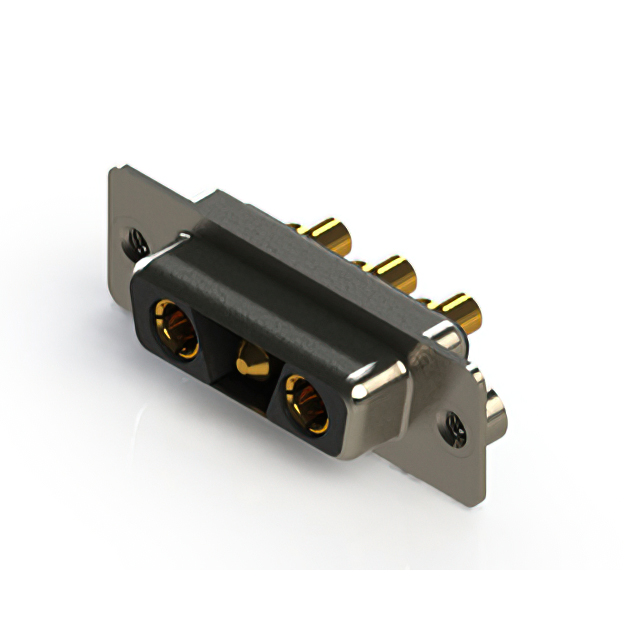

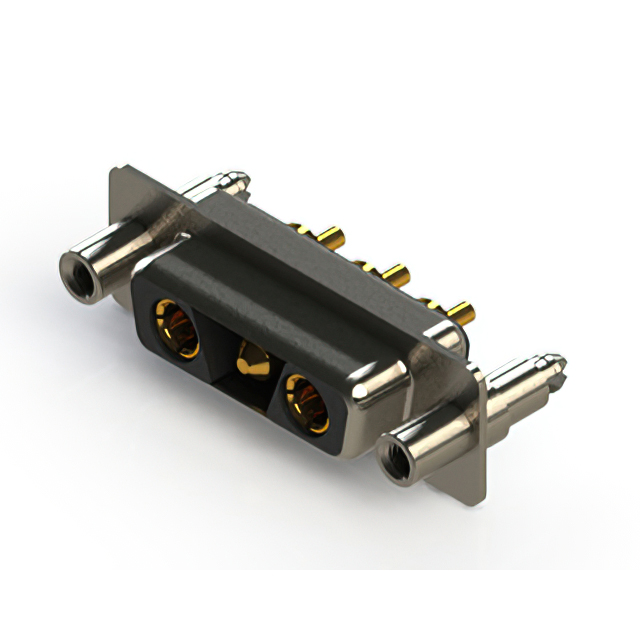

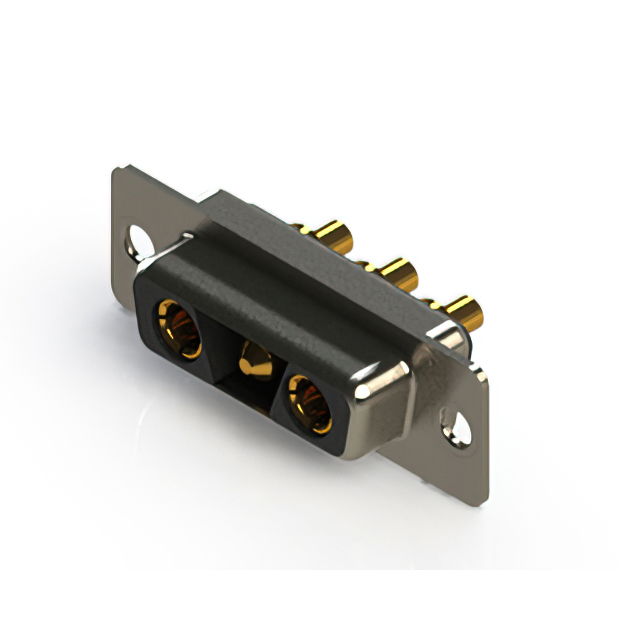

CONN D-SUB RCPT 3POS VERT SLDR
| Part | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Style | Contact Finish | Features | Number of Rows | Contact Type | Current Rating (Amps) | Flange Feature | Termination | Mounting Type | Contact Finish Thickness | Connector Type | Number of Positions | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 3WK3 A DA | 2 | Combo D-Sub | Gold | Shielded | 1 | Signal and Power | 30 A | Board Side (4-40) | Solder | Through Hole | Flash | Receptacle Female Sockets and Male Pins | 3 | UL94 V-0 | |||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 3WK3 A DA | 2 | Combo D-Sub | Gold | Shielded | 1 | Signal and Power | 30 A | Board Side (M3) | Solder | Through Hole | Receptacle Female Sockets and Male Pins | 3 | UL94 V-0 | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 3WK3 A DA | 2 | Combo D-Sub | Gold | Board Lock Shielded | 1 | Signal and Power | 40 A | 4-40 | Solder | Through Hole | Flash | Receptacle Female Sockets and Male Pins | 3 | UL94 V-0 | |||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 3WK3 A DA | 2 | Combo D-Sub | Gold | Shielded | 1 | Coax Signal | M3 | Solder | Through Hole | Receptacle Female Sockets and Male Pins | 3 | UL94 V-0 | 30 Áin | 0.76 Ám | Nickel Plated Steel | ||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 3WK3 A DA | 2 | Combo D-Sub | Gold | Shielded | 1 | Signal and Power | 20 A | Housing/Shell (Unthreaded) | Solder | Through Hole | Flash | Receptacle Female Sockets and Male Pins | 3 | UL94 V-0 | Nickel Plated Steel | ||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 3WK3 A DA | 2 | Combo D-Sub | Gold | Board Lock Shielded | 1 | Coax Signal | Board Side (M3) | Solder | Through Hole | Receptacle Female Sockets and Male Pins | 3 | UL94 V-0 | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 3WK3 A DA | 2 | Combo D-Sub | Gold | Board Lock Shielded | 1 | Signal and Power | 40 A | M3 | Solder | Through Hole | Receptacle Female Sockets and Male Pins | 3 | UL94 V-0 | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 3WK3 A DA | 2 | Combo D-Sub | Gold | Board Lock Shielded | 1 | Signal and Power | 20 A | Board Side (M3) | Solder | Through Hole | Flash | Receptacle Female Sockets and Male Pins | 3 | UL94 V-0 | |||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 3WK3 A DA | 2 | Combo D-Sub | Gold | Board Lock Shielded | 1 | Signal and Power | 10 A | M3 | Solder | Through Hole | Flash | Receptacle Female Sockets and Male Pins | 3 | UL94 V-0 | Nickel Plated Steel | ||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 3WK3 A DA | 2 | Combo D-Sub | Gold | Board Lock Shielded | 1 | Coax Signal | Board Side (4-40) | Solder | Through Hole | Flash | Receptacle Female Sockets and Male Pins | 3 | UL94 V-0 | Nickel Plated Steel |
