ASM201 Series

Catalog

AC/DC CONVERTER 28V 140W

Part	Approval Agency	Power (Watts)	Power (Watts)	Voltage - Isolation	Voltage - Output 1	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Current - Output 1	Number of Outputs	Standard Number	Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts) [Max]	Voltage - Output 1 [custom]
Astrodyne TDI ASM201-280-BNH-PF1	CB CE CSA cTUVus TUV	199 W	140 W	4000 V	28 V	94 %	80 VAC	240 VAC	ITE (Commercial) Medical	5 A	1	60601-1 60950-1 62368-1	Open Frame	-40 °C	85 °C	Standby Output Universal Input	Chassis Mount	101.6 mm	50.8 mm	28.2 mm	4 "	2 in	1.11 in
Astrodyne TDI ASM201-190-BNH-PF1	CB CE CSA cTUVus TUV	200 W	141 W	4000 V	19 V	93 %	80 VAC	240 VAC	ITE (Commercial) Medical	7.4 A	1	60601-1 60950-1 62368-1	Open Frame	-40 °C	85 °C	Standby Output Universal Input	Chassis Mount	101.6 mm	50.8 mm	28.2 mm	4 "	2 in	1.11 in
Astrodyne TDI ASM201-480-BNH-PF1	CB CE CSA cTUVus TUV		139 W	4000 V	48 V	95 %	80 VAC	240 VAC	ITE (Commercial) Medical	2.9 A	1	60601-1 60950-1 62368-1	Open Frame	-40 °C	85 °C	Standby Output Universal Input	Chassis Mount	101.6 mm	50.8 mm	28.2 mm	4 "	2 in	1.11 in

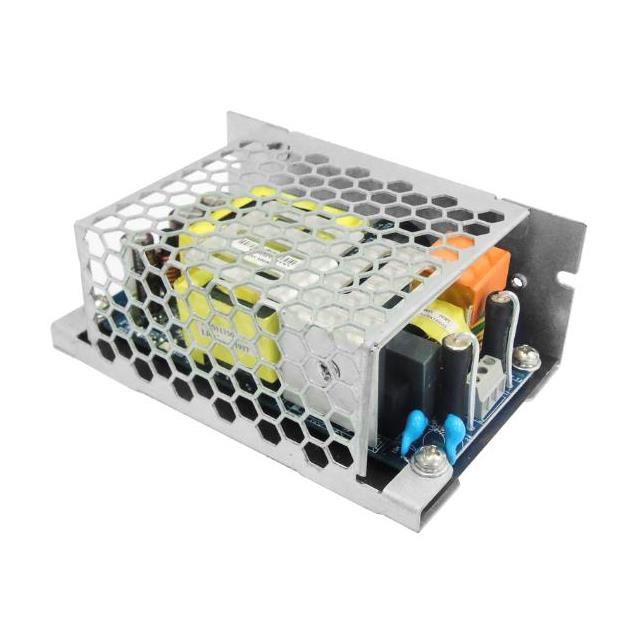

Astrodyne TDI ASM201-120-BET-PF1	CB CSA cTUVus TUV		200 Watts	4000 V	12 V	93 %	80 VAC	264 VAC	ITE (Commercial) Medical	16.7 A	1	60601-1 60950-1 62368-1	Enclosed	-40 C	85 °C	Universal Input	Chassis Mount	105.9 mm	68.1 mm	39.9 mm	4.17 in	2.68 in	1.57 "
Astrodyne TDI ASM201-240-BEH-PF1	CB CE CSA cTUVus TUV	202 W	142 W	4000 V	24 V	94 %	80 VAC	240 VAC	ITE (Commercial) Medical	5.9 A	1	60601-1 60950-1 62368-1	Enclosed	-40 °C	85 °C	Standby Output Universal Input	Chassis Mount	105.9 mm	68.1 mm	39.9 mm	4.17 in	2.68 in	1.57 "
Astrodyne TDI ASM201-540-BEH-PF1	CB CE CSA cTUVus TUV	200 W	140 W	4000 V	54 V	95 %	80 VAC	240 VAC	ITE (Commercial) Medical	2.6 A	1	60601-1 60950-1 62368-1	Enclosed	-40 °C	85 °C	Standby Output Universal Input	Chassis Mount	105.9 mm	68.1 mm	39.9 mm	4.17 in	2.68 in	1.57 "
Astrodyne TDI ASM201-150-BEH-PF1	CB CE CSA cTUVus TUV		141 W	4000 V	15 V	93 %	80 VAC	240 VAC	ITE (Commercial) Medical	9.4 A	1	60601-1 60950-1 62368-1	Enclosed	-40 °C	85 °C	Standby Output Universal Input	Chassis Mount	105.9 mm	68.1 mm	39.9 mm	4.17 in	2.68 in	1.57 "	201 W
Astrodyne TDI ASM201-360-BEH-PF1	CB CE CSA cTUVus TUV	198 W	137 W	4000 V		94 %	80 VAC	240 VAC	ITE (Commercial) Medical	3.8 A	1	60601-1 60950-1 62368-1	Enclosed	-40 °C	85 °C	Standby Output Universal Input	Chassis Mount	105.9 mm	68.1 mm	39.9 mm	4.17 in	2.68 in	1.57 "		36 V
Astrodyne TDI ASM201-360-BNH-PF1	CB CE CSA cTUVus TUV	198 W	137 W	4000 V		94 %	80 VAC	240 VAC	ITE (Commercial) Medical	3.8 A	1	60601-1 60950-1 62368-1	Open Frame	-40 °C	85 °C	Standby Output Universal Input	Chassis Mount	101.6 mm	50.8 mm	28.2 mm	4 "	2 in	1.11 in		36 V
Astrodyne TDI ASM201-150-BET-PF1	CB CSA cTUVus TUV		200 Watts	4000 V	15 V	93 %	80 VAC	264 VAC	ITE (Commercial) Medical	13.4 A	1	60601-1 60950-1 62368-1	Enclosed	-40 C	85 °C	Universal Input	Chassis Mount	105.9 mm	68.1 mm	39.9 mm	4.17 in	2.68 in	1.57 "
