NHD-320240 Series

Catalog

LCD MOD GRAPH 320X240 TRANSFL

Part	Dot Size [x]	Dot Size [y]	Dot Pitch [x]	Dot Pitch [y]	Dot Pixels [x]	Dot Pixels [y]	Display Mode	Viewing Area [x]	Viewing Area [y]	Display Type	Background Color	Graphics Color	Interface	Backlight	Dot Pitch [custom]	Dot Pitch [custom]	Viewing Area [z]	Touchscreen	Controller Type
Newhaven Display Intl NHD-320240WX-GTFH-V#I
Newhaven Display Intl NHD-320240WX-C0-TFH-V#P050

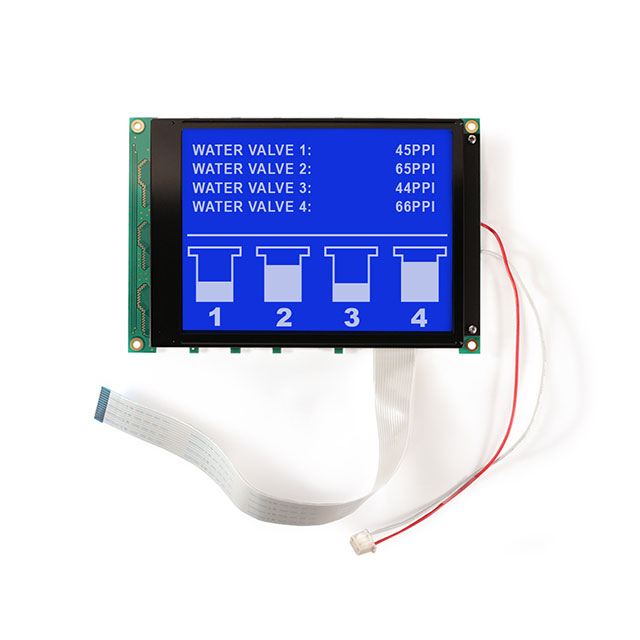

Newhaven Display Intl NHD-320240WG-ATMI-TZ#	0.34 mm	0.34 mm	0.36 mm	0.36 mm	320	240	Transmissive	122 mm	92 mm	STN - Super-Twisted Nematic	Blue	White	Parallel 4-Bit	LED - White

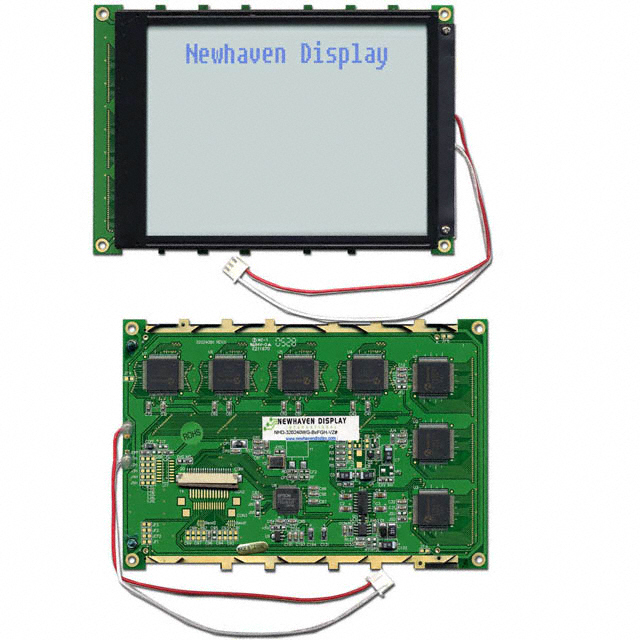

Newhaven Display Intl NHD-320240WG-BXFGH-VZ#	0.34 mm	0.34 mm	0.36 mm	0.36 mm	320	240	Transflective	122 mm	92 mm	STN - Super-Twisted Nematic	White	Gray	8-Bit Parallel	CCFL
Newhaven Display Intl NHD-320240WC-AFCI-NU	0.32 mm	0.36 mm	0.36 mm	0.36 mm	320	240	Transmissive	118.2 mm	89.4 mm	CSTN - Color Super-Twisted Nematic		Blue Green Red	8-Bit Parallel	CCFL

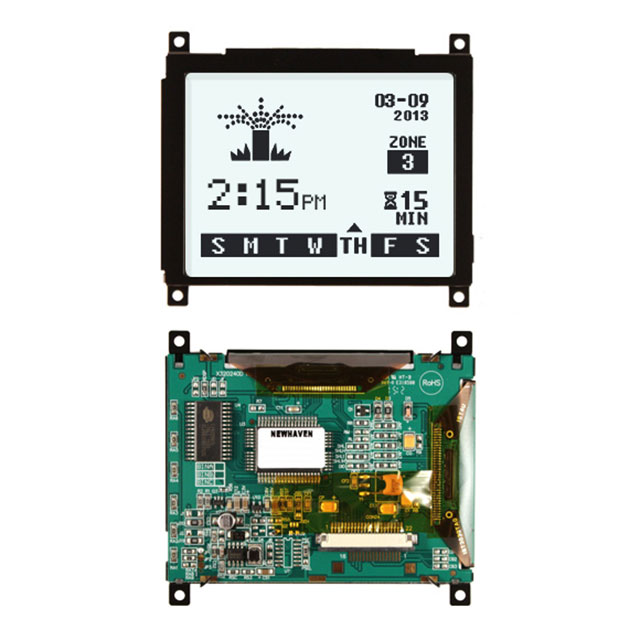

Newhaven Display Intl NHD-320240WX-COTFH-V#I041	0.23 mm	0.23 mm			320	240	Transflective		81.4 mm	FSTN - Film Super-Twisted Nematic	White	Gray	8-Bit Parallel	LED - White	0.24 mm	0.24 mm	61 mm

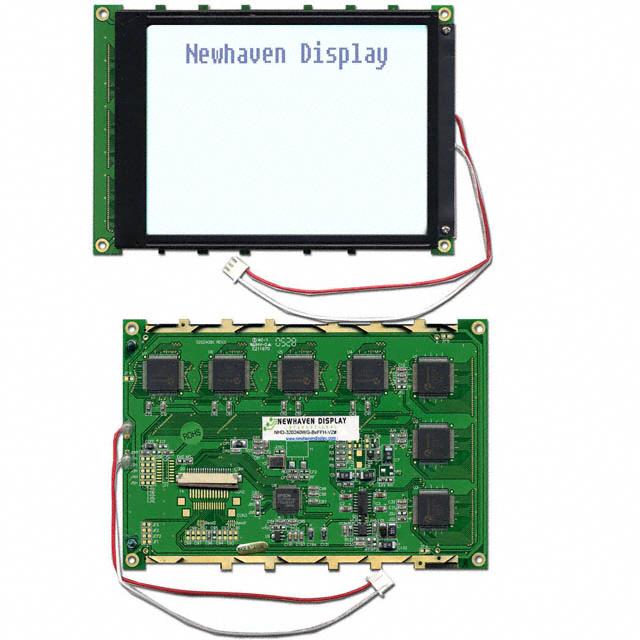

Newhaven Display Intl NHD-320240WG-BXFFH-VZ#	0.34 mm	0.34 mm	0.36 mm	0.36 mm	320	240	Transflective	122 mm	92 mm	FSTN - Film Super-Twisted Nematic	White	Gray	8-Bit Parallel	CCFL

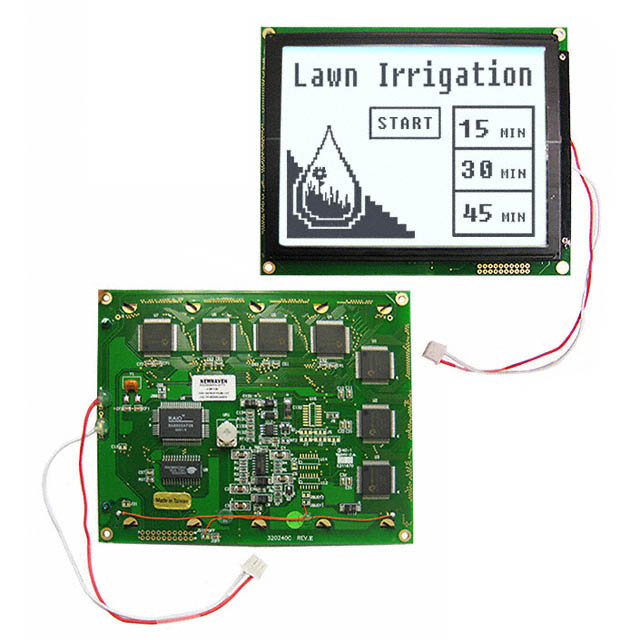

Newhaven Display Intl NHD-320240WG-COTFH-VZ#	0.34 mm	0.34 mm	0.36 mm	0.36 mm	320	240	Transflective			FSTN - Film Super-Twisted Nematic	White	Gray	8-Bit Parallel	LED - White

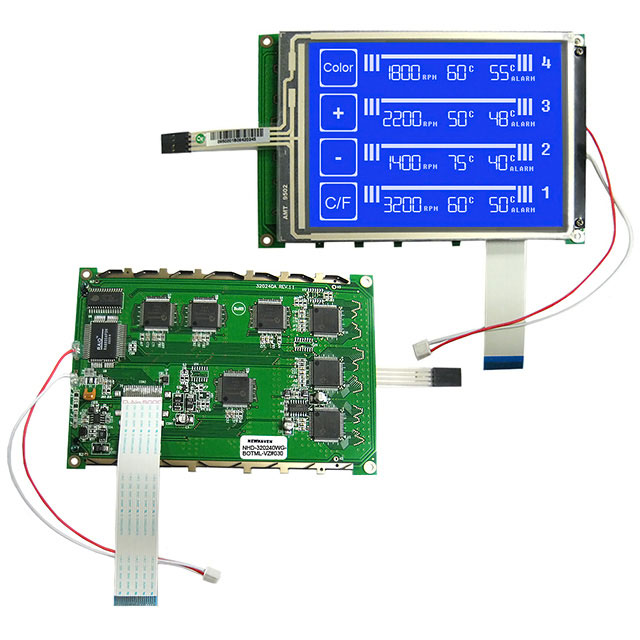

Newhaven Display Intl NHD-320240WG-BOTML-VZ#030	0.34 mm	0.34 mm	0.36 mm	0.36 mm	320	240	Transmissive	122 mm	92 mm	STN - Super-Twisted Nematic	Blue	White	8-Bit Parallel	LED - White				Resistive	RA-8835

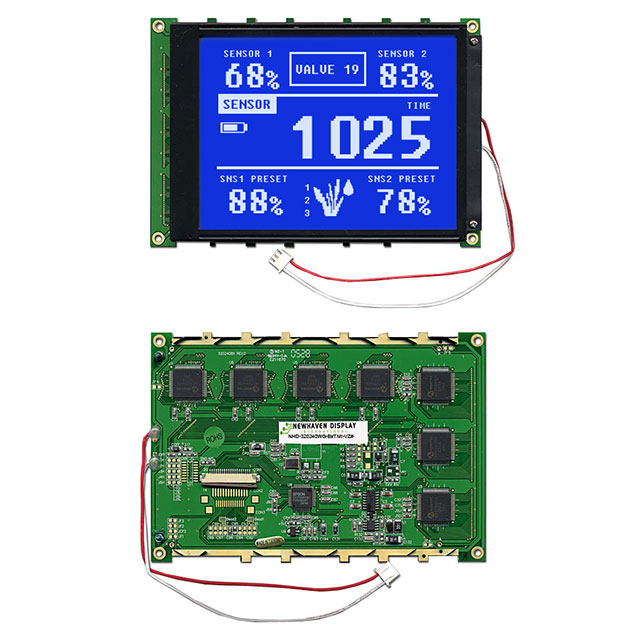

Newhaven Display Intl NHD-320240WG-BXTMI-VZ#	0.34 mm	0.34 mm	0.36 mm	0.36 mm	320	240	Transmissive	122 mm	92 mm	STN - Super-Twisted Nematic	Blue	White	8-Bit Parallel	LED - White
