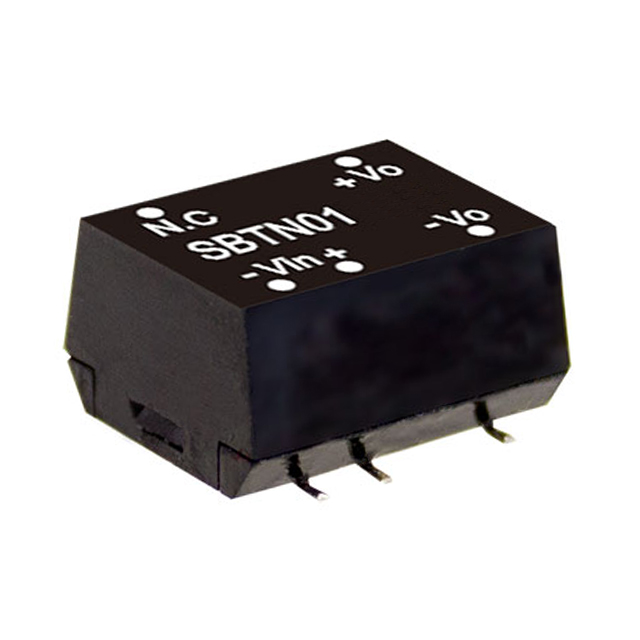

SBTN01 Series

Catalog

DC DC CONVERTER 12V 1W

Part	Voltage - Input (Min) [Min]	Applications	Number of Outputs	Current - Output (Max) [Max]	Features	Type	Voltage - Output 1	Mounting Type	Efficiency	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Input (Max) [Max]
MEAN WELL USA Inc. SBTN01L-12	4.5 V	ITE (Commercial)	1	84 mA	SCP	Isolated Module	12 V	Surface Mount	80 %	8-SMD Module 5 Leads	10.9 mm	7.1 mm	12.9 mm	0.51 "	0.28 "	0.43 in	90 °C	-40 °C	1.5 kV	5.5 V
MEAN WELL USA Inc. SBTN01M-05	10.8 V	ITE (Commercial)	1	200 mA	SCP	Isolated Module	5 V	Surface Mount	79 %	8-SMD Module 5 Leads	10.9 mm	7.1 mm	12.9 mm	0.51 "	0.28 "	0.43 in	90 °C	-40 °C	1.5 kV	13.2 V
MEAN WELL USA Inc. SBTN01N-15	21.6 V	ITE (Commercial)	1	67 mA	SCP	Isolated Module	15 V	Surface Mount	78 %	8-SMD Module 5 Leads	10.9 mm	7.1 mm	12.9 mm	0.51 "	0.28 "	0.43 in	90 °C	-40 °C	1.5 kV	26.4 V
MEAN WELL USA Inc. SBTN01N-12	21.6 V	ITE (Commercial)	1	84 mA	SCP	Isolated Module	12 V	Surface Mount	79 %	8-SMD Module 5 Leads	10.9 mm	7.1 mm	12.9 mm	0.51 "	0.28 "	0.43 in	90 °C	-40 °C	1.5 kV	26.4 V
MEAN WELL USA Inc. SBTN01L-15	4.5 V	ITE (Commercial)	1	67 mA	SCP	Isolated Module	15 V	Surface Mount	79 %	8-SMD Module 5 Leads	10.9 mm	7.1 mm	12.9 mm	0.51 "	0.28 "	0.43 in	90 °C	-40 °C	1.5 kV	5.5 V
