178306 Series

Catalog

CONN HEADER R/A 12POS 3.81MM

Part	Voltage Rating	Material Flammability Rating	Contact Material	Number of Positions Loaded	Insulation Height	Insulation Height	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Pitch - Mating	Pitch - Mating	Mounting Type	Applications	Shrouding	Contact Shape	Contact Type	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Termination	Contact Finish - Mating

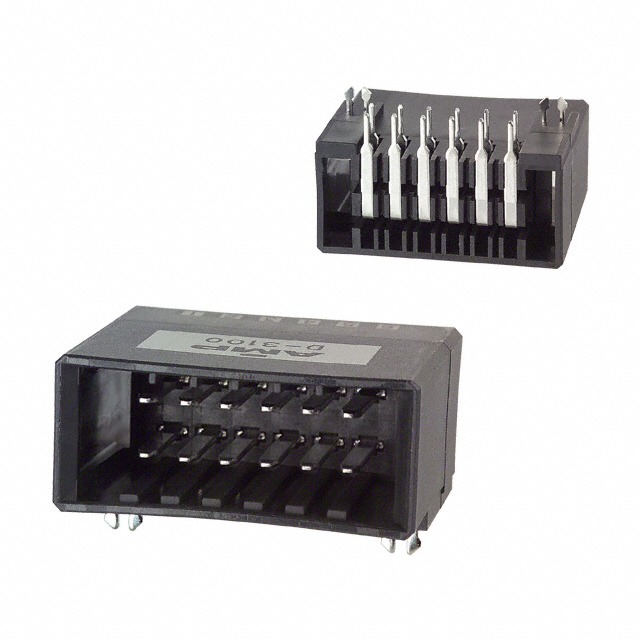

TE Connectivity Raychem Cable Protection 178306-5	250 VDC	UL94 V-0	Copper Alloy	All	14.43 mm	0.568 in	2	0.15 in	3.81 mm	Detent Lock	3.81 mm	0.15 in	Through Hole Right Angle	General Purpose Industrial	Shrouded - 4 Wall	Rectangular	Tab	12	5.08 mm	0.2 "	Tin	Glass Filled Polyester Thermoplastic	78.7 µin	2 µm	Board to Board Cable	Black	105 ░C	-55 °C	Header	Solder

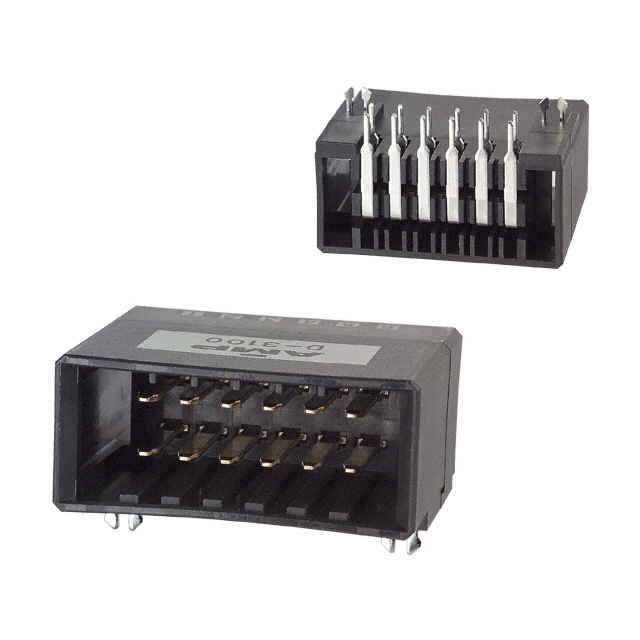

TE Connectivity Raychem Cable Protection 178306-2	250 VDC	UL94 V-0	Copper Alloy	All	14.43 mm	0.568 in	2	0.15 in	3.81 mm	Detent Lock	3.81 mm	0.15 in	Through Hole Right Angle	General Purpose Industrial	Shrouded - 4 Wall	Rectangular	Tab	12	5.08 mm	0.2 "	Tin	Glass Filled Polyester Thermoplastic	15 µin	0.38 µm	Board to Board Cable	Black	105 ░C	-55 °C	Header	Solder	Gold PdNi +Gold
