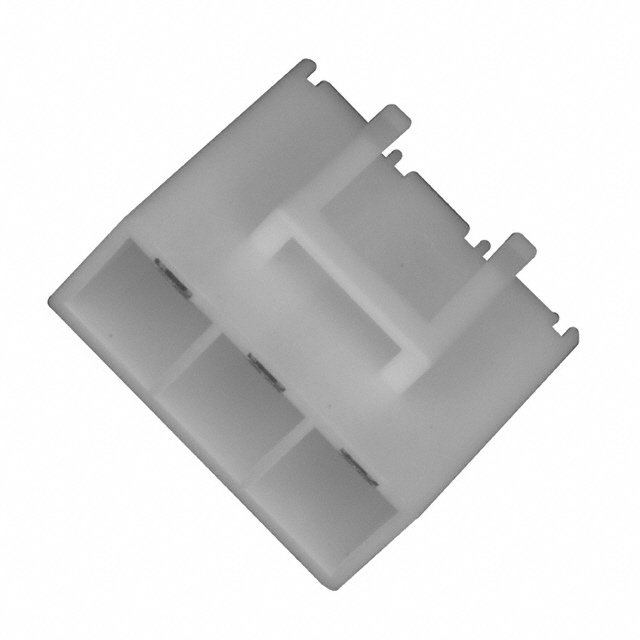

B03P Series
Manufacturer: JST Sales America Inc.
Catalog
CONN HEADER VERT 3POS 6.2MM
| Part | Contact Material | Contact Type | Insulation Color | Insulation Height | Insulation Height | Contact Shape | Mated Stacking Heights | Current Rating (Amps) | Style | Insulation Material | Mounting Type | Contact Finish - Post | Number of Rows | Connector Type | Fastening Type | Shrouding | Termination | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Voltage Rating | Pitch - Mating [x] | Pitch - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Copper Alloy | Male Pin | Natural | 16.4 mm | 0.646 in | Square | 29.2 mm | 20 A | Board to Cable/Wire | Polyamide (PA66) Nylon 6/6 | Through Hole | Tin | 1 | Header | Latch Holder | Shrouded - 4 Wall | Solder | UL94 V-0 | 90 °C | -25 °C | All | 3.6 mm | 0.142 in | 600 V | 6.2 mm | 0.244 in |
