LM4836 Series

2-W, stereo, analog input Class-AB audio amplifier

Catalog

2-W, stereo, analog input Class-AB audio amplifier

Part	Max Output Power x Channels @ Load	Supplier Device Package	Mounting Type	Type	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [y]	Package / Case [custom]	Package / Case [custom]

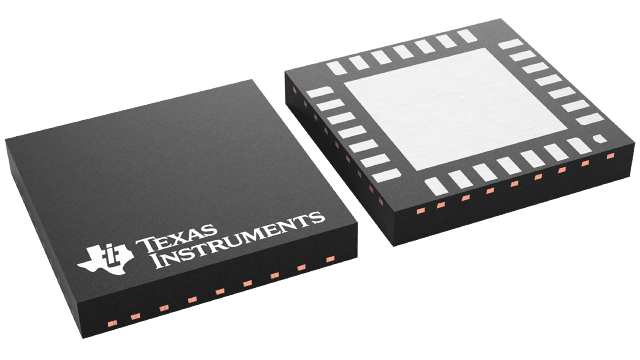

Texas Instruments LM4836LQ/NOPB	2.2 W 95 mW	28-WQFN (5x5)	Surface Mount	Class AB	2-Channel (Stereo) with Stereo Headphones	2.7 V	5.5 V	28-WFQFN Exposed Pad	Bass Boost Depop Input Multiplexer Mute Shutdown Thermal Protection Volume Control	85 °C	-40 °C
Texas Instruments LM4836MTX/NOPB	2.2 W 95 mW	28-TSSOP	Surface Mount	Class AB	2-Channel (Stereo) with Stereo Headphones	2.7 V	5.5 V	28-TSSOP	Bass Boost Depop Input Multiplexer Mute Shutdown Thermal Protection Volume Control	85 °C	-40 °C	0.173 in	4.4 mm
Texas Instruments LM4836MTE/NOPB	2.2 W 95 mW	28-HTSSOP	Surface Mount	Class AB	2-Channel (Stereo) with Stereo Headphones	2.7 V	5.5 V	28-PowerTSSOP	Bass Boost Depop Input Multiplexer Mute Shutdown Thermal Protection Volume Control	85 °C	-40 °C			4.4 mm	0.173 "
Texas Instruments LM4836MTEX/NOPB	2.2 W 95 mW	28-HTSSOP	Surface Mount	Class AB	2-Channel (Stereo) with Stereo Headphones	2.7 V	5.5 V	28-PowerTSSOP	Bass Boost Depop Input Multiplexer Mute Shutdown Thermal Protection Volume Control	85 °C	-40 °C			4.4 mm	0.173 "

Catalog

2-W, stereo, analog input Class-AB audio amplifier

Key Features

• PC98 and PC99 CompliantDC Volume Control InterfaceInput MuxSystem Beep DetectStereo Switchable Bridged/Single-Ended Power AmplifiersSelectable Internal/External Gain and Bass Boost Configurable"Click and Pop" Suppression CircuitryThermal Shutdown Protection CircuitryKey SpecificationsPOat 1% THD+NInto 3Ω (LM4836LQ, LM4836MTE) 2.2 W (typ)Into 4Ω (LM4836LQ, LM4836MTE) 2.0 W (typ)Into 8Ω (LM4836) 1.1 W (typ)Single-Ended Mode - THD+N at 85 mW Into 32Ω 1.0% (typ)Shutdown Current 0.2µA (typ)All trademarks are the property of their respective owners.PC98 and PC99 CompliantDC Volume Control InterfaceInput MuxSystem Beep DetectStereo Switchable Bridged/Single-Ended Power AmplifiersSelectable Internal/External Gain and Bass Boost Configurable"Click and Pop" Suppression CircuitryThermal Shutdown Protection CircuitryKey SpecificationsPOat 1% THD+NInto 3Ω (LM4836LQ, LM4836MTE) 2.2 W (typ)Into 4Ω (LM4836LQ, LM4836MTE) 2.0 W (typ)Into 8Ω (LM4836) 1.1 W (typ)Single-Ended Mode - THD+N at 85 mW Into 32Ω 1.0% (typ)Shutdown Current 0.2µA (typ)All trademarks are the property of their respective owners.

Description

The LM4836 is a monolithic integrated circuit that provides DC volume control, and stereo bridged audio power amplifiers capable of producing 2W into 4Ω with less than 1.0% THD+N, or 2.2W into 3Ω with less than 1.0% THD+N (see Notes below). Boomer audio integrated circuits were designed specifically to provide high quality audio while requiring a minimum amount of external components. The LM4836 incorporates a DC volume control, stereo bridged audio power amplifiers, selectable gain or bass boost, and an input mux making it optimally suited for multimedia monitors, portable radios, desktop, and portable computer applications. The LM4836 features an externally controlled, low-power consumption shutdown mode, and both a power amplifier and headphone mute for maximum system flexibility and performance. Note:When properly mounted to the circuit board, the LM4836LQ and LM4836MTE will deliver 2W into 4Ω. The LM4836MT will deliver 1.1W into 8Ω. See the section for LM4836LQ and LM4836MTE usage information. Note:An LM4836LQ and LM4836MTE that have been properly mounted to the circuit board and forced-air cooled will deliver 2.2W into 3Ω. The LM4836 is a monolithic integrated circuit that provides DC volume control, and stereo bridged audio power amplifiers capable of producing 2W into 4Ω with less than 1.0% THD+N, or 2.2W into 3Ω with less than 1.0% THD+N (see Notes below). Boomer audio integrated circuits were designed specifically to provide high quality audio while requiring a minimum amount of external components. The LM4836 incorporates a DC volume control, stereo bridged audio power amplifiers, selectable gain or bass boost, and an input mux making it optimally suited for multimedia monitors, portable radios, desktop, and portable computer applications. The LM4836 features an externally controlled, low-power consumption shutdown mode, and both a power amplifier and headphone mute for maximum system flexibility and performance. Note:When properly mounted to the circuit board, the LM4836LQ and LM4836MTE will deliver 2W into 4Ω. The LM4836MT will deliver 1.1W into 8Ω. See the section for LM4836LQ and LM4836MTE usage information. Note:An LM4836LQ and LM4836MTE that have been properly mounted to the circuit board and forced-air cooled will deliver 2.2W into 3Ω.
