206838 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

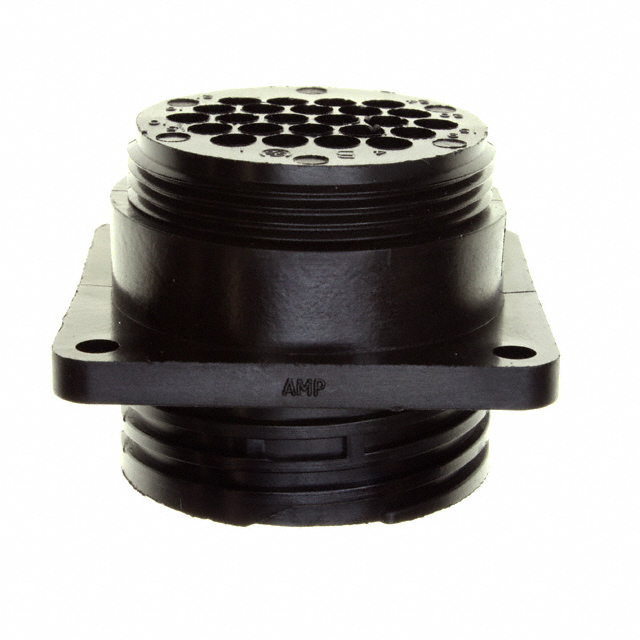

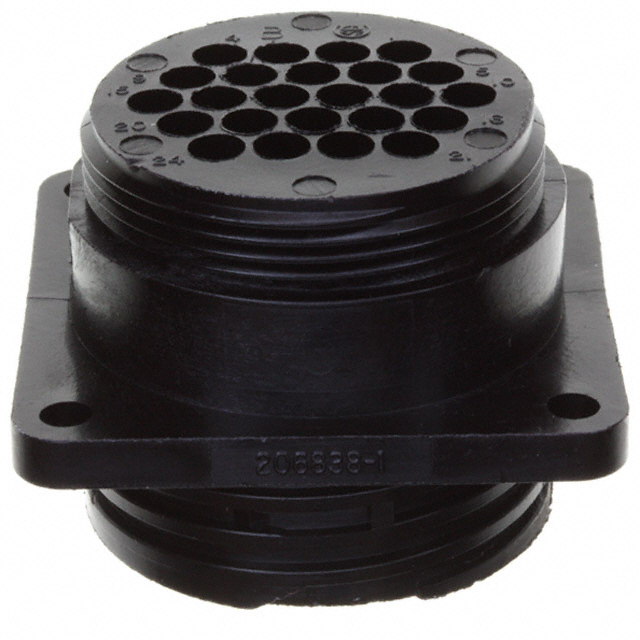

CONN RCPT HSNG MALE 24POS PNL MT
| Part | Shielding | Contact Size | Connector Type | Material Flammability Rating | Insert Material | Note | Orientation | Mounting Feature | Housing Color | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Type | Contact Type | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Unshielded | 16 | Receptacle Housing | UL94 V-0 | Thermoplastic | Contacts Not Included | A | Flange | Black | 24 | 23 | For Male Pins | Crimp | Environment Resistant | 105 ░C | -55 °C | 24 | Circular |
 TE Connectivity Raychem Cable Protection | Unshielded | 16 | Receptacle Housing | UL94 V-0 | Thermoplastic | Contacts Not Included | A | Flange | Black | 24 | 23 | For Male Pins | Crimp | 105 ░C | -55 °C | 24 | Circular |
