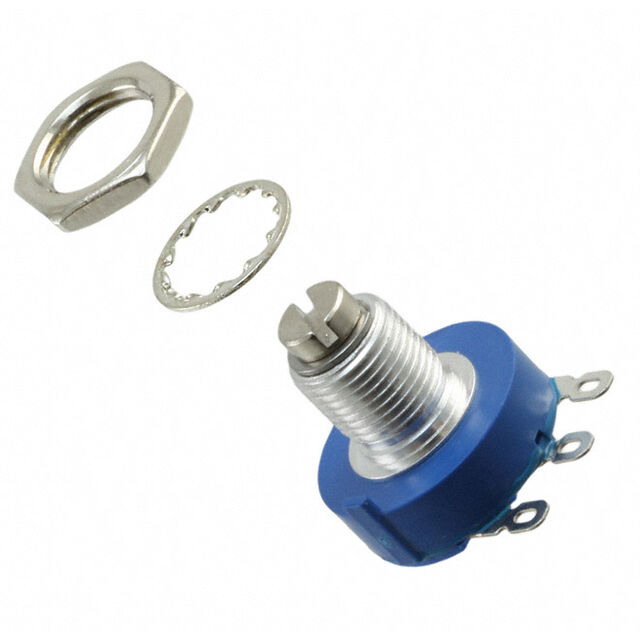

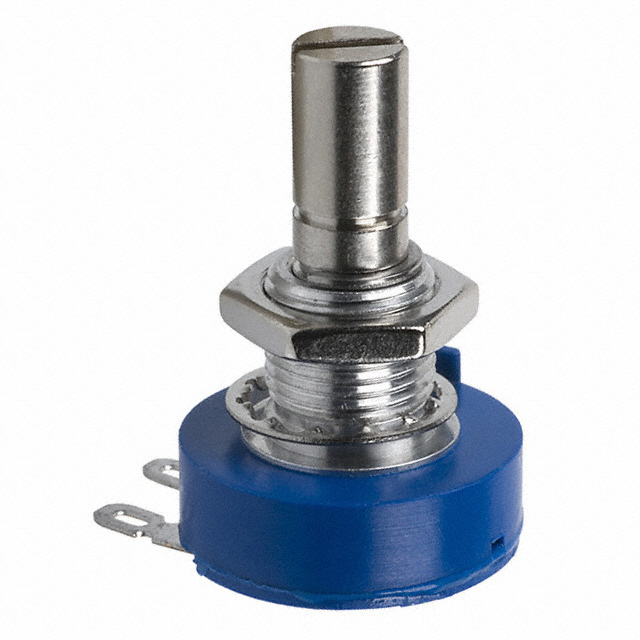

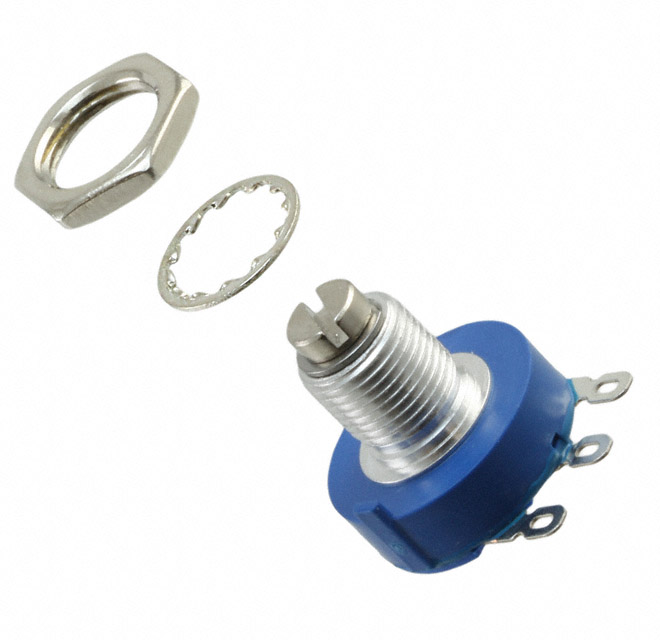

3852A Series
Manufacturer: Bourns Inc.
Beta
⌘K
POT 10K OHM 2W CERMET LINEAR
| Part | Tolerance | Rotation | Termination Style | Actuator Type | Resistance (Ohms) | Power (Watts) | Adjustment Type | Number of Turns | Built in Switch | Bushing Thread | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Actuator Length [x] | Actuator Length [x] | Resistive Material | Number of Gangs | Taper | Temperature Coefficient | Size - Body [diameter] | Size - Body [diameter] | Mounting Type | Resistance (Ohms) [custom] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

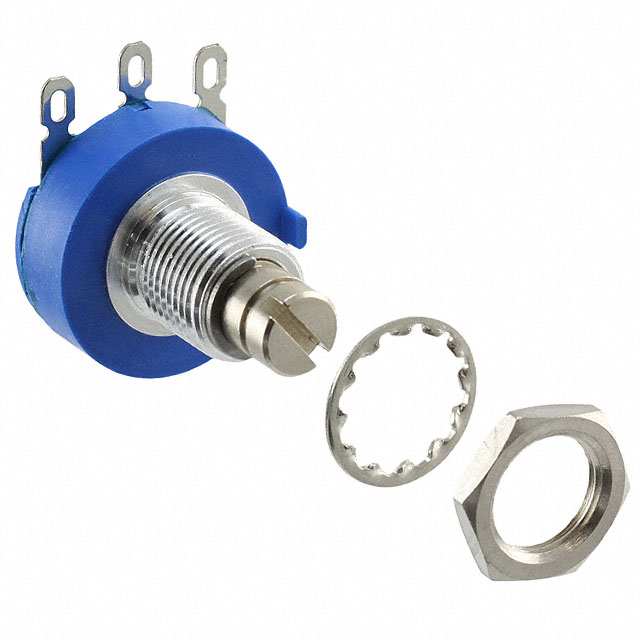

 Bourns Inc. | 10 % | 280 ° | Solder Lug | Slotted | 10k | 2 W | User Defined | 1 | None | 3/8-32 | 6.35 mm | 0.25 in | 12.7 mm | 0.5 in | Cermet | 1 | Linear | 150 ppm/°C | 19.05 mm | 0.75 " | Panel Mount | ||

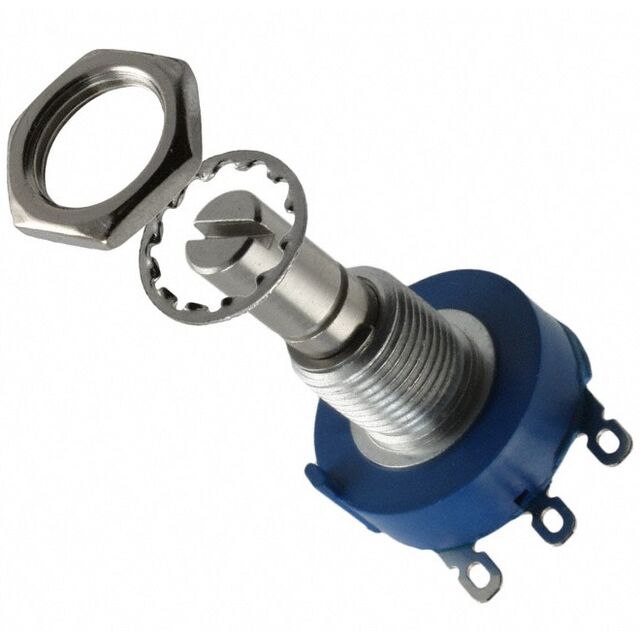

 Bourns Inc. | 10 % | 280 ° | Solder Lug | Slotted | 1k | 2 W | User Defined | 1 | None | 3/8-32 | 6.35 mm | 0.25 in | 15.88 mm | 0.625 in | Cermet | 1 | Linear | 150 ppm/°C | 19.05 mm | 0.75 " | Panel Mount | ||

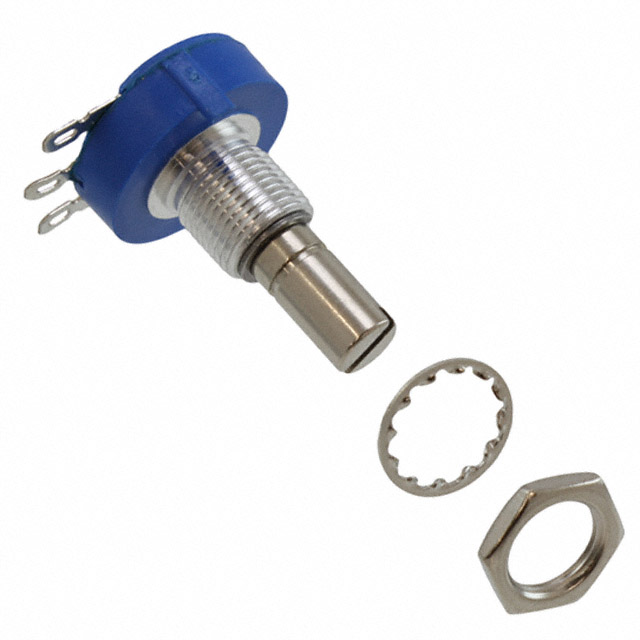

 Bourns Inc. | 10 % | 280 ° | Solder Lug | Slotted | 2 W | User Defined | 1 | None | 3/8-32 | 6.35 mm | 0.25 in | 22.23 mm | 0.875 in | Cermet | 1 | Linear | 150 ppm/°C | 19.05 mm | 0.75 " | Panel Mount | 2.5 kOhms | ||
 Bourns Inc. | 10 % | 280 ° | Solder Lug | Slotted | 1k | 2 W | User Defined | 1 | None | 3/8-32 | 6.35 mm | 0.25 in | 12.7 mm | 0.5 in | Cermet | 1 | Linear | 150 ppm/°C | 19.05 mm | 0.75 " | Panel Mount | ||

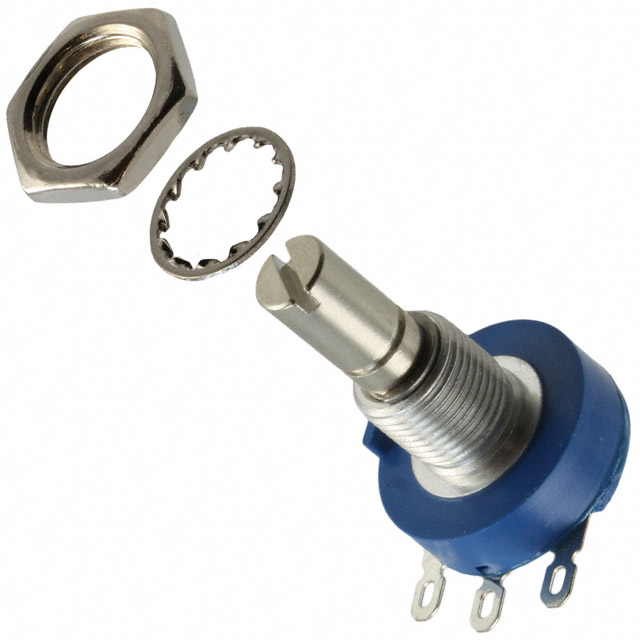

 Bourns Inc. | 10 % | 280 ° | Solder Lug | Slotted | 2 W | User Defined | 1 | None | 3/8-32 | 6.35 mm | 0.25 in | 22.23 mm | 0.875 in | Cermet | 1 | Linear | 150 ppm/°C | 19.05 mm | 0.75 " | Panel Mount | 5 kOhms | ||

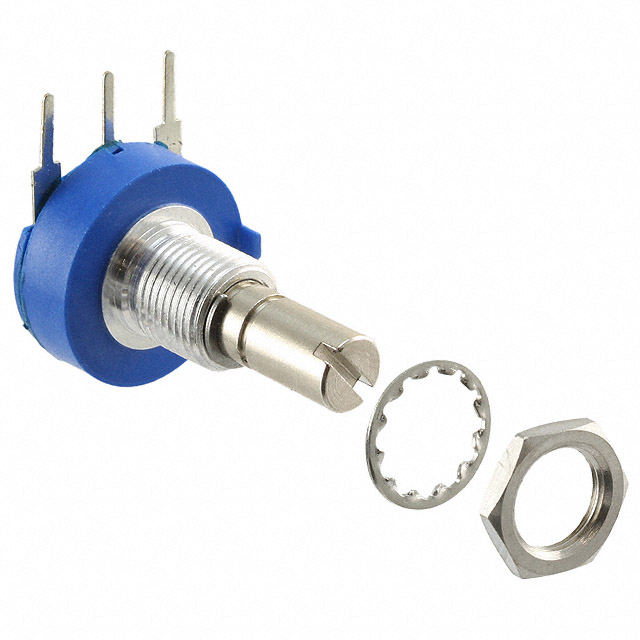

 Bourns Inc. | 10 % | 280 ° | PC Pins | Slotted | 10k | 2 W | Side Adjustment | 1 | None | 3/8-32 | 6.35 mm | 0.25 in | 22.23 mm | 0.875 in | Cermet | 1 | Linear | 150 ppm/°C | 19.05 mm | 0.75 " | Panel Mount | ||
 Bourns Inc. | 10 % | 280 ° | Solder Lug | Slotted | 1k | 2 W | User Defined | 1 | None | 3/8-32 | 6.35 mm | 0.25 in | 22.23 mm | 0.875 in | Cermet | 1 | Linear | 150 ppm/°C | 19.05 mm | 0.75 " | Panel Mount | ||

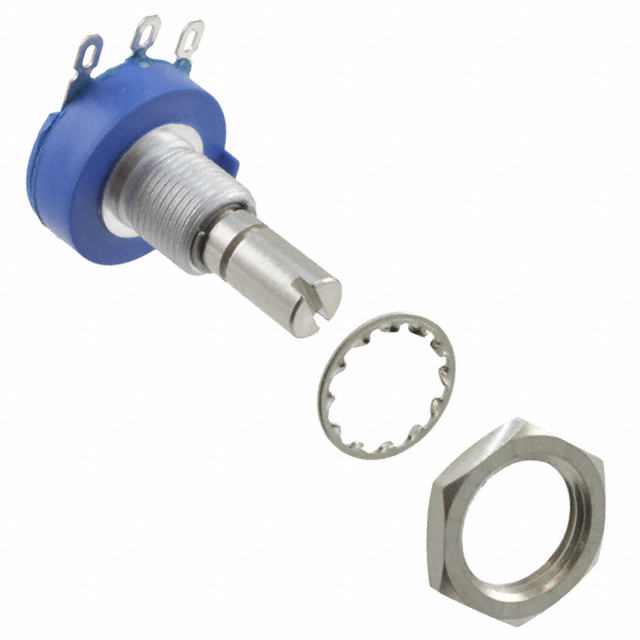

 Bourns Inc. | 10 % | 280 ° | Solder Lug | Slotted | 2 W | User Defined | 1 | None | 3/8-32 | 6.35 mm | 0.25 in | 22.23 mm | 0.875 in | Cermet | 1 | Linear | 150 ppm/°C | 19.05 mm | 0.75 " | Panel Mount | 250000 Ohms | ||

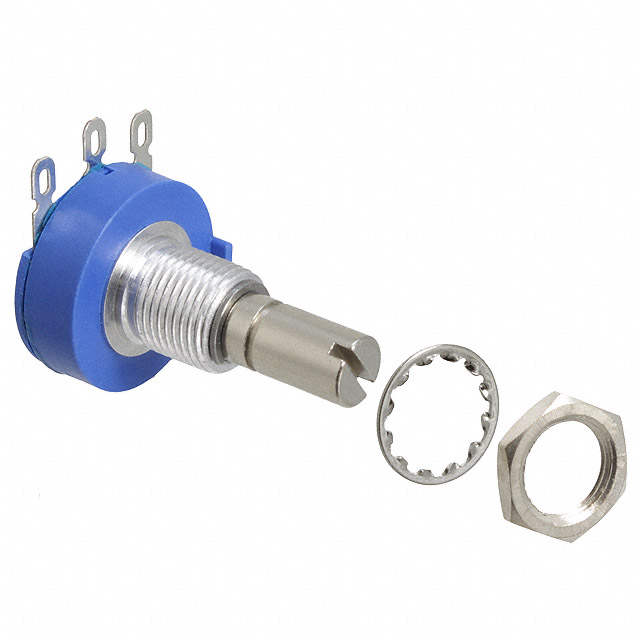

 Bourns Inc. | 10 % | 280 ° | Solder Lug | Slotted | 2 W | User Defined | 1 | None | 3/8-32 | 6.35 mm | 0.25 in | 12.7 mm | 0.5 in | Cermet | 1 | Linear | 150 ppm/°C | 19.05 mm | 0.75 " | Panel Mount | 50 kOhms | ||
Bourns Inc. | 10 % | 280 ° | PC Pins | Slotted | 10k | 2 W | Side Adjustment | 1 | None | 3/8-32 | 6.35 mm | 0.25 in | 12.7 mm | 0.5 in | Cermet | 1 | Linear | 150 ppm/°C | 19.05 mm | 0.75 " | Panel Mount |
