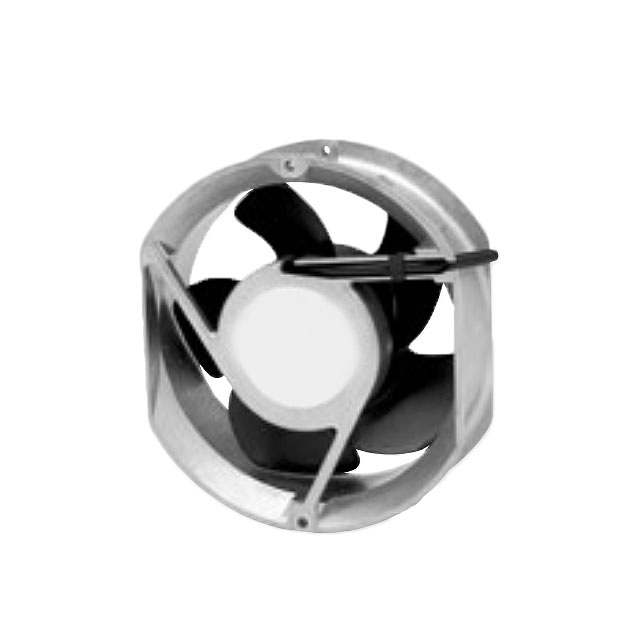

109E5724 Series

Catalog

FAN AXIAL 172X51MM 24VDC WIRE

Part	Material - Blade	Lifetime @ Temp.	Material - Frame	Current Rating (Amps)	Width [x]	Weight	Weight	Bearing Type	Air Flow	Air Flow	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Voltage - Rated	Fan Type	Approval Agency	Features	Power (Watts)	Noise	Static Pressure	Static Pressure	RPM
Sanyo Denki America Inc. 109E5724H501	Plastic	40000 Hrs	Aluminum	580 mA	51 mm	1.7 lbs	760 g	Ball	6.33 m³/min	226 CFM	Rectangular/Rounded	150 mm	172 mm	-20 ░C	70 °C	3 Wire Leads	24 VDC	Tubeaxial	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	13.92 W	52 dB	0.551 in H2O	137.2 Pa
Sanyo Denki America Inc. 109E5724H5D01	Plastic	40000 Hrs	Aluminum	580 mA	51 mm	1.7 lbs	760 g	Ball	6.33 m³/min	226 CFM	Rectangular/Rounded	150 mm	172 mm	-20 ░C	70 °C	3 Wire Leads	24 VDC	Tubeaxial	CSA TUV UL	Locked Rotor Sensor	13.92 W	52 dB	0.551 in H2O	137.2 Pa
Sanyo Denki America Inc. 109E5724H5J01	Plastic		Aluminum		51 mm	1.7 lbs	760 g	Ball			Rectangular/Rounded	150 mm	172 mm			3 Wire Leads	24 VDC	Tubeaxial		Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109E5724C5D01	Plastic	40000 Hrs	Aluminum	2.3 A	51 mm	1.7 lbs	760 g	Ball	9.8 m³/min	350 CFM	Rectangular/Rounded	150 mm	172 mm	-20 ░C	70 °C	3 Wire Leads	24 VDC	Tubeaxial	CSA TUV UL	Locked Rotor Sensor	55.2 W		1.237 in H2O	308 Pa	4800 RPM

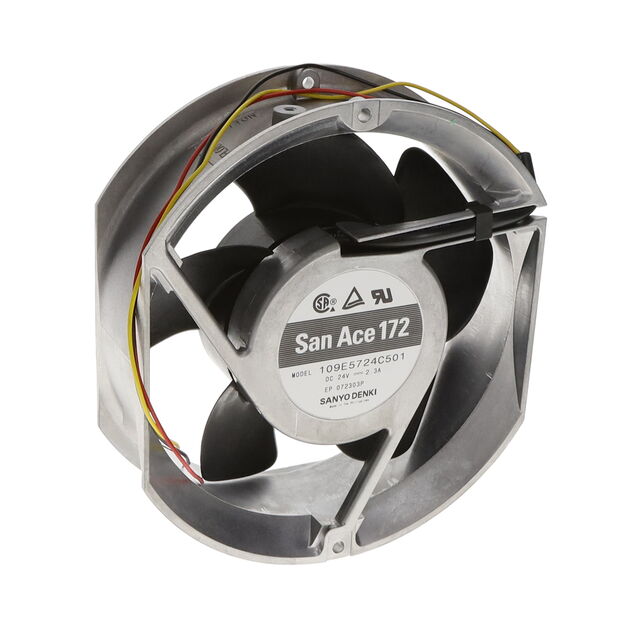

Sanyo Denki America Inc. 109E5724C501	Plastic	40000 Hrs	Aluminum	2.3 A	51 mm	1.7 lbs	760 g	Ball	9.8 m³/min	350 CFM	Rectangular/Rounded	150 mm	172 mm	-20 ░C	70 °C	3 Wire Leads	24 VDC	Tubeaxial	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	55.2 W		1.237 in H2O	308 Pa	4800 RPM
Sanyo Denki America Inc. 109E5724F501	Plastic	40000 Hrs	Aluminum	0.35 A	51 mm	1.7 lbs	760 g	Ball	5.04 mł/min	180 CFM	Rectangular/Rounded	150 mm	172 mm	-20 ░C	70 °C	3 Wire Leads	24 VDC	Tubeaxial	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	8.4 W	47 dB	0.38 in H2O	94.6 Pa	2500 RPM
