T350 Series

Manufacturer: KEMET

Catalog

TANTALUM CAPACITORS - SOLID LEADED 35V 12UF 10%

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension	Mounting Type	Voltage - Rated	Lead Spacing	Lead Spacing	Type	Tolerance	Manufacturer Size Code	Package / Case	Capacitance	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET T350J126K035AS	General Purpose	-55 C	125 °C	0.5 in	12.7 mm	0.331 in	8.4 mm	Through Hole	35 V	0.2 in	5.08 mm	Conformal Coated	10 %	J	Disc Radial	12 µF
KEMET T350F156K020AT7301	General Purpose	-55 C	125 °C			0.236 in		Through Hole	20 V	0.1 in	2.54 mm	Conformal Coated	10 %	F	Disc Radial	15 µF	2.3 Ohm	6 mm
KEMET T350H107K006AT	General Purpose	-55 C	125 °C	0.402 in	10.2 mm	0.299 in		Through Hole	6.3 VDC	0.1 in	2.54 mm	Conformal Coated	10 %	H	Radial	100 µF	1.6 Ohm	7.6 mm
KEMET T350C685M016AS	General Purpose	-55 C	125 °C			0.197 in		Through Hole	16 V	0.1 in	2.54 mm	Conformal Coated	20 %		Disc Radial	6.8 µF	4 Ohm	5 mm	8.4 mm	0.331 in
KEMET T350J336K020AS	General Purpose	-55 C	125 °C	0.5 in	12.7 mm	0.331 in	8.4 mm	Through Hole	20 V	0.2 in	5.08 mm	Conformal Coated	10 %	J	Disc Radial	33 ÁF	1.4 Ohm
KEMET T350A334M035AT	General Purpose	-55 C	125 °C	0.28 in	7.1 mm	0.177 "		Through Hole	35 V	0.1 in	2.54 mm	Conformal Coated	20 %	A	Radial	0.33 µF	15 Ohm	4.5 mm
KEMET T350A104K035AT7303	General Purpose	-55 C	125 °C	0.28 in	7.1 mm	0.177 "		Through Hole	35 V	0.1 in	2.54 mm	Conformal Coated	10 %	A	Disc Radial	100000 pF	26 Ohm	4.5 mm

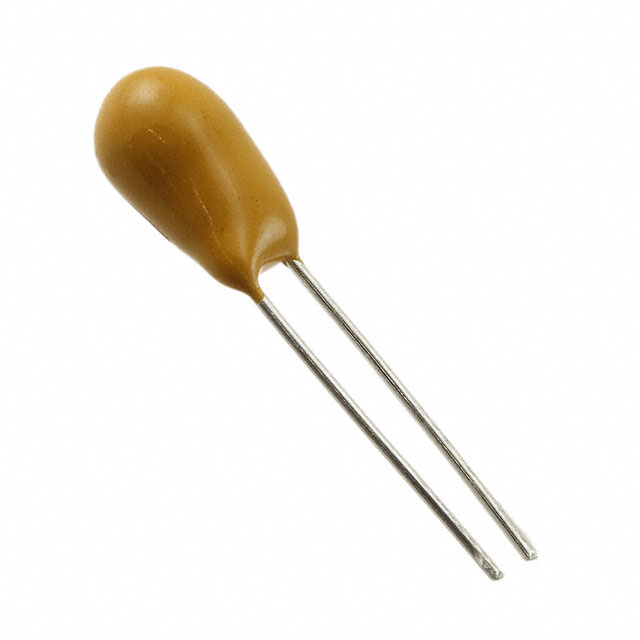

KEMET T350F226K016AT7301	General Purpose	-55 C	125 °C			0.236 in		Through Hole	16 V	0.1 in	2.54 mm	Conformal Coated	10 %	F	Radial	22 µF	2 Ohms	6 mm
KEMET T350A224K035AT	General Purpose	-55 C	125 °C	0.28 in	7.1 mm	0.177 "		Through Hole	35 V	0.1 in	2.54 mm	Conformal Coated	10 %	A	Radial	0.22 µF	17 Ohm	4.5 mm
KEMET T350F335K050AS	General Purpose	-55 C	125 °C			0.236 in		Through Hole	50 VDC	0.1 in	2.54 mm	Conformal Coated	10 %	F	Radial	3.3 µF	3 Ohm	6 mm
