2004-13 Series

Catalog

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 20 AWG, 10 AWG, 6 MM², CLAMP, 32 A

Part	Material - Insulation	Stripping Length [Min]	Stripping Length [Max]	Current - UL	Number of Levels	Voltage - UL	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Type	Terminal - Width [y]	Color	Termination Style	Current - IEC	Voltage - IEC	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	For Use With/Related Products

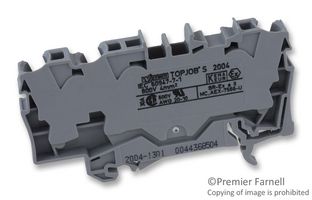

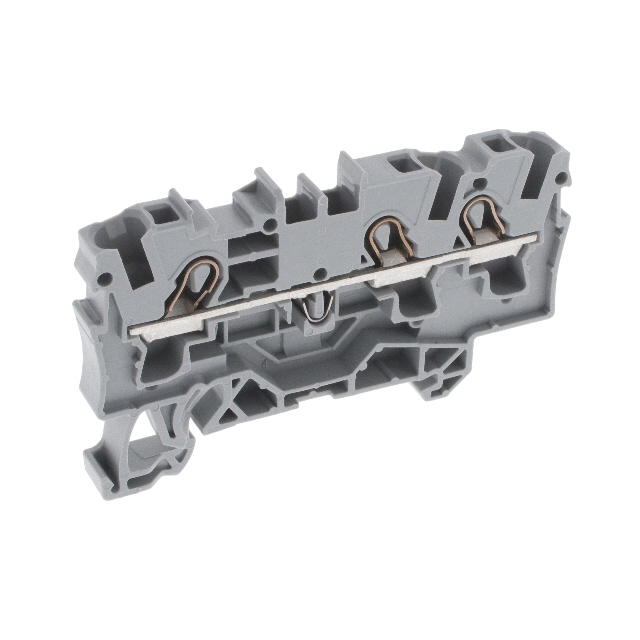

WAGO Corporation 2004-1301	Nylon 6/6 Polyamide (PA66)	11 mm	13 mm	30 A	1	600 V	6 mm²	1.5 mm²	Feed Through	6.2 mm	Gray	Push In Spring	41 A	800 V	14 AWG	10 AWG
WAGO Corporation 2004-1392									End Plate								TOPJOB®S Series

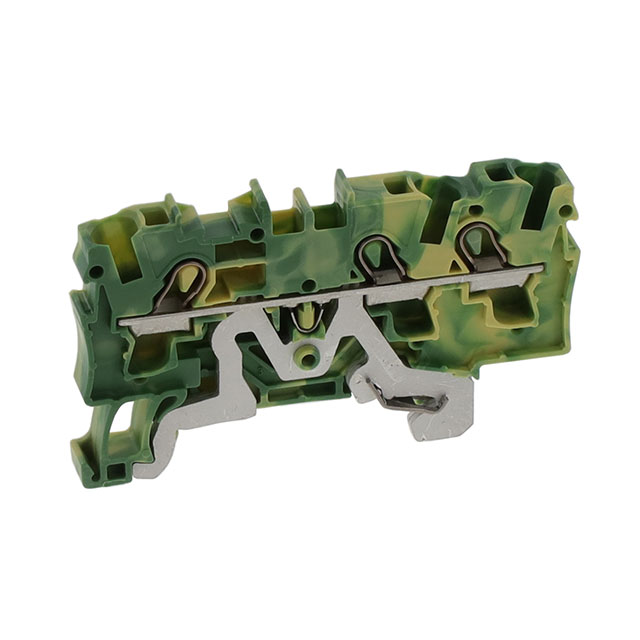

WAGO Corporation 2004-1307	Nylon 6/6 Polyamide (PA66)	11 mm	13 mm		1		6 mm²	1.5 mm²	Ground Earth	6.2 mm	Green Yellow	Push In Spring			14 AWG	10 AWG
WAGO Corporation 2004-1391									End Plate		Gray						TOPJOB®S Series
