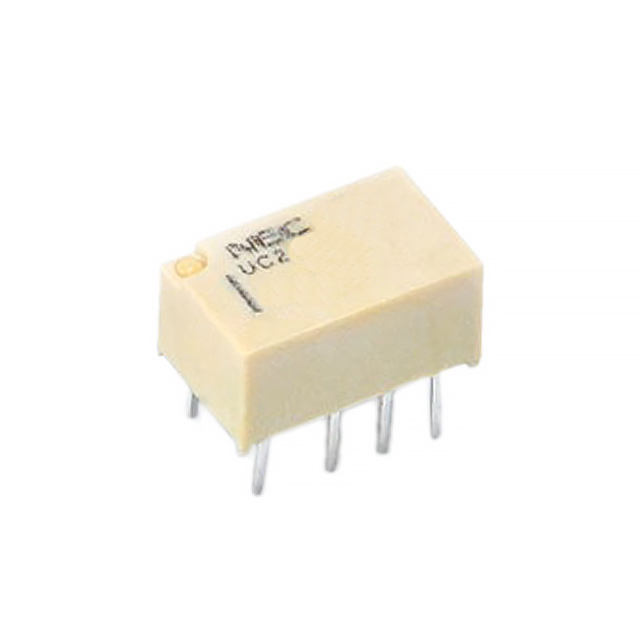

UC2-4.5 Series
Manufacturer: KEMET
Beta
⌘K
RELAY GEN PURPOSE DPDT 1A 4.5V
| Part | Coil Resistance | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Switching Voltage [Max] | Contact Rating (Current) | Contact Material | Coil Voltage | Contact Form | Relay Type | Coil Type | Coil Current | Must Release Voltage | Mounting Type | Termination Style | Approval Agency | Release Time | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 202.5 Ohms | 3.6 VDC | 70 °C | -40 C | 2 ms | 220 VDC 250 VAC | 1 A | Gold Alloy Silver Alloy | 4.5 VDC | DPDT (2 Form C) | General Purpose | Non Latching | 22.2 mA | 0.45 VDC | Through Hole | PC Pin | CSA TUV UL | 1 ms | 220 W 250 VA |
