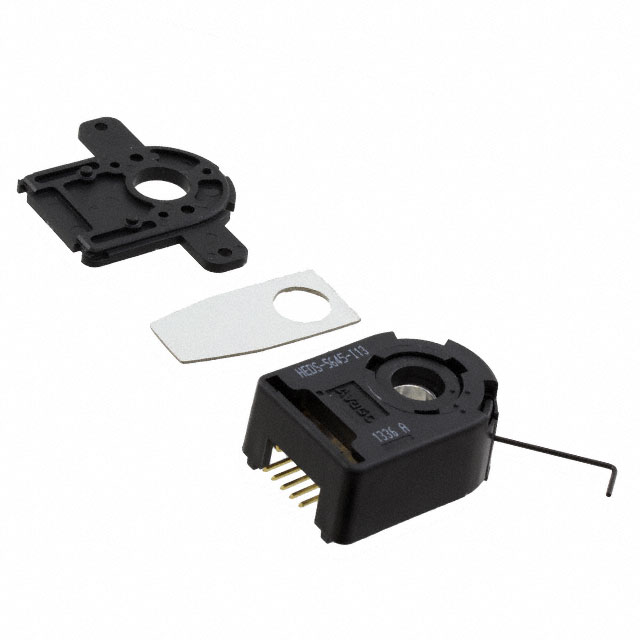

HEDS-5645 Series
Manufacturer: Broadcom Limited
Beta
⌘K
ROTARY ENCODER OPTICAL 500PPR
| Part | Encoder Type | Mounting Type | Pulses per Revolution | Orientation | Detent | Built in Switch | Actuator Type | Termination Style | Output Type |
|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Optical | Chassis Mount Motors | 500 | Vertical | 1/4" Open Center | Terminal Pins | Quadrature with Index (Incremental) | ||
Broadcom Limited | Optical | Chassis Mount Motors | 500 | Vertical | 6mm Open Center | Terminal Pins | Quadrature with Index (Incremental) | ||
 Broadcom Limited | Optical | Chassis Mount Motors | 512 | Vertical | 8mm Open Center | Terminal Pins | Quadrature with Index (Incremental) |
