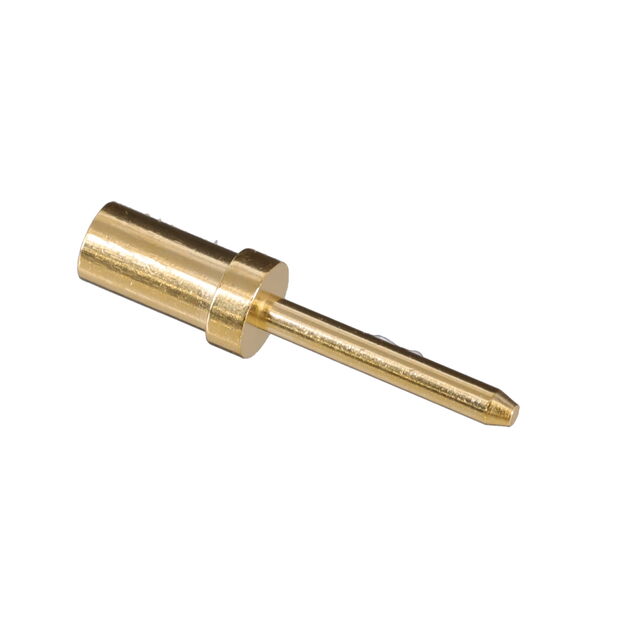

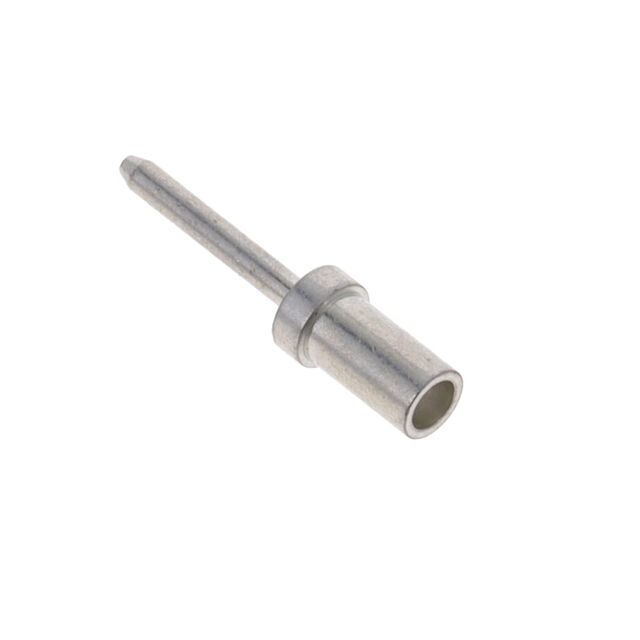

3230-4 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Terminal Type | Length - Overall | Length - Overall | Mounting Type | Length - Above Flange [x] | Length - Above Flange [x] | Termination | Terminal Style | Contact Finish | Insulation | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Board Thickness | Board Thickness | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | 0.09 in | 2.29 mm | PC Pin | 0.483 in | 12.27 mm | Through Hole | 7.32 mm | 0.288 in | Swage | Single End | Tin | Non-Insulated | 200 Áin | 5.08 Ám | 0.155 " | 3.94 mm | 0.094 in | 2.39 mm | 2.77 mm | 0.109 in | 3.18 mm | 0.125 " | Brass Alloy |
Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | PC Pin | 0.483 in | 12.27 mm | Through Hole | 7.32 mm | 0.288 in | Swage | Single End | Gold | Non-Insulated | 50 µin | 1.27 µm | 0.155 " | 3.94 mm | 0.094 in | 2.39 mm | 2.77 mm | 0.109 in | 3.18 mm | 0.125 " | Brass Alloy | ||
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | PC Pin | 0.483 in | 12.27 mm | Through Hole | 7.32 mm | 0.288 in | Swage | Single End | Gold | Non-Insulated | 20 µin | 0.51 µm | 0.155 " | 3.94 mm | 0.094 in | 2.39 mm | 2.77 mm | 0.109 in | 3.18 mm | 0.125 " | Brass Alloy | ||
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | PC Pin | 0.483 in | 12.27 mm | Through Hole | 7.32 mm | 0.288 in | Swage | Single End | Tin-Lead | Non-Insulated | 200 Áin | 5.08 Ám | 0.155 " | 3.94 mm | 0.094 in | 2.39 mm | 2.77 mm | 0.109 in | 3.18 mm | 0.125 " | Brass Alloy | ||
Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | PC Pin | 0.483 in | 12.27 mm | Through Hole | 7.32 mm | 0.288 in | Swage | Single End | Gold | Non-Insulated | 10 Áin | 0.25 Ám | 0.155 " | 3.94 mm | 0.094 in | 2.39 mm | 2.77 mm | 0.109 in | 3.18 mm | 0.125 " | Brass Alloy |
