MB2461S Series

Catalog

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Part	Electrical Life	Mechanical Life	Panel Cutout Dimensions [diameter]	Actuator Marking	Current Rating (Amps)	Type	Voltage Rating - DC	Mounting Type	Circuit	Termination Style	Features	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Voltage Rating - AC	Color - Actuator/Cap
NKK Switches MB2461S1G03	100000 Cycles	200000 Cycles	6.5 mm	No Marking	0.4 VA	Standard	28 V	Panel Mount Rear	DPDT	PC Pin	Epoxy Sealed Terminals	On-Mom	85 °C	-30 ░C	Plunger for Cap	28 V
NKK Switches MB2461S1W01-FA	25000 Steps	200000 Cycles	6.5 mm	No Marking	3 A	Standard		Panel Mount Rear	DPDT	Solder Lug	Epoxy Sealed Terminals	On-Mom	85 °C	-30 ░C	Button Round	125 V	Black
NKK Switches MB2461S1G30-HA	100000 Cycles	200000 Cycles	6.5 mm	No Marking	0.4 VA	Standard	28 V	Panel Mount Rear Right Angle	DPDT	PC Pin	Epoxy Sealed Terminals	On-Mom	85 °C	-30 ░C	Button Round	28 V	Black

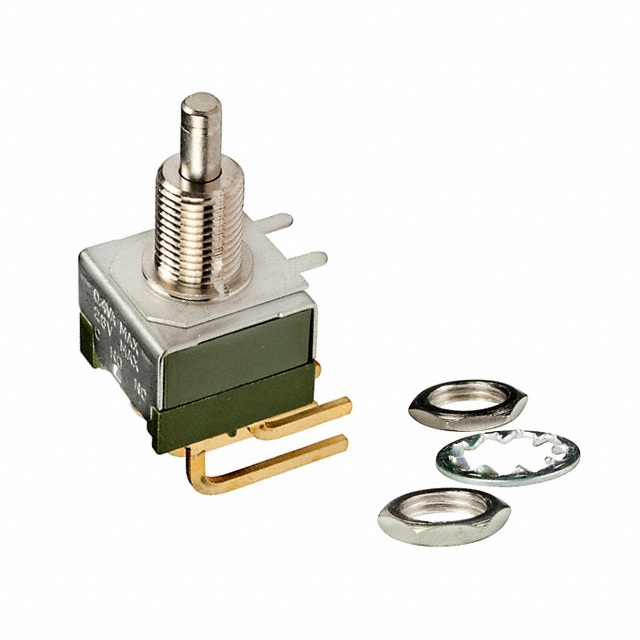

NKK Switches MB2461S1G30	100000 Cycles	200000 Cycles	6.5 mm	No Marking	0.4 VA	Standard	28 V	Panel Mount Rear Right Angle	DPDT	PC Pin	Epoxy Sealed Terminals	On-Mom	85 °C	-30 ░C	Plunger for Cap	28 V
NKK Switches MB2461S1G30-FC	100000 Cycles	200000 Cycles	6.5 mm	No Marking	0.4 VA	Standard	28 V	Panel Mount Rear Right Angle	DPDT	PC Pin	Epoxy Sealed Terminals	On-Mom	85 °C	-30 ░C	Button Round	28 V	Red

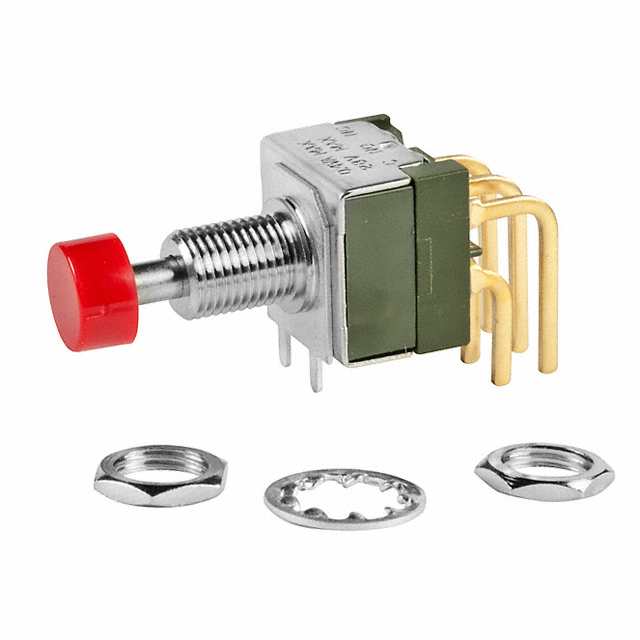

NKK Switches MB2461S1G30-HC	100000 Cycles	200000 Cycles	6.5 mm	No Marking	0.4 VA	Standard	28 V	Panel Mount Rear Right Angle	DPDT	PC Pin	Epoxy Sealed Terminals	On-Mom	85 °C	-30 ░C	Button Round	28 V	Red
