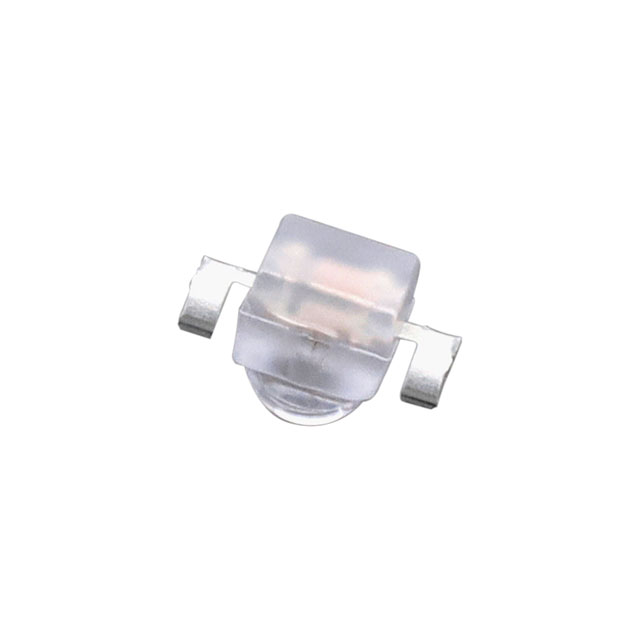

MY2853 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K
EMITTER IR 850NM 100MA SMD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Type | Wavelength | Orientation | Current - DC Forward (If) (Max) [Max] | Mounting Type | Radiant Intensity (Ie) Min @ If [Min] | Voltage - Forward (Vf) (Typ) | Package / Case | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 85 °C | -40 °C | Infrared (IR) | 850 nm | Top View | 100 mA | Surface Mount | 20 mW/sr | 1.65 V | 2-SMD Z-Bend | ||
 Vishay General Semiconductor - Diodes Division | 85 °C | -40 °C | Infrared (IR) | 850 nm | Top View | 100 mA | Surface Mount Bottom Entry | 27 mW/sr | 1.6 V | 2-SMD Z-Bend | Automotive | AEC-Q101 |

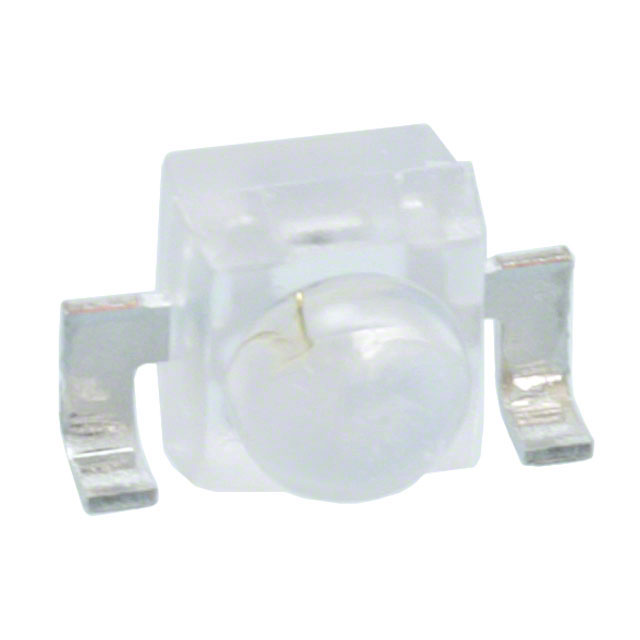

 Vishay General Semiconductor - Diodes Division | 85 °C | -40 °C | Infrared (IR) | 850 nm | Side View | 100 mA | Surface Mount Right Angle | 20 mW/sr | 1.65 V | 2-SMD Gull Wing | ||
 Vishay General Semiconductor - Diodes Division | 85 °C | -40 °C | Infrared (IR) | 850 nm | Side View | 100 mA | Surface Mount Right Angle | 27 mW/sr | 1.6 V | 2-SMD Gull Wing | Automotive | AEC-Q101 |
