858-10 Series

Catalog

CONN SPRING TARGET 6POS PCB

Part	Mounting Type	Material	Number of Contacts	Pitch	Pitch	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Finish

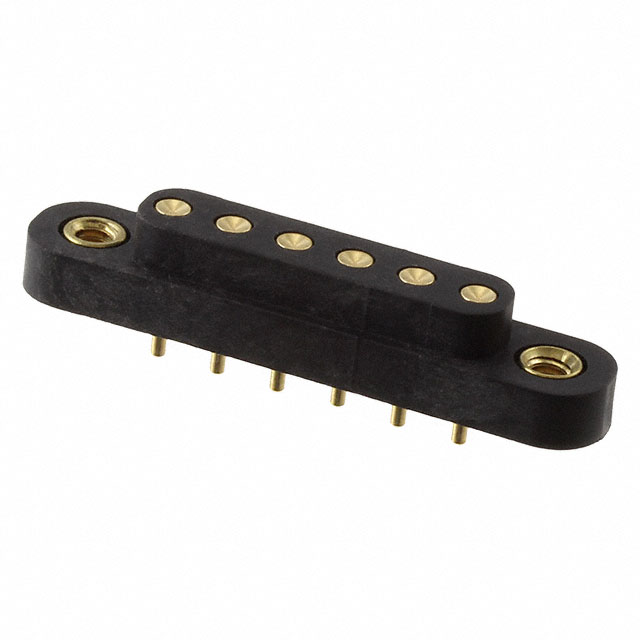

Mill-Max Manufacturing Corp. 858-10-006-10-012000	Through Hole	Brass Alloy	6	4 mm	0.157 in	Mating Target	0.25 Ám	10 Áin	1	Gold

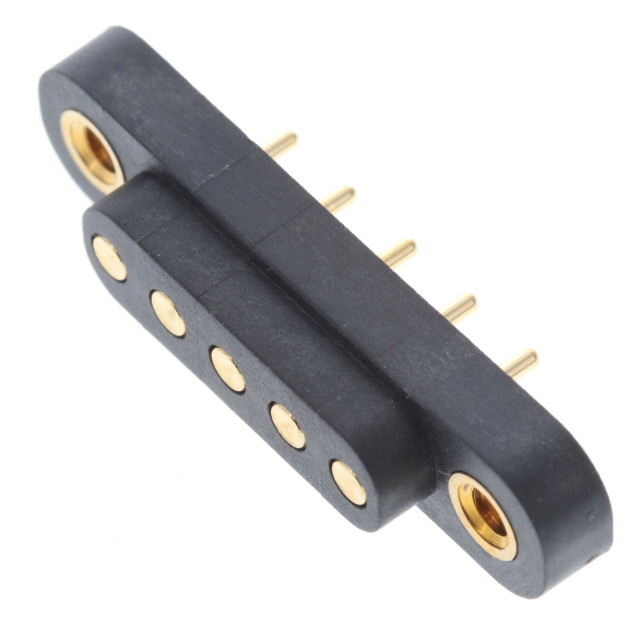

Mill-Max Manufacturing Corp. 858-10-005-10-012000	Through Hole	Brass Alloy	5	4 mm	0.157 in	Mating Target	0.25 Ám	10 Áin	1	Gold
Mill-Max Manufacturing Corp. 858-10-002-30-611000	Surface Mount	Brass Alloy	2	4 mm	0.157 in	Mating Target	0.25 Ám	10 Áin	1	Gold

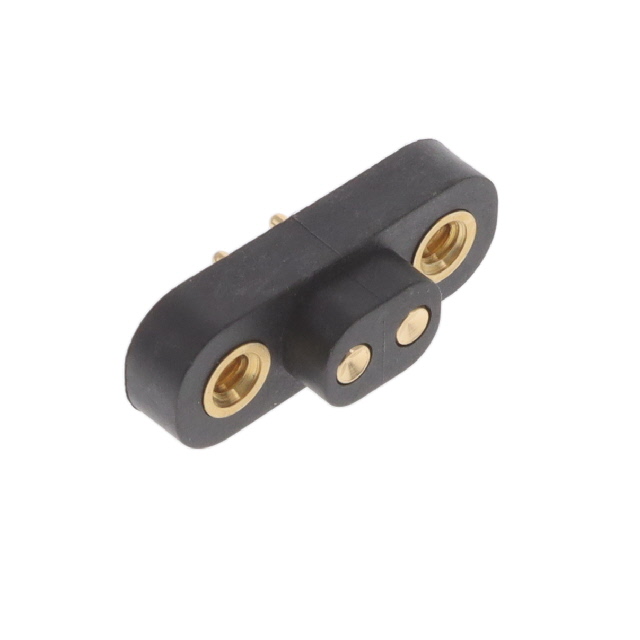

Mill-Max Manufacturing Corp. 858-10-002-10-012000	Through Hole	Brass Alloy	2	4 mm	0.157 in	Mating Target	0.25 Ám	10 Áin	1	Gold
Mill-Max Manufacturing Corp. 858-10-006-30-612000	Surface Mount	Brass Alloy	6	4 mm	0.157 in	Mating Target	0.25 Ám	10 Áin	1	Gold

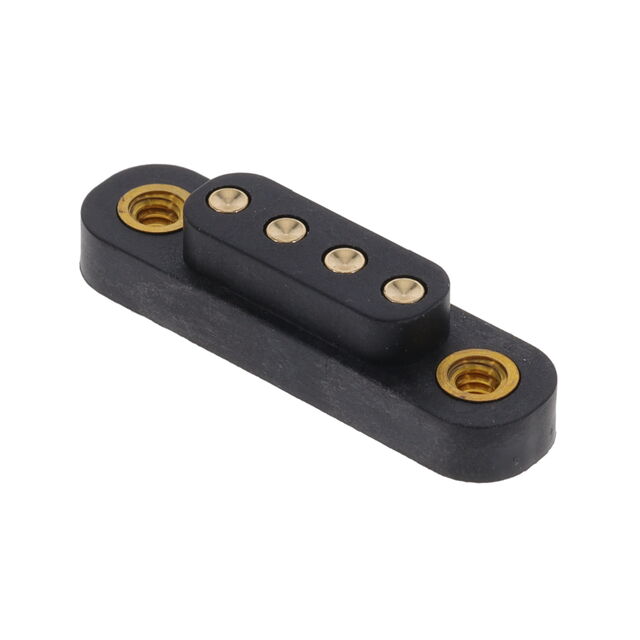

Mill-Max Manufacturing Corp. 858-10-004-30-012000	Surface Mount	Brass Alloy	4	4 mm	0.157 in	Mating Target	0.25 Ám	10 Áin	1	Gold

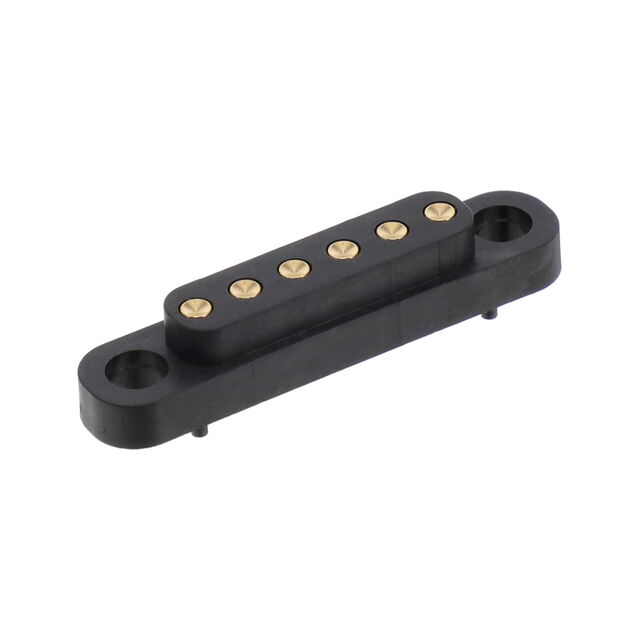

Mill-Max Manufacturing Corp. 858-10-006-30-602000	Surface Mount	Brass Alloy	6	4 mm	0.157 in	Mating Target	0.25 Ám	10 Áin	1	Gold
Mill-Max Manufacturing Corp. 858-10-005-10-001000	Through Hole	Brass Alloy	5	4 mm	0.157 in	Mating Target	0.25 Ám	10 Áin	1	Gold

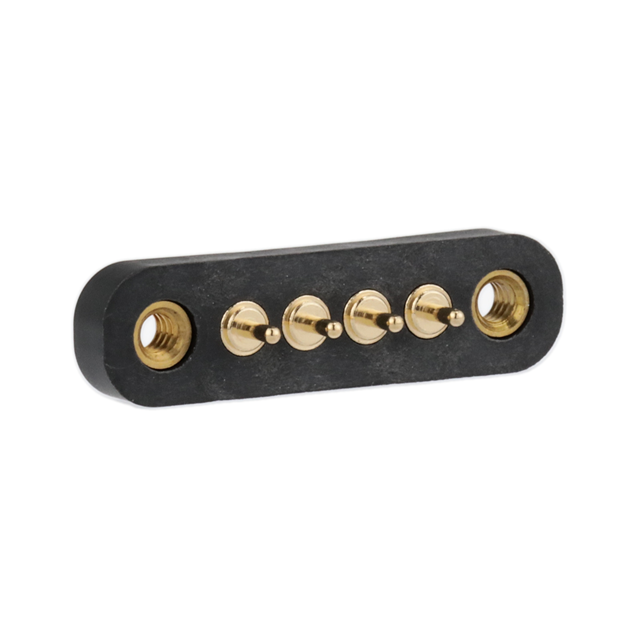

Mill-Max Manufacturing Corp. 858-10-004-10-012000	Through Hole	Brass Alloy	4	4 mm	0.157 in	Mating Target	0.25 Ám	10 Áin	1	Gold

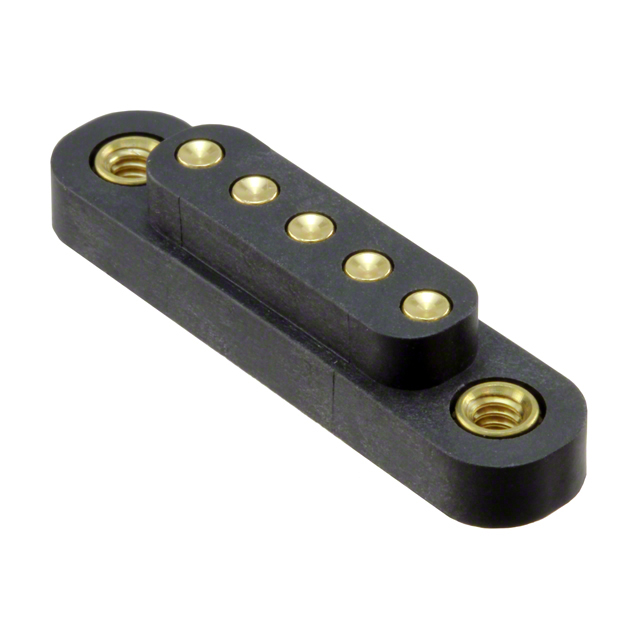

Mill-Max Manufacturing Corp. 858-10-005-30-012000	Surface Mount	Brass Alloy	5	4 mm	0.157 in	Mating Target	0.25 Ám	10 Áin	1	Gold
