70T3339 Series

512K x 18 Sync, 3.3V/2.5V Dual-Port RAM, Interleaved I/O's

Manufacturer: Renesas Electronics Corporation

Catalog

512K x 18 Sync, 3.3V/2.5V Dual-Port RAM, Interleaved I/O's

Part	Memory Type	Memory Organization	Memory Interface	Memory Format	Supplier Device Package	Access Time	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Clock Frequency	Voltage - Supply [Min]	Voltage - Supply [Max]	Technology	Memory Size	Mounting Type
Renesas Electronics Corporation 70T3339S133BC8	Volatile	512K x 18	Parallel	SRAM	256-CABGA (17x17)	4.2 ns	256-LBGA	0 °C	70 °C	133 MHz	2.4 V	2.6 V	SRAM - Dual Port Synchronous	9 Mbit	Surface Mount

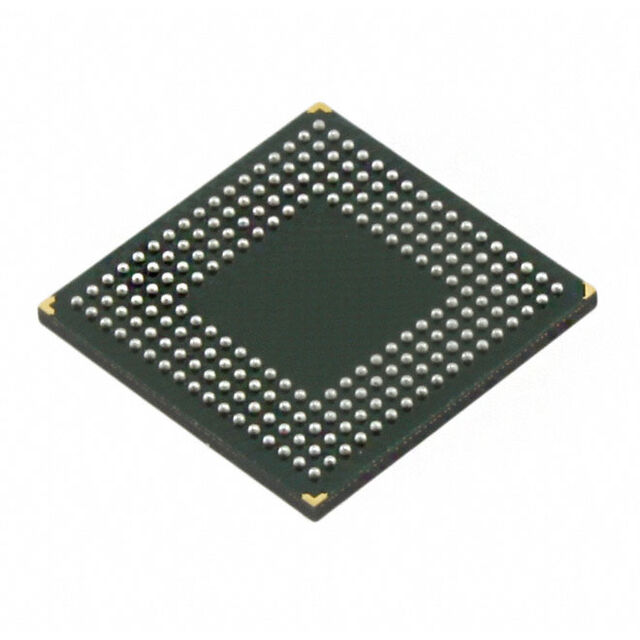

Renesas Electronics Corporation 70T3339S166BF	Volatile	512K x 18	Parallel	SRAM	208-CABGA (15x15)	3.6 ns	208-LFBGA	0 °C	70 °C	166 MHz	2.4 V	2.6 V	SRAM - Dual Port Synchronous	9 Mbit	Surface Mount
Renesas Electronics Corporation 70T3339S133BF8	Volatile	512K x 18	Parallel	SRAM	208-CABGA (15x15)	4.2 ns	208-LFBGA	0 °C	70 °C	133 MHz	2.4 V	2.6 V	SRAM - Dual Port Synchronous	9 Mbit	Surface Mount
Renesas Electronics Corporation 70T3339S133BCI	Volatile	512K x 18	Parallel	SRAM	256-CABGA (17x17)	4.2 ns	256-LBGA	-40 ¯C	85 C	133 MHz	2.4 V	2.6 V	SRAM - Dual Port Synchronous	9 Mbit	Surface Mount
Renesas Electronics Corporation 70T3339S166BC8	Volatile	512K x 18	Parallel	SRAM	256-CABGA (17x17)	3.6 ns	256-LBGA	0 °C	70 °C	166 MHz	2.4 V	2.6 V	SRAM - Dual Port Synchronous	9 Mbit	Surface Mount
Renesas Electronics Corporation 70T3339S133BFI	Volatile	512K x 18	Parallel	SRAM	208-CABGA (15x15)	4.2 ns	208-LFBGA	-40 ¯C	85 C	133 MHz	2.4 V	2.6 V	SRAM - Dual Port Synchronous	9 Mbit	Surface Mount
Renesas Electronics Corporation 70T3339S133BFI8	Volatile	512K x 18	Parallel	SRAM	208-CABGA (15x15)	4.2 ns	208-LFBGA	-40 ¯C	85 C	133 MHz	2.4 V	2.6 V	SRAM - Dual Port Synchronous	9 Mbit	Surface Mount
Renesas Electronics Corporation 70T3339S200BCG	Volatile	512K x 18	Parallel	SRAM	256-CABGA (17x17)	3.4 ns	256-LBGA	0 °C	70 °C	200 MHz	2.4 V	2.6 V	SRAM - Dual Port Synchronous	9 Mbit	Surface Mount
Renesas Electronics Corporation 70T3339S133BCI8	Volatile	512K x 18	Parallel	SRAM	256-CABGA (17x17)	4.2 ns	256-LBGA	-40 ¯C	85 C	133 MHz	2.4 V	2.6 V	SRAM - Dual Port Synchronous	9 Mbit	Surface Mount
Renesas Electronics Corporation 70T3339S200BC	Volatile	512K x 18	Parallel	SRAM	256-CABGA (17x17)	3.4 ns	256-LBGA	0 °C	70 °C	200 MHz	2.4 V	2.6 V	SRAM - Dual Port Synchronous	9 Mbit	Surface Mount

Catalog

512K x 18 Sync, 3.3V/2.5V Dual-Port RAM, Interleaved I/O's

Description

The 70T3339 is a high-speed 512K x 18 bit synchronous Dual-Port RAM that has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. The 70T3339 can support an operating voltage of either 3.3V or 2.5V on one or both ports, controllable by the OPT pins. The power supply for the core of the device (VDD) is at 2.5V.
