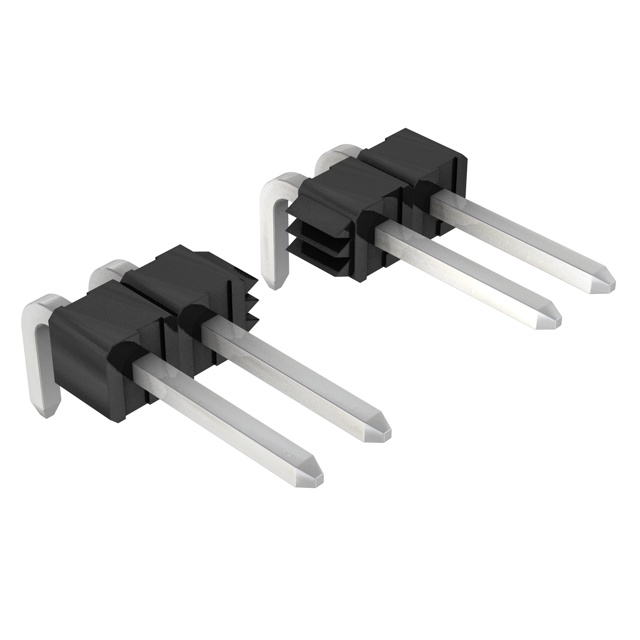

042377 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 10POS 2.54MM

Part	Fastening Type	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Mounting Type	Insulation Color	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Style	Contact Type	Shrouding	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Insulation Material	Number of Rows	Applications	Connector Type	Number of Positions Loaded	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Number of Positions Loaded [custom]	Contact Length - Post	Contact Length - Post	Number of Positions Loaded
Molex 0423770531	Push-Pull	Tin-Lead	0.244 "	6.2 mm	Through Hole Right Angle	Black	0.098 in	2.5 mm	59 Áin	1.5 Ám	Kinked Pin Solder	Board to Board Cable	Male Pin	Unshrouded	10	0.1 in	2.54 mm	0.135 in	3.43 mm	Square	Glass Filled Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	Breakaway Header	All
Molex 0423770962	Push-Pull	Gold	0.317 in	8.05 mm	Through Hole Right Angle	Black	0.098 in	2.5 mm	15 µin	0.38 µm	Solder	Board to Board Cable	Male Pin	Unshrouded	36	0.1 in	2.54 mm	0.29 "	7.37 mm	Square	Glass Filled Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	Breakaway Header	All	Tin	2.54 µm	100 µin	UL94 V-0
Molex 0423770931	Push-Pull	Gold	0.317 in	8.05 mm	Through Hole Right Angle	Black	0.098 in	2.5 mm	15 µin	0.38 µm	Solder	Board to Board Cable	Male Pin	Unshrouded		0.1 in	2.54 mm	0.29 "	7.37 mm	Square	Glass Filled Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	Breakaway Header	All	Tin	2.54 µm	100 µin	UL94 V-0
Molex 0423771001	Push-Pull		0.14 in	3.56 mm	Through Hole Right Angle	Black	0.098 in	2.5 mm	100 çin	2.54 çm	Solder	Board to Board Cable	Male Pin	Unshrouded	6	0.1 in	2.54 mm			Square	Glass Filled Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	Breakaway Header		Tin	2.54 µm	100 µin	UL94 V-0	5	0.145 in	3.68 mm
Molex 0423770900	Push-Pull	Gold	0.324 in	8.23 mm	Through Hole Right Angle	Black	0.098 in	2.5 mm	15 µin	0.38 µm	Kinked Pin Solder	Board to Board Cable	Male Pin	Unshrouded	9	0.1 in	2.54 mm	0.135 in	3.43 mm	Square	Glass Filled Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	Breakaway Header		Tin	2.54 µm	100 µin	UL94 V-0				3
Molex 0423770695	Push-Pull		0.244 "	6.2 mm	Through Hole Right Angle	Black	0.098 in	2.5 mm	100 çin	2.54 çm	Kinked Pin Solder	Board to Board Cable	Male Pin	Unshrouded		0.1 in	2.54 mm	0.135 in	3.43 mm	Square	Glass Filled Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	Breakaway Header		Tin	2.54 µm	100 µin	UL94 V-0				4
Molex 0423771341	Push-Pull	Gold	0.195 "	4.95 mm	Through Hole Right Angle	Black	0.098 in	2.5 mm	15 µin	0.38 µm	Solder	Board to Board Cable	Male Pin	Unshrouded	19	0.1 in	2.54 mm			Square	Glass Filled Nylon Polyamide (PA)	1	Automotive General Purpose Medical Telecommunications	Breakaway Header		Tin	2.54 µm	100 µin	UL94 V-0		0.093 in	2.35 mm	7
