ADS7818 Series

Catalog

1-CHANNEL SINGLE ADC SAR 500KSPS 12-BIT SERIAL 8-PIN VSSOP T/R

Part	Voltage - Supply, Digital	Ratio - S/H:ADC	Architecture	Package / Case	Package / Case [custom]	Package / Case	Data Interface	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Analog	Number of Bits	Reference Type	Number of A/D Converters	Input Type	Mounting Type	Sampling Rate (Per Second)	Configuration	Number of Inputs	Supplier Device Package	Package / Case	Utilized IC / Part	Supplied Contents	Input Range [Max]	Input Range [Min]	Power (Typ) @ Conditions
Texas Instruments ADS7818EB/2K5G4	5 V	1:1	SAR	8-MSOP 8-TSSOP	0.118 in	3 mm	SPI	85 °C	-40 °C	5 V	12 bits	Internal	1	Differential	Surface Mount	500k	S/H-ADC	1
Texas Instruments ADS7818EB/2K5	5 V	1:1	SAR	8-MSOP 8-TSSOP	0.118 in	3 mm	SPI	85 °C	-40 °C	5 V	12 bits	Internal	1	Differential	Surface Mount	500k	S/H-ADC	1
Texas Instruments ADS7818E/250G4	5 V	1:1	SAR	8-MSOP 8-TSSOP	0.118 in	3 mm	SPI	85 °C	-40 °C	5 V	12 bits	Internal	1	Differential	Surface Mount	500k	S/H-ADC	1
Texas Instruments ADS7818P	5 V	1:1	SAR	8-DIP		0.3 in	SPI	85 °C	-40 °C	5 V	12 bits	Internal	1	Differential	Through Hole	500k	S/H-ADC	1	8-PDIP	7.62 mm
Texas Instruments ADS7818EB/250G4	5 V	1:1	SAR	8-MSOP 8-TSSOP	0.118 in	3 mm	SPI	85 °C	-40 °C	5 V	12 bits	Internal	1	Differential	Surface Mount	500k	S/H-ADC	1

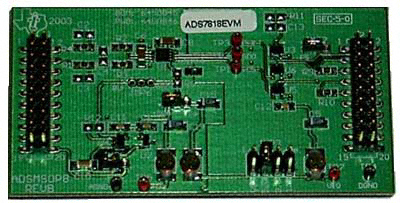

Texas Instruments ADS7818EVM							Serial				12 bits		1			500k					ADS7818	Board(s)	5 V	0 V	11 mW
Texas Instruments ADS7818EB/250	5 V	1:1	SAR	8-MSOP 8-TSSOP	0.118 in	3 mm	SPI	85 °C	-40 °C	5 V	12 bits	Internal	1	Differential	Surface Mount	500k	S/H-ADC	1
Texas Instruments ADS7818PG4	5 V	1:1	SAR	8-DIP		0.3 in	SPI	85 °C	-40 °C	5 V	12 bits	Internal	1	Differential	Through Hole	500k	S/H-ADC	1	8-PDIP	7.62 mm
Texas Instruments ADS7818E/2K5G4	5 V	1:1	SAR	8-MSOP 8-TSSOP	0.118 in	3 mm	SPI	85 °C	-40 °C	5 V	12 bits	Internal	1	Differential	Surface Mount	500k	S/H-ADC	1
