101TL2 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

TOGGLE SWITCH, SPDT, 15A, 28VDC, PANEL ROHS COMPLIANT: YES

Part	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Bushing Thread	Illumination	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Voltage Rating - DC	Mounting Type	Switch Function	Termination Style	Circuit	Ingress Protection	Voltage Rating - AC	Current Rating (Amps)	Actuator Type

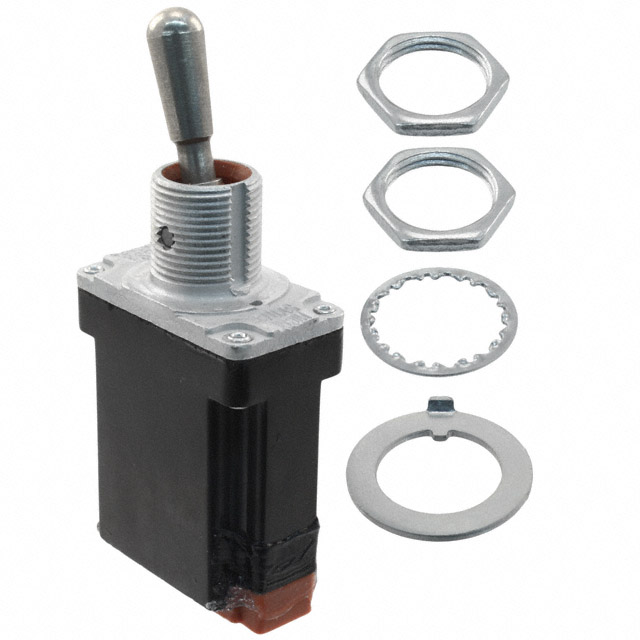

Honeywell Sensing and Productivity Solutions 101TL2-8	Nickel Plated	-65 ░C	71 °C	15/32-32	Non-Illuminated	12.4 mm	17.27 mm	30 V	Panel Mount	On-Mom	IWTS	SPDT	Environment Sealed	115 V	7.5 A	Standard Round
Honeywell Sensing and Productivity Solutions 101TL2834-3	Nickel Plated	-65 ░C	71 °C	15/32-32	Non-Illuminated	12.4 mm	17.27 mm	28 V	Panel Mount	On-On	IWTS	SPDT	Environment Sealed	115 V	100 mA	Standard Round

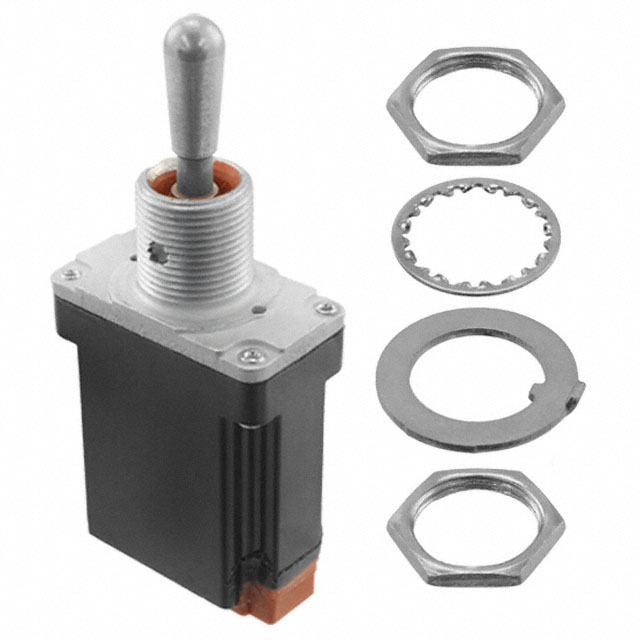

Honeywell Sensing and Productivity Solutions 101TL2-7	Nickel Plated	-65 ░C	71 °C	15/32-32	Non-Illuminated	12.4 mm	17.27 mm	30 V	Panel Mount	Mom-Off-Mom	IWTS	SPDT	Environment Sealed	115 V	7.5 A	Standard Round
Honeywell Sensing and Productivity Solutions 101TL2-2D	Nickel Plated	-65 ░C	71 °C	15/32-32	Non-Illuminated	12.4 mm	26.67 mm	30 V	Panel Mount	On-Off	IWTS	SPST	Environment Sealed	115 V	7.5 A	Locking Lever
Honeywell Sensing and Productivity Solutions 101TL2-31	Nickel Plated	-65 ░C	71 °C	15/32-32	Non-Illuminated	12.4 mm	17.27 mm	30 V	Panel Mount	On-On	IWTS	SPDT	Environment Sealed	115 V	7.5 A	Standard Round
Honeywell Sensing and Productivity Solutions 101TL2-6	Nickel Plated	-65 ░C	71 °C	15/32-32	Non-Illuminated	12.4 mm	17.27 mm	30 V	Panel Mount	Off-Mom	IWTS	SPST-NO	Environment Sealed	115 V	7.5 A	Standard Round
Honeywell Sensing and Productivity Solutions 101TL2-5N		-65 ░C	71 °C	15/32-32	Non-Illuminated	12.4 mm	26.67 mm	30 V	Panel Mount	On-Off-Mom	IWTS	SPDT	Environment Sealed	115 V	7.5 A	Locking Lever
Honeywell Sensing and Productivity Solutions 101TL2841-7	Nickel Plated	-65 ░C	71 °C	15/32-32	Non-Illuminated	12.4 mm	16.51 mm	28 V	Panel Mount	Mom-Off-Mom	IWTS	SPDT	Environment Sealed	115 V	100 mA	Flatted
Honeywell Sensing and Productivity Solutions 101TL2-4	Nickel Plated	-65 ░C	71 °C	15/32-32	Non-Illuminated	12.4 mm	17.27 mm	30 V	Panel Mount	On-Mom	IWTS	SPST-NC	Environment Sealed	115 V	7.5 A	Standard Round
Honeywell Sensing and Productivity Solutions 101TL2-6F	Nickel Plated	-65 ░C	71 °C	15/32-32	Non-Illuminated	12.4 mm	26.67 mm	30 V	Panel Mount	Off-Mom	IWTS	SPST-NO	Environment Sealed	115 V	7.5 A	Locking Lever
