34166 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

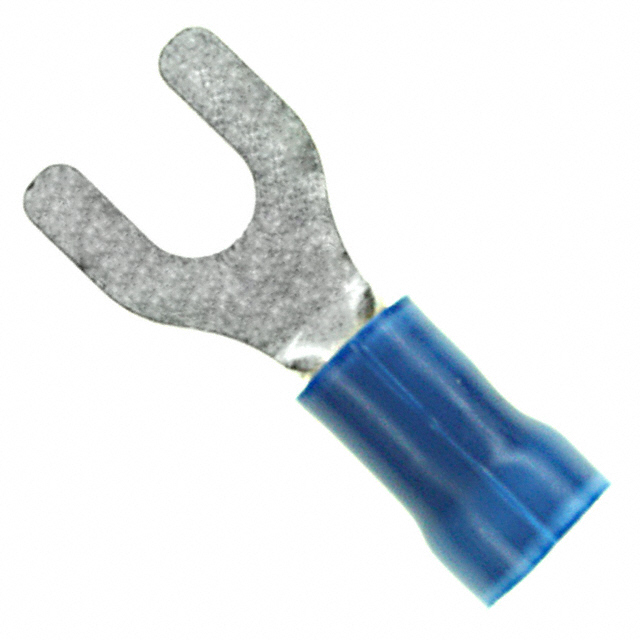

CONN SPADE TERM 14-16AWG #8 BLU
| Part | Terminal Type | Color | Tongue Inside Opening [x] | Tongue Inside Opening [x] | Mounting Type | Insulation | Length - Ring Center to Termination | Length - Ring Center to Termination [x] | Stud/Tab Size | Length - Termination | Length - Termination | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Features | Length - Overall [x] | Length - Overall [x] | Material - Insulation | Termination | Width - Outer Edges | Width - Outer Edges | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Standard | Blue | 0.171 in | 4.34 mm | Free Hanging (In-Line) | Insulated | 7.92 mm | 0.312 in | 8 Stud | 10.57 mm | 0.416 in | 4.9 mm | 3 mm | 0.193 in | 0.118 in | Serrated Termination | 23.37 mm | 0.92 " | Poly-Vinyl Chloride (PVC) | Crimp | 0.385 in | 9.78 mm | Copper |
