MS3120F20 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

RECEPT

Part	Backshell Material	Plating	Contact Material	Applications	Insert Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Number of Positions	Fastening Type	Features	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Ingress Protection	Contact Finish - Mating	Qualification	Mounting Type	Primary Material	Shell Material	Shielding	Mounting Feature	Termination	Shell Finish	Grade	Connector Type	Color	Shell Size - Insert Length	Shell Size - Insert Width	Voltage Rating	Current Rating Options
Amphenol Aerospace Operations MS3120F20-41S(LC)

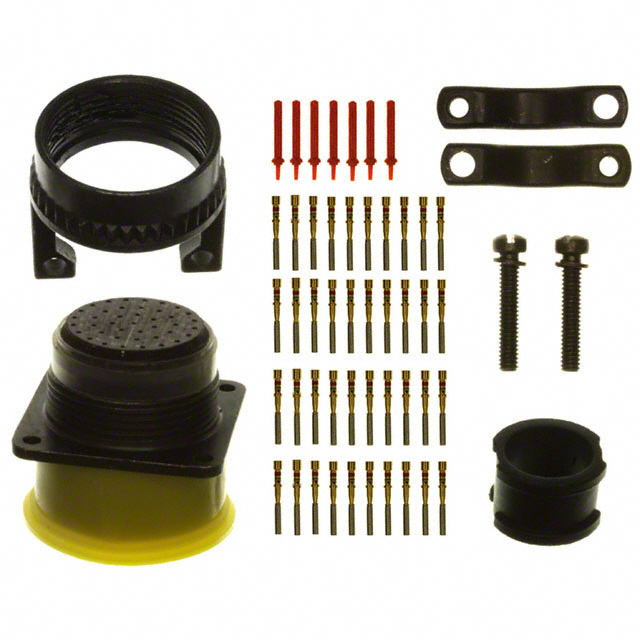

Amphenol Aerospace Operations MS3120F20-41S	Aluminum	Olive Drab Chromate over Cadmium	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Neoprene	41	20	41	Bayonet Lock	Backshell Cable Clamp	N (Normal)	125 °C	-55 °C	Environment Resistant	Gold	MIL-DTL-26482 Series I	Panel Mount	Metal	Aluminum	Unshielded	Flange	Crimp	Cadmium Olive Drab Chromate	Military	Female Sockets Receptacle	Olive Drab
Amphenol Aerospace Operations MS3120F20-41P	Aluminum	Olive Drab Chromate over Cadmium	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Neoprene	41	20	41	Bayonet Lock	Backshell Cable Clamp	N (Normal)	125 °C	-55 °C	Environment Resistant	Gold	MIL-DTL-26482 Series I	Panel Mount	Metal	Aluminum	Unshielded	Flange	Crimp	Cadmium Olive Drab Chromate	Military	Male Pins Receptacle	Olive Drab
Amphenol Aerospace Operations MS3120F20-16P	Aluminum	Olive Drab Chromate over Cadmium	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Neoprene			16	Bayonet Lock	Backshell Cable Clamp	N (Normal)	125 °C	-55 °C	Environment Resistant	Gold	MIL-DTL-26482 Series I	Panel Mount	Metal	Aluminum	Unshielded	Flange	Crimp	Cadmium Olive Drab Chromate	Military	Male Pins Receptacle	Olive Drab	20 mm	16 mm
Amphenol Aerospace Operations MS3120F20-39S(LC)
Amphenol Aerospace Operations MS3120F20-39P			Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene	39	20	39	Bayonet Lock	Strain Relief	N (Normal)	125 °C	-55 °C	Environment Resistant	Gold	MIL-DTL-26482 Series I	Panel Mount	Metal	Aluminum	Unshielded	Flange	Crimp	Cadmium Olive Drab Chromate	Military	Male Pins Receptacle	Olive Drab			600 V	13A 7.5A
