SFM210 Series

Manufacturer: Sullins Connector Solutions

Catalog

Catalog

CONN HDR 48POS 0.039 GOLD SMD

...

Part	Insulation Material	Contact Material	Contact Shape	Contact Finish Thickness - Post	Mounting Type	Termination	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Insulation Height	Insulation Height	Number of Positions Loaded	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Number of Positions	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Features	Contact Finish Thickness - Mating	Number of Rows
Sullins Connector Solutions SFM210-LPSE-D24-SM-BK	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	Flash	Surface Mount	Solder	Black	0.25 µm	10 µin	Gold	Push-Pull	125 °C	-40 C	2	0.087 "	2.2 mm	All	UL94 V-0	0.039 in	1 mm	Header Top or Bottom Entry	48	Female Socket	1 mm	0.039 in	Gold
Sullins Connector Solutions SFM210-LPSE-D12-ST-BK	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	Flash	Through Hole	Solder	Black	0.25 µm	10 µin	Gold	Push-Pull	125 °C	-40 C	2	0.083 in	2.1 mm	All	UL94 V-0	0.039 in	1 mm	Header	24	Female Socket	1 mm	0.039 in	Gold	2.4 mm	0.094 in
Sullins Connector Solutions SFM210-LPSE-D30-SP-BK	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	Flash	Surface Mount	Solder	Black	0.25 µm	10 µin	Gold	Push-Pull	125 °C	-40 C	2	0.087 "	2.2 mm	All	UL94 V-0	0.039 in	1 mm	Header Top or Bottom Entry	60	Female Socket	1 mm	0.039 in	Gold			Board Guide
Sullins Connector Solutions SFM210-LPPE-D49-ST-BK	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	Flash	Through Hole	Solder	Black			Gold	Push-Pull	125 °C	-40 C	2	0.083 in	2.1 mm	All	UL94 V-0	0.039 in	1 mm	Header	98	Female Socket	1 mm	0.039 in	Gold	2.4 mm	0.094 in		Flash
Sullins Connector Solutions SFM210-LPPE-D20-SM-BK	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	Flash	Surface Mount	Solder	Black			Gold	Push-Pull	125 °C	-40 C	2	0.087 "	2.2 mm	All	UL94 V-0	0.039 in	1 mm	Header Top or Bottom Entry	40	Female Socket	1 mm	0.039 in	Gold				Flash
Sullins Connector Solutions SFM210-LPPE-D04-SM-BK	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	Flash	Surface Mount	Solder	Black			Gold	Push-Pull	125 °C	-40 C	2	0.087 "	2.2 mm	All	UL94 V-0	0.039 in	1 mm	Header Top or Bottom Entry	8	Female Socket	1 mm	0.039 in	Gold				Flash
Sullins Connector Solutions SFM210-LPPE-D38-SP-BK	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	Flash	Surface Mount	Solder	Black			Gold	Push-Pull	125 °C	-40 C	2	0.087 "	2.2 mm	All	UL94 V-0	0.039 in	1 mm	Header Top or Bottom Entry	76	Female Socket	1 mm	0.039 in	Gold			Board Guide	Flash
Sullins Connector Solutions SFM210-LPPE-S28-ST-BK	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	Flash	Through Hole	Solder	Black			Gold	Push-Pull	125 °C	-40 C		0.083 in	2.1 mm	All	UL94 V-0			Header	28	Female Socket	1 mm	0.039 in	Gold	2.4 mm	0.094 in		Flash	1

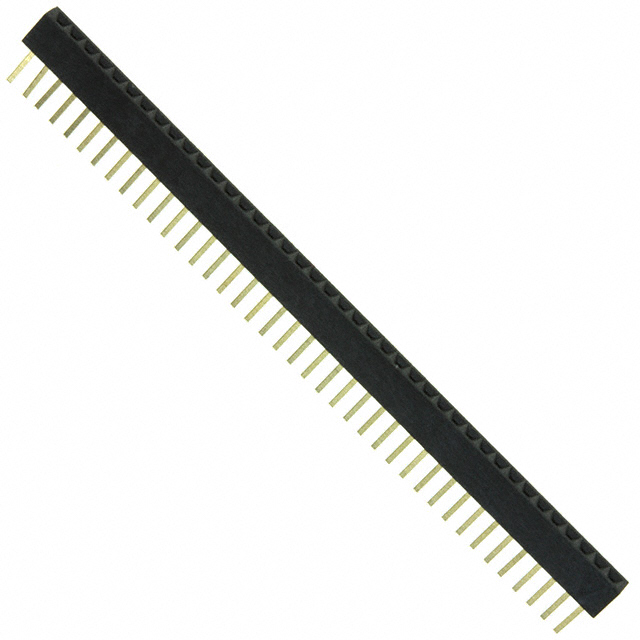

Sullins Connector Solutions SFM210-LPSE-S40-ST-BK	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	Flash	Through Hole	Solder	Black	0.25 µm	10 µin	Gold	Push-Pull	125 °C	-40 C		0.083 in	2.1 mm	All	UL94 V-0			Header	40	Female Socket	1 mm	0.039 in	Gold	2.4 mm	0.094 in			1
Sullins Connector Solutions SFM210-LPPE-D49-SM-BK	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	Flash	Surface Mount	Solder	Black			Gold	Push-Pull	125 °C	-40 C	2	0.087 "	2.2 mm	All	UL94 V-0	0.039 in	1 mm	Header Top or Bottom Entry	98	Female Socket	1 mm	0.039 in	Gold				Flash
