TEF690 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
IC CAR RADIO SGL CHIP CIRC 80QFP
| Part | Mounting Type | Antenna Connector | Current - Receiving | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Applications | Data Interface | Modulation or Protocol | Package Length | Package Name | Package Width | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

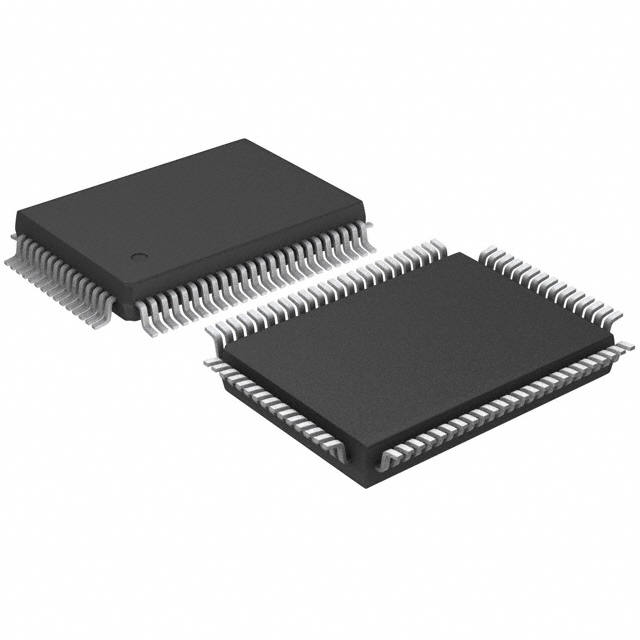

 NXP USA Inc. | Surface Mount | PCB Surface Mount | 102 mA | 9 V | 8 V | AM/FM Radio Receiver | PCB Surface Mount | AM FM | 14 mm | 80-QFP | 14 mm | -40 °C | 85 °C | 80-BQFP | |

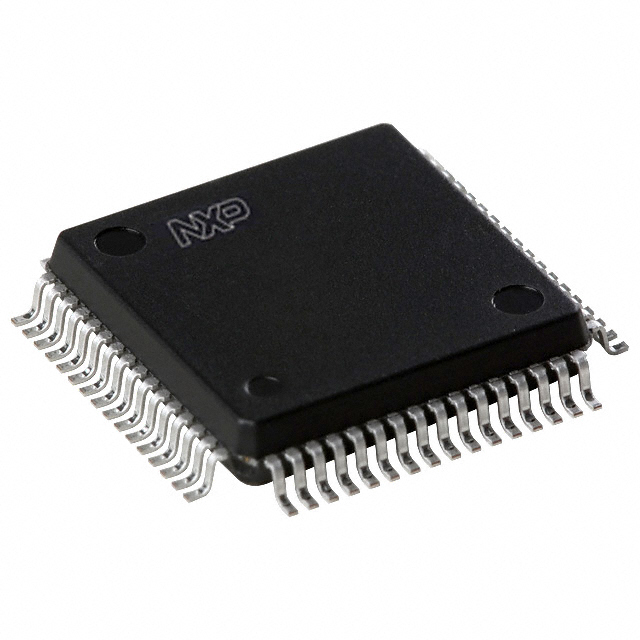

 NXP USA Inc. | Surface Mount | PCB Surface Mount | Audio | PCB Surface Mount | RBDS/RDS | 14 mm | 64-QFP | 14 mm | 64-BQFP | Automotive | |||||
NXP USA Inc. | Surface Mount | PCB Surface Mount | 102 mA | 9 V | 8 V | AM/FM Radio Receiver | PCB Surface Mount | AM FM WB | 14 mm | 64-QFP | 14 mm | -40 °C | 85 °C | 64-BQFP | |
NXP USA Inc. | Surface Mount | PCB Surface Mount | 102 mA | 9 V | 8 V | AM/FM Radio Receiver | PCB Surface Mount | AM FM | 14 mm | 80-QFP | 14 mm | -40 °C | 85 °C | 80-BQFP |
