PC Series

Pluggable Terminal Blocks 8 Pos 7.62mm pitch Plug 20-14 AWG Screw

Manufacturer: Signal Transformer

Catalog

Pluggable Terminal Blocks 8 Pos 7.62mm pitch Plug 20-14 AWG Screw

Catalog

Pluggable Terminal Blocks 8 Pos 7.62mm pitch Plug 20-14 AWG Screw

Part	Voltage - Primary	Center Tap	Power - Max [Max]	Weight [custom]	Weight [custom]	Size / Dimension [x]	Size / Dimension [y]	Primary Winding(s)	Mounting Type	Secondary Winding(s)	Termination Style	Type	Voltage - Isolation	Height - Seated (Max) [Max] [z]	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load)	Current - Output (Max)	Height - Seated (Max) [Max]	Weight	Weight
Signal Transformer DPC-20-45	115 V 230 V		1 VA	0.157 lb	71.21 g	1 in	34.92 mm	Dual	Through Hole	Dual	PC Pin	Laminated Core	1500 VAC	21.08 mm	45 mA	90 mA	10 V	20 V

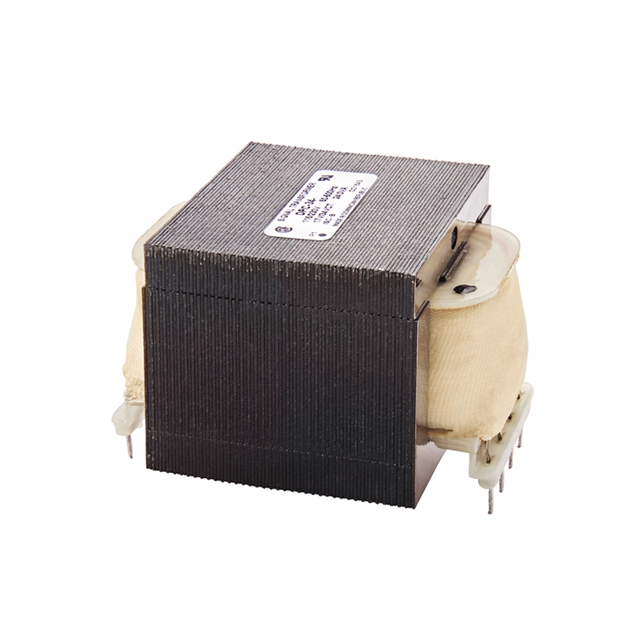

Signal Transformer DPC-10-2400	115 V 230 V		24 VA	0.75 lb	340.19 g	41.3 mm	57.2 mm	Dual	Through Hole	Dual	PC Pin	Laminated Core	1500 VAC	34.93 mm	2.4 A	4.8 A			5 V 10 V
Signal Transformer PC-56-180	115 V		10 VA			47.6 mm	36.5 mm	Single	Through Hole	Dual	PC Pin	Laminated Core	1500 VAC						28 V 56 V	180 mA 360 mA	41.27 mm	0.563 lb	255.37 g
Signal Transformer PC-56-80	115 V		4.4 VA			41.3 mm	31.8 mm	Single	Through Hole	Dual	PC Pin	Laminated Core	1500 VAC	34.92 mm	80 mA	160 mA			28 V 56 V			0.313 lb	141.97 g
