223CMV Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Mechanical Life	Actuator Height off PCB, Vertical [z]	Actuator Type	Termination Style	Contact Rating @ Voltage	Switch Function	Actuator Orientation	Mounting Type	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Circuit	Features	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical

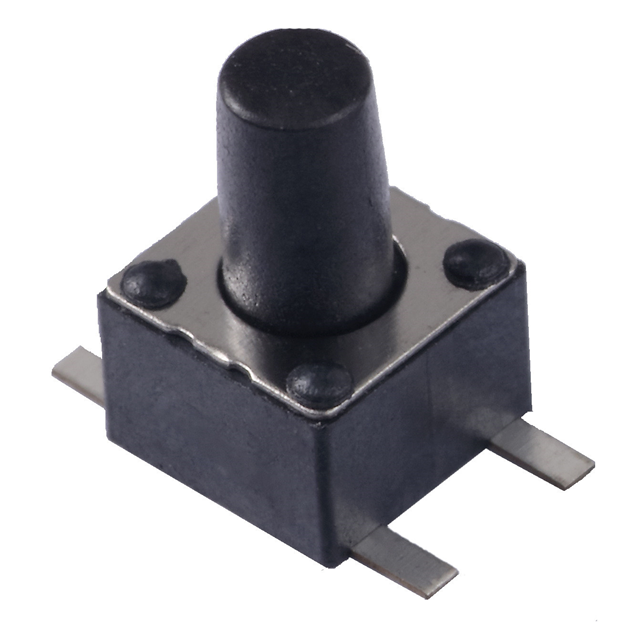

CTS Electrocomponents 223CMVBAR	0.2 mm	1000000 Cycles	7 mm	Standard	Gull Wing	0.05 A 12 VDC	Off-Mom	Top Actuated	Surface Mount	Non-Illuminated	85 °C	-40 C	160 gf	SPST-NO	Tactile Feedback	4.5 mm	4.5 mm

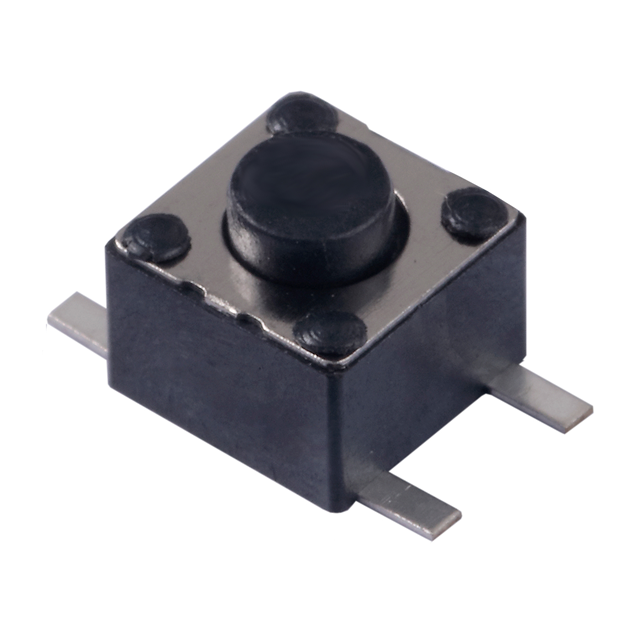

CTS Electrocomponents 223CMVAAR	0.2 mm	1000000 Cycles		Standard	Gull Wing	0.05 A 12 VDC	Off-Mom	Top Actuated	Surface Mount	Non-Illuminated	85 °C	-40 C	160 gf	SPST-NO	Tactile Feedback	4.5 mm	4.5 mm	3.8 mm
