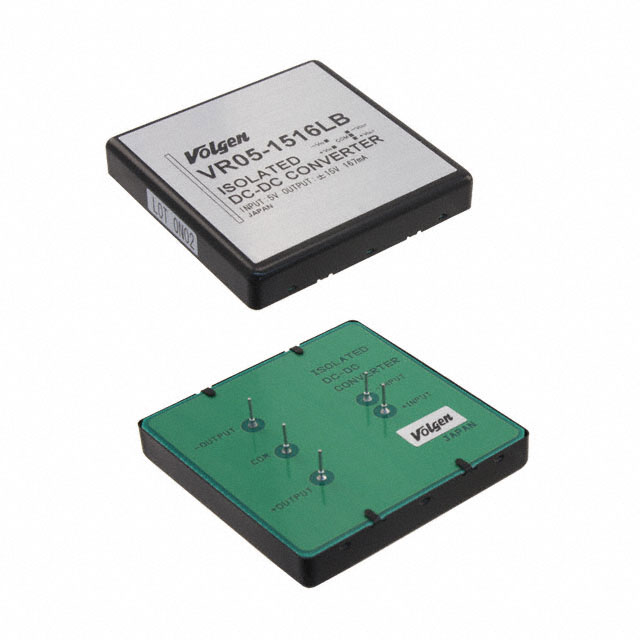

VR05-1516 Series
Manufacturer: Volgen + Furuno
Beta
⌘K
DC DC CONVERTER +/-15V 5W
| Part | Voltage - Output 1 | Package / Case | Voltage - Output 2 | Voltage - Input (Max) [Max] | Number of Outputs | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Efficiency | Current - Output (Max) | Type | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Applications | Mounting Type | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Volgen + Furuno | 15 V | 5-DIP Module | -15 V | 6 V | 2 | 2.02 in | 51.3 mm | 0.39 " | 51.3 mm | 2.02 " | 9.8 mm | 64 % | 167 mA | Isolated Module | 5 W | -20 ░C | 70 °C | 500 V | ITE (Commercial) | Through Hole | 4.75 V |
