TDA855 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
IC AMP AB MONO/STEREO 140MW 16SO
| Part | Package Name | Type | Features | Package Width | Package Length | Mounting Type | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Maximum Output Power (per Channel) | Load Impedance | Channels | Output Type | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | 16-SO 16-SOIC | Class AB | Depop Differential Inputs Mute Short-Circuit Protection Standby | 3.9 mm | 0.154 in | Surface Mount | 30 VDC | 1.9 V | 35 mW 140 mW | 25 Ohm 32 Ohm | 1 2 | 1-Channel (Mono) or 2-Channel (Stereo) | 85 °C | -40 °C |
 NXP USA Inc. | 20-SO 20-SOIC | Class AB | Depop Mute Short-Circuit and Thermal Protection Standby Volume Control | 7.5 mm | 0.295 in | Surface Mount | 5.5 V | 2.7 V | 1.4 W | 8 Ohm | 2 | 2-Channel (Stereo) | 85 °C | -40 °C |
 NXP USA Inc. | 8-SO 8-SOIC | Class AB | Depop Mute Short-Circuit and Thermal Protection Standby Volume Control | 3.9 mm | 0.154 in | Surface Mount | 5.5 V | 2.7 V | 1.4 W | 8 Ohm | 1 | 1-Channel (Mono) | 85 °C | -40 °C |

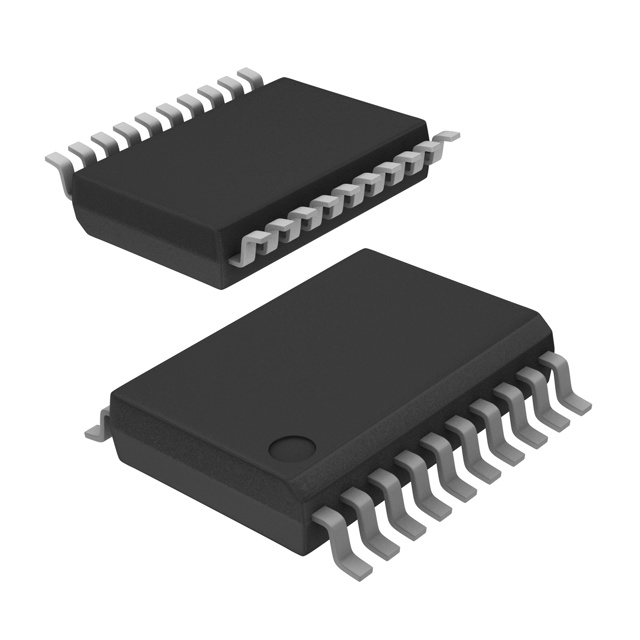

 NXP USA Inc. | 20-LSSOP 20-SSOP | Class AB | Depop Mute Short-Circuit and Thermal Protection Standby Volume Control | 4.4 mm | 0.173 in | Surface Mount | 5.5 V | 2.7 V | 1.4 W | 8 Ohm | 2 | 2-Channel (Stereo) | 85 °C | -40 °C |
NXP USA Inc. | 20-LSSOP 20-SSOP | Class AB | Depop Mute Short-Circuit and Thermal Protection Standby Volume Control | 4.4 mm | 0.173 in | Surface Mount | 5.5 V | 2.7 V | 1.4 W | 8 Ohm | 2 | 2-Channel (Stereo) | 85 °C | -40 °C |
