EBAFA Series
Manufacturer: Adam Tech
Beta
⌘K

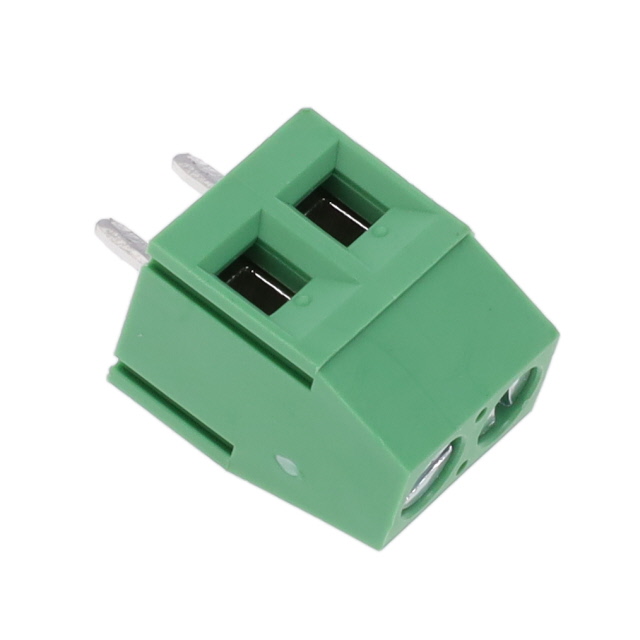

EUROBLOCK 2POS
| Part | Torque - Screw | Torque - Screw | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Screw Thread | Wire Gauge [Max] | Wire Gauge [Min] | Voltage | Positions Per Level | Mounting Type | Features | Mating Orientation | Color | Current | Number of Levels | Wire Termination | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 3.5 Lb-In | 0.4 Nm | -40 C | 105 ░C | Tin | M2.5 | 22 AWG | 12 AWG | 300 VDC | 2 | Through Hole | Interlocking (Side) | Horizontal with Board | Green | 16 A | 1 | Screw - Rising Cage Clamp | 5.08 mm | 0.2 in |
