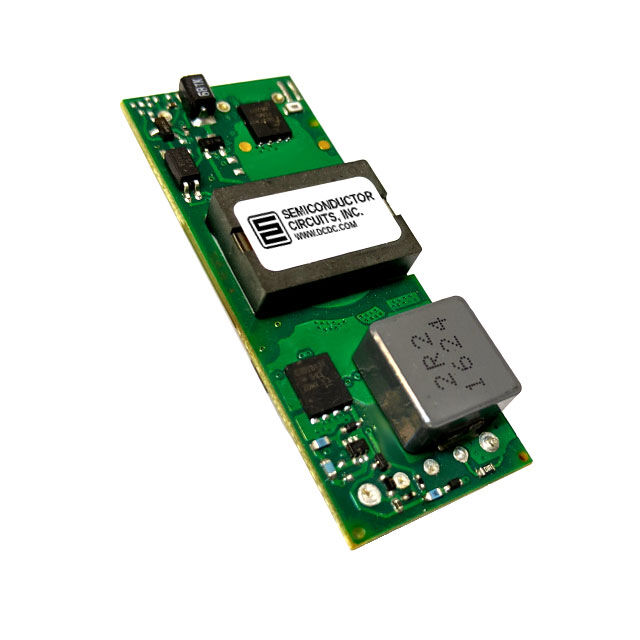

CPE6D24 Series

Catalog

DC DC CONVERTER 24V 144W

Part	Type	Current - Output (Max) [Max]	Mounting Type	Applications	Voltage - Isolation	Supplier Device Package	Approval Agency	Efficiency	Voltage - Output 1	Voltage - Input (Max) [Max]	Package / Case	Control Features	Number of Outputs	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Features	Size / Dimension [y]	Size / Dimension [z]
Semiconductor Circuits, Inc. CPE6D24N	Isolated Module	6 A	Through Hole	ITE (Commercial)	2250 VDC	Eighth Brick	CSA TUV UL	92.5 %	24 V	36 V	Eighth Brick	Active Low Enable	1	144 W	-40 °C	85 °C	0.9 in	0.46 in	2.3 in	22.9 mm	58.4 mm	11.8 mm	18 V	Adjustable Output Remote On/Off Remote Sense
Semiconductor Circuits, Inc. CPE6D24PB	Isolated Module	6 A	Through Hole	ITE (Commercial)	2250 VDC	Eighth Brick	CSA TUV UL	93 %	24 V	36 V	Eighth Brick	Active High Enable	1	144 W	-40 °C	85 °C	0.9 in	0.5 in	2.3 in		58.4 mm		18 V	Adjustable Output Baseplate Remote On/Off Remote Sense	22.9 mm	12.7 mm
Semiconductor Circuits, Inc. CPE6D24P	Isolated Module	6 A	Through Hole	ITE (Commercial)	2250 VDC	Eighth Brick	CSA TUV UL	93 %	24 V	36 V	Eighth Brick	Active High Enable	1	144 W	-40 °C	85 °C	0.9 in	0.46 in	2.3 in	22.9 mm	58.4 mm	11.8 mm	18 V	Adjustable Output Remote On/Off Remote Sense
