G88MP Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN HEADER VERT 4POS 3MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Number of Rows [custom]	Number of Positions	Contact Material	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Termination	Fastening Type	Voltage Rating	Mounting Type	Contact Length - Post	Contact Length - Post	Insulation Color	Insulation Material	Current Rating (Amps)	Number of Positions Loaded	Contact Type	Insulation Height [z]	Insulation Height [z]	Connector Type	Features	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Style	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows
Amphenol ICC (Commercial Products) G88MP04102CEU	2.54 µm	100 µin	Shrouded - 4 Wall	2	4	Copper Alloy	UL94 V-0	100 çin	2.54 çm	0.118 in	3 mm	Tin	Solder	Locking Ramp	250 V	Through Hole	0.083 in	2.11 mm	Black	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	All	Male Pin	0.39 in	9.91 mm	Header	Board Guide Board Lock	Square	-40 C	105 ░C	3 mm	0.118 in	Board to Cable/Wire

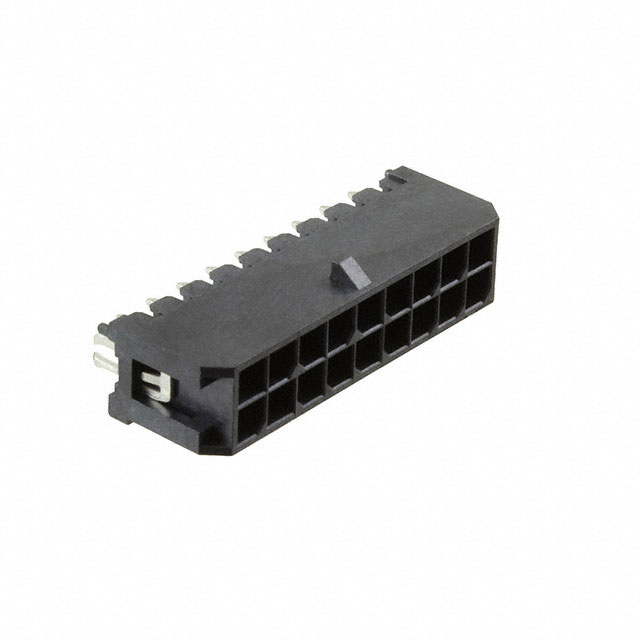

Amphenol ICC (Commercial Products) G88MP18102CEU	2.54 µm	100 µin	Shrouded - 4 Wall	2	18	Copper Alloy	UL94 V-0	100 çin	2.54 çm	0.118 in	3 mm	Tin	Solder	Locking Ramp	250 V	Through Hole	0.083 in	2.11 mm	Black	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	All	Male Pin	0.39 in	9.91 mm	Header	Board Guide Board Lock	Square	-40 C	105 ░C	3 mm	0.118 in	Board to Cable/Wire

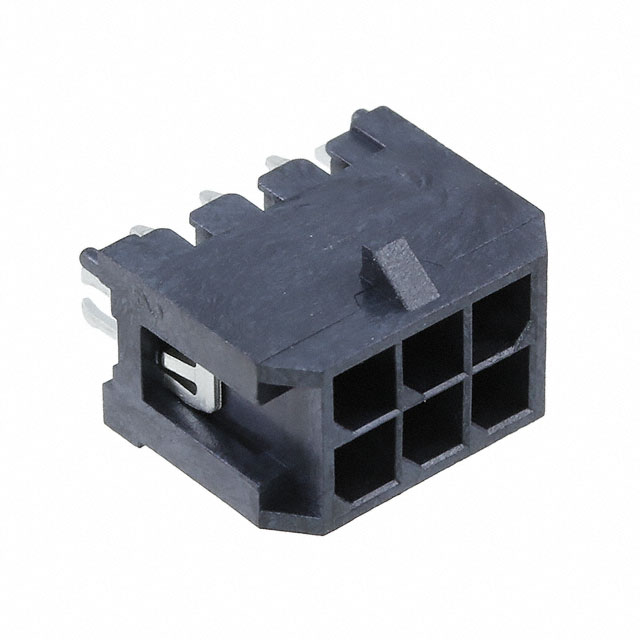

Amphenol ICC (Commercial Products) G88MP06102CEU	2.54 µm	100 µin	Shrouded - 4 Wall	2	6	Copper Alloy	UL94 V-0	100 çin	2.54 çm	0.118 in	3 mm	Tin	Solder	Locking Ramp	250 V	Through Hole	0.083 in	2.11 mm	Black	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	All	Male Pin	0.39 in	9.91 mm	Header	Board Guide Board Lock	Square	-40 C	105 ░C	3 mm	0.118 in	Board to Cable/Wire
Amphenol ICC (Commercial Products) G88MP08102KEU	2.54 µm	100 µin	Shrouded - 4 Wall	2	8	Copper Alloy	UL94 V-0	100 çin	2.54 çm	0.118 in	3 mm	Tin	Kinked Pin Solder	Locking Ramp	250 V	Through Hole			Black	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	All	Male Pin	0.39 in	9.91 mm	Header	Board Lock	Square	-40 C	105 ░C	3 mm	0.118 in	Board to Cable/Wire	0.126 "	3.2 mm
Amphenol ICC (Commercial Products) G88MP20102KEU	2.54 µm	100 µin	Shrouded - 4 Wall	2	20	Copper Alloy	UL94 V-0	100 çin	2.54 çm	0.118 in	3 mm	Tin	Kinked Pin Solder	Locking Ramp	250 V	Through Hole			Black	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	All	Male Pin	0.39 in	9.91 mm	Header	Board Lock	Square	-40 C	105 ░C	3 mm	0.118 in	Board to Cable/Wire	0.126 "	3.2 mm
Amphenol ICC (Commercial Products) G88MP16102CEU	2.54 µm	100 µin	Shrouded - 4 Wall	2	16	Copper Alloy	UL94 V-0	100 çin	2.54 çm	0.118 in	3 mm	Tin	Solder	Locking Ramp	250 V	Through Hole	0.083 in	2.11 mm	Black	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	All	Male Pin	0.39 in	9.91 mm	Header	Board Guide Board Lock	Square	-40 C	105 ░C	3 mm	0.118 in	Board to Cable/Wire

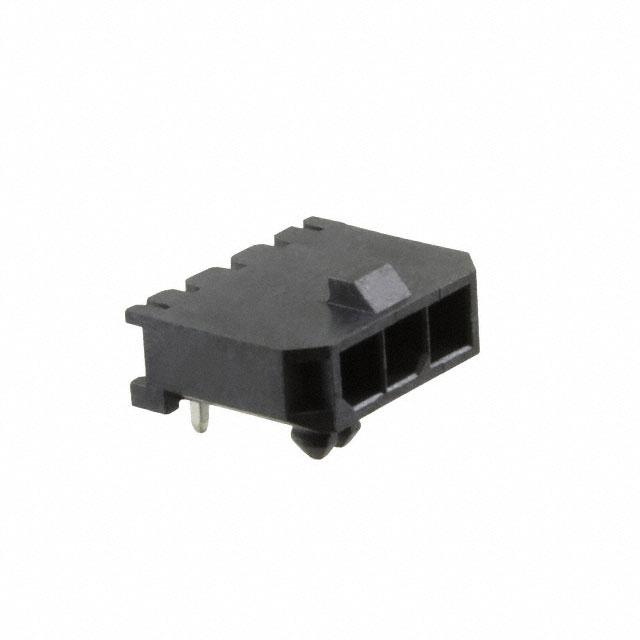

Amphenol ICC (Commercial Products) G88MPB03002C1EU	2.54 µm	100 µin	Shrouded - 4 Wall			Copper Alloy	UL94 V-0	100 çin	2.54 çm			Tin	Solder	Locking Ramp	250 V	Right Angle Through Hole	0.083 in	2.11 mm	Black	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	All	Male Pin	0.172 in	4.37 mm	Header	Board Lock	Square	-40 C	105 ░C	3 mm	0.118 in	Board to Cable/Wire			1
Amphenol ICC (Commercial Products) G88MP22102KEU	2.54 µm	100 µin	Shrouded - 4 Wall	2	22	Copper Alloy	UL94 V-0	100 çin	2.54 çm	0.118 in	3 mm	Tin	Kinked Pin Solder	Locking Ramp	250 V	Through Hole			Black	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	All	Male Pin	0.39 in	9.91 mm	Header	Board Lock	Square	-40 C	105 ░C	3 mm	0.118 in	Board to Cable/Wire	0.126 "	3.2 mm

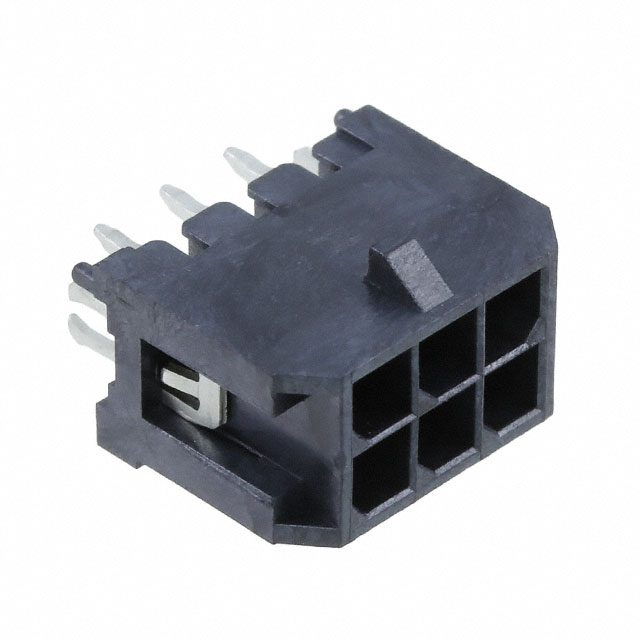

Amphenol ICC (Commercial Products) G88MP06102KEU	2.54 µm	100 µin	Shrouded - 4 Wall	2	6	Copper Alloy	UL94 V-0	100 çin	2.54 çm	0.118 in	3 mm	Tin	Kinked Pin Solder	Locking Ramp	250 V	Through Hole			Black	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	All	Male Pin	0.39 in	9.91 mm	Header	Board Lock	Square	-40 C	105 ░C	3 mm	0.118 in	Board to Cable/Wire	0.126 "	3.2 mm
Amphenol ICC (Commercial Products) G88MP02102KEU	2.54 µm	100 µin	Shrouded - 4 Wall	2	2	Copper Alloy	UL94 V-0	100 çin	2.54 çm	0.118 in	3 mm	Tin	Kinked Pin Solder	Locking Ramp	250 V	Through Hole			Black	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	All	Male Pin	0.39 in	9.91 mm	Header	Board Lock	Square	-40 C	105 ░C			Board to Cable/Wire	0.126 "	3.2 mm
