MAX17552 Series

Catalog

EVAL BOARD FOR MAX17552

Part	Main Purpose	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Board Type	Supplied Contents	Regulator Topology	Utilized IC / Part	Current - Output	Outputs and Type	Outputs and Type	Frequency - Switching	Mounting Type	Voltage - Output (Min/Fixed)	Output Type	Voltage - Input (Min) [Min]	Topology	Number of Outputs	Voltage - Input (Max) [Max]	Function	Frequency - Switching [Min]	Frequency - Switching [Max]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Voltage - Output (Max) [Max]	Package / Case	Package / Case [x]	Package / Case [x]

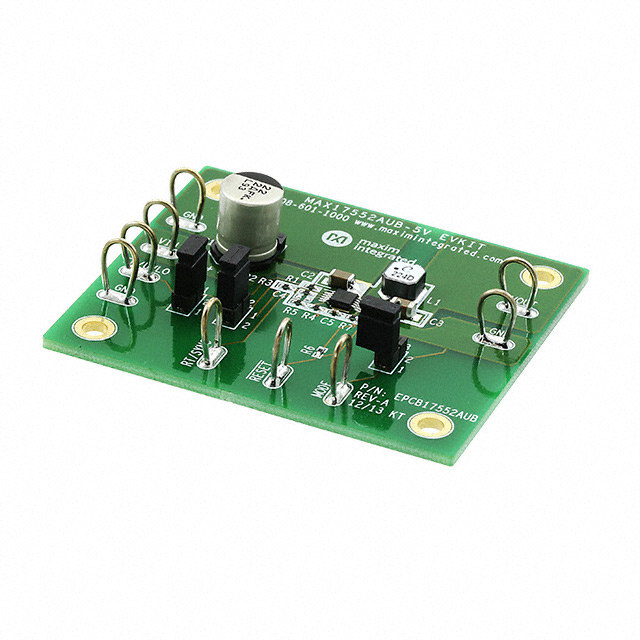

Analog Devices Inc./Maxim Integrated MAX17552AUBEVKIT#	DC/DC Step Down	5 V	60 V	6 V	Fully Populated	Board(s)	Buck	MAX17552	100 mA	Non-Isolated	1	220 kHz
Analog Devices Inc./Maxim Integrated MAX17552AATBEVKIT#	DC/DC Step Down				Fully Populated	Board(s)	Buck	MAX17552A		Non-Isolated	1
Analog Devices Inc./Maxim Integrated MAX17552AUB+									100 mA				Surface Mount	0.8 V	Adjustable	4 V	Buck	1	60 V	Step-Down	100 kHz	2.2 MHz	10-uMAX/uSOP	-40 °C	125 ¯C	Positive	54 V	10-MSOP 10-TFSOP	3 mm	0.118 in
Analog Devices Inc./Maxim Integrated MAX17552AEVKIT#	DC/DC Step Down	5 V	60 V	6 V	Fully Populated	Board(s)	Buck	MAX17552A	100 mA	Non-Isolated	1	220 kHz
Analog Devices Inc./Maxim Integrated MAX17552BATB+T									100 mA				Surface Mount	0.8 V	Adjustable	4 V	Buck	1	60 V	Step-Down	100 kHz	2.2 MHz		-40 °C	125 °C	Positive	54 V	10-WFDFN Exposed Pad

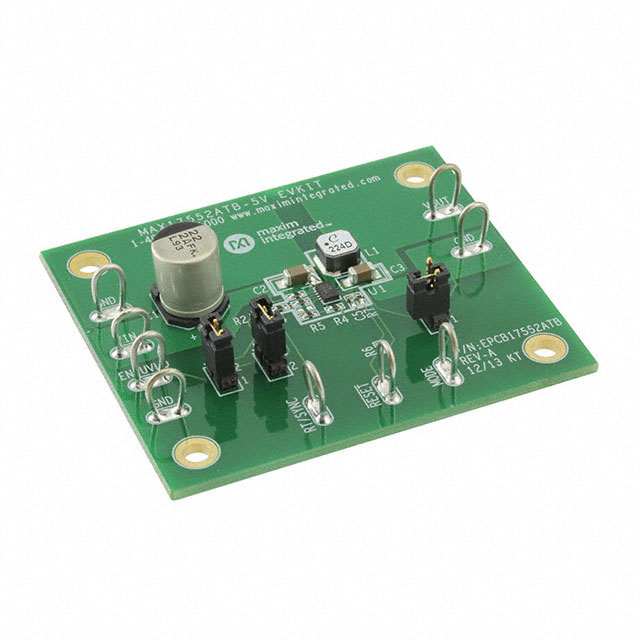

Analog Devices Inc./Maxim Integrated MAX17552ATBEVKIT#	DC/DC Step Down	5 V	60 V	6 V	Fully Populated	Board(s)	Buck	MAX17552	100 mA	Non-Isolated	1	220 kHz
