172R Series

Manufacturer: Serpac

Catalog

BOX ABS GRAY 6.88"L X 4.88"W

Part	Weight	Weight	Ratings	Container Type	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material Flammability Rating	Thickness	Thickness	Color	Material	Design	Features
Serpac 172R,GY	0.43 lb	195.04 g	IP40 NEMA 1	Box	50.8 mm	2 in	217 cm²	33.6 in²	6.88 in	123.95 mm	174.75 mm	4.88 in	UL94 HB	2.54 mm	0.1 in	Gray	ABS Plastic	Hand Held Split Sides	Front Access PCB Supports

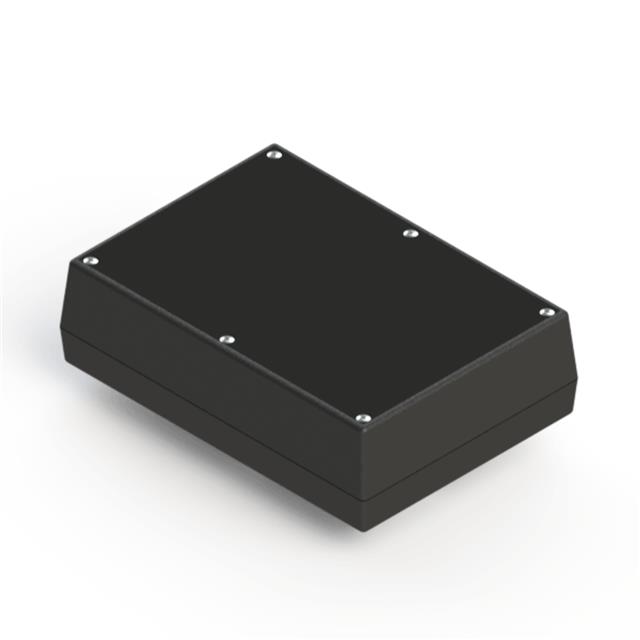

Serpac 172R,BK	0.43 lb	195.04 g	IP40 NEMA 1	Box	50.8 mm	2 in	217 cm²	33.6 in²	6.88 in	123.95 mm	174.75 mm	4.88 in	UL94 HB	2.54 mm	0.1 in	Black	ABS Plastic	Hand Held Split Sides	Front Access PCB Supports

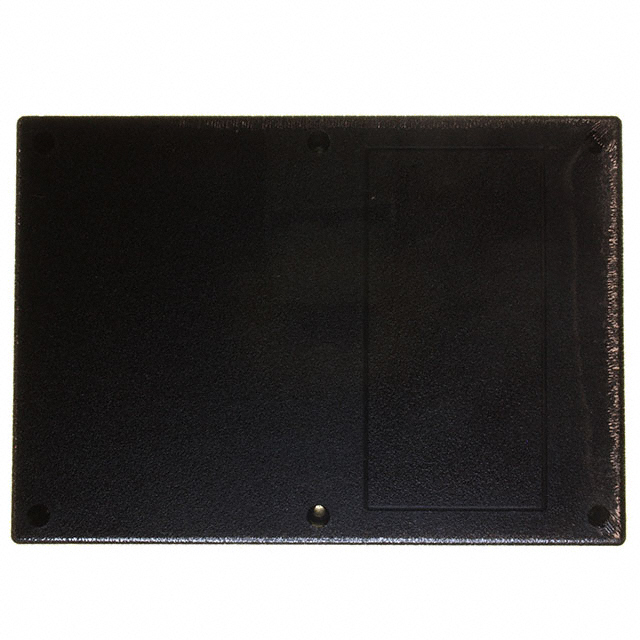

Serpac 172RI,BK	0.43 lb	195.04 g	IP40 NEMA 1	Box	50.8 mm	2 in	217 cm²	33.6 in²	6.88 in	123.95 mm	174.75 mm	4.88 in	UL94 HB	2.54 mm	0.1 in	Black	ABS Plastic	Hand Held Split Sides	Front Access PCB Supports

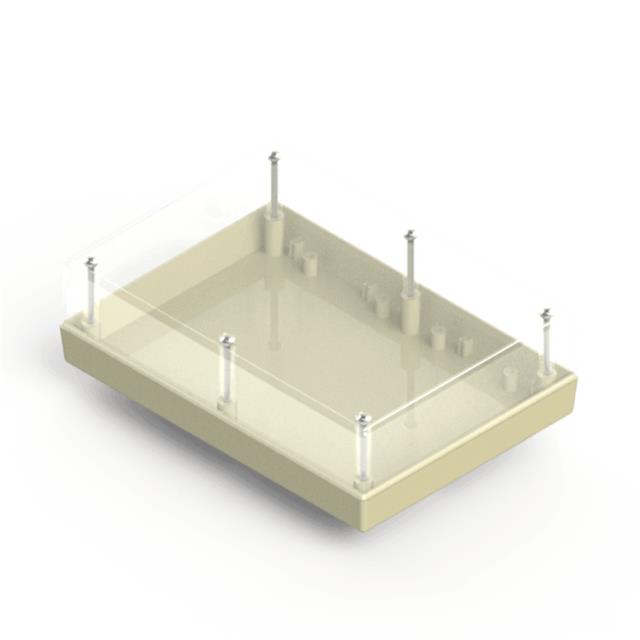

Serpac 172RC,AL	0.43 lb	195.04 g	IP40 NEMA 1	Box	50.8 mm	2 in	217 cm²	33.6 in²	6.88 in	123.95 mm	174.75 mm	4.88 in		2.54 mm	0.1 in		Plastic Polycarbonate	Hand Held Split Sides	Front Access PCB Supports

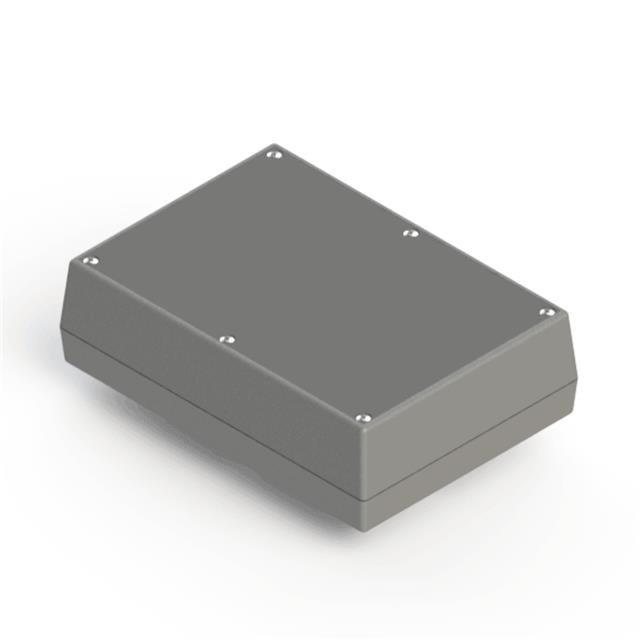

Serpac 172RI,GY	0.43 lb	195.04 g	IP40 NEMA 1	Box	50.8 mm	2 in	217 cm²	33.6 in²	6.88 in	123.95 mm	174.75 mm	4.88 in	UL94 HB	2.54 mm	0.1 in	Gray	ABS Plastic	Hand Held Split Sides	Front Access PCB Supports

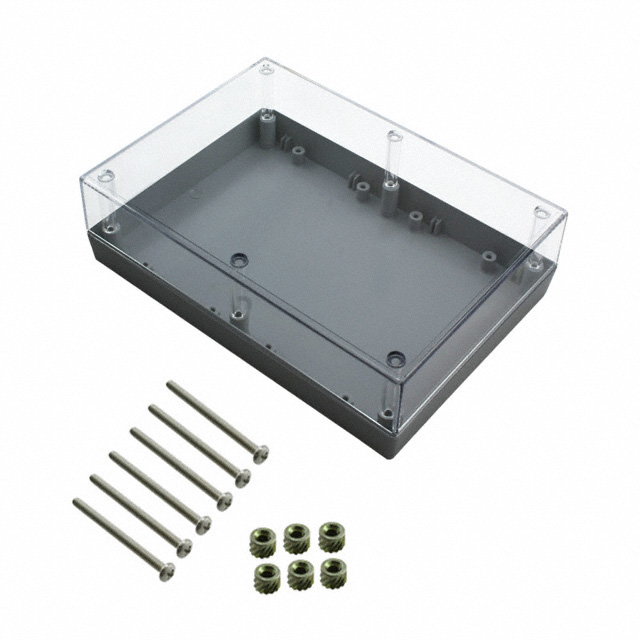

Serpac 172RC,GY	0.43 lb	195.04 g	IP40 NEMA 1	Box	50.8 mm	2 in	217 cm²	33.6 in²	6.88 in	123.95 mm	174.75 mm	4.88 in		2.54 mm	0.1 in	Clear Cover/Door Gray	Plastic Polycarbonate	Hand Held Split Sides	Front Access PCB Supports

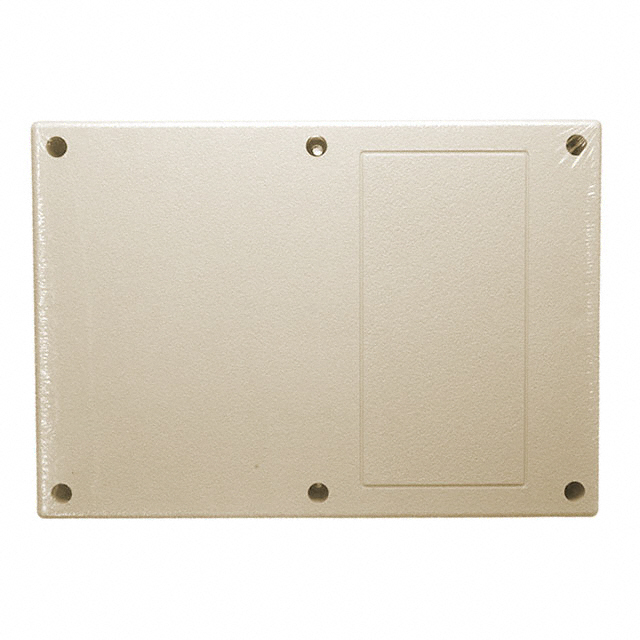

Serpac 172RI,AL	0.43 lb	195.04 g	IP40 NEMA 1	Box	50.8 mm	2 in	217 cm²	33.6 in²	6.88 in	123.95 mm	174.75 mm	4.88 in	UL94 HB	2.54 mm	0.1 in	Almond	ABS Plastic	Hand Held Split Sides	Front Access PCB Supports

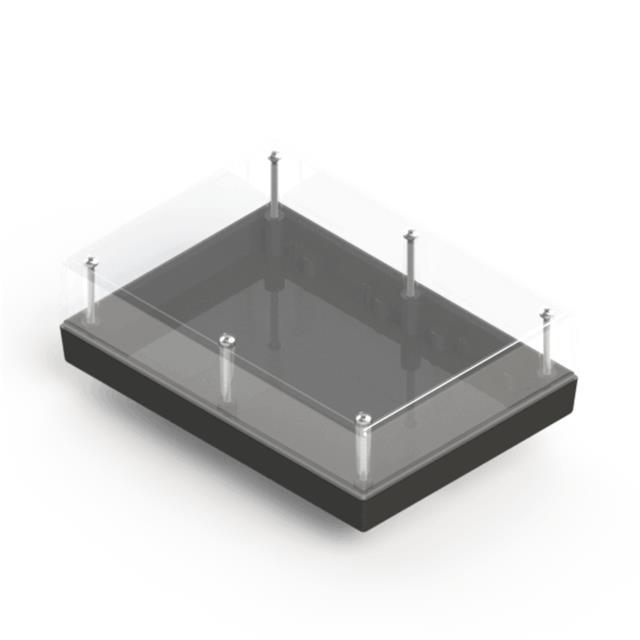

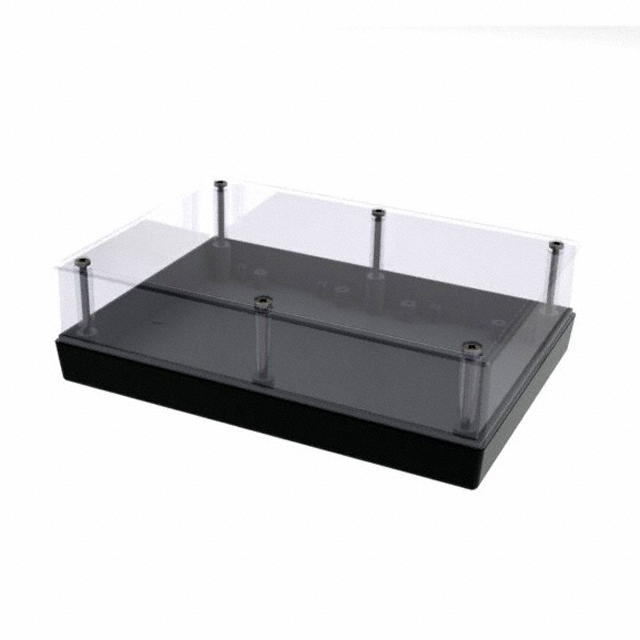

Serpac 172RC,BK	0.43 lb	195.04 g	IP40 NEMA 1	Box	50.8 mm	2 in	217 cm²	33.6 in²	6.88 in	123.95 mm	174.75 mm	4.88 in		2.54 mm	0.1 in	Black Clear Cover/Door	Plastic Polycarbonate	Hand Held Split Sides	Front Access PCB Supports

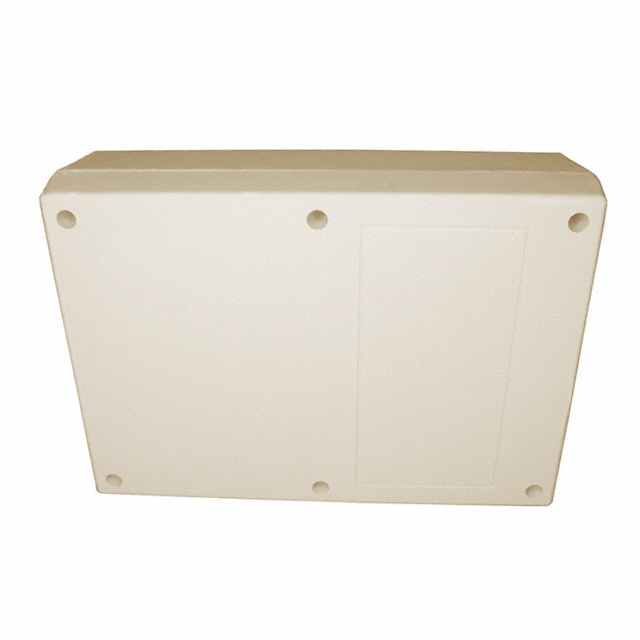

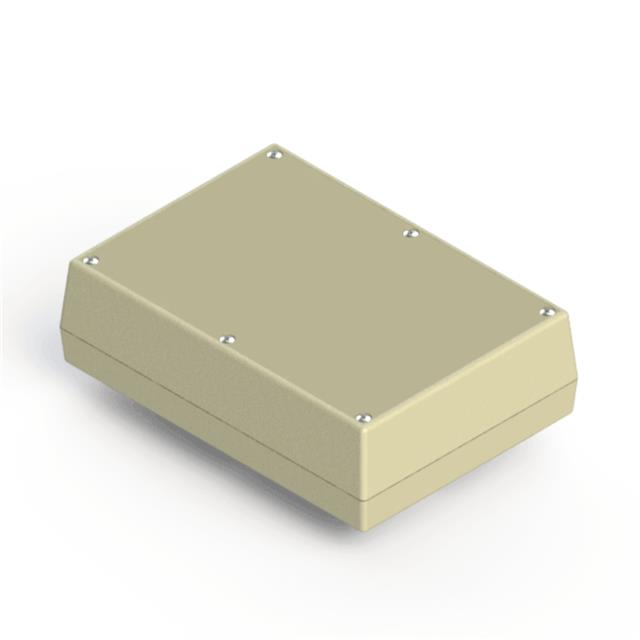

Serpac 172R,AL	0.43 lb	195.04 g	IP40 NEMA 1	Box	50.8 mm	2 in	217 cm²	33.6 in²	6.88 in	123.95 mm	174.75 mm	4.88 in	UL94 HB	2.54 mm	0.1 in	Almond	ABS Plastic	Hand Held Split Sides	Front Access PCB Supports
