896-019 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SGL FMALE 19POS 0.125

...

Part	Material - Insulation	Termination Rows	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Flange Feature	Contact Finish	Termination	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Color	Read Out	Pitch	Pitch	Gender	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Material	Number of Rows	Card Type	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 896-019-522-107	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	19	Flush Mount M3 Threaded Insert Top Opening	Gold	Solder	19	125 °C	-40 C	Black	Single	3.18 mm	0.125 in	Female	0.25 Ám	10 Áin	Through Hole	Copper Alloy	1	Non Specified - Single Edge	Cantilever

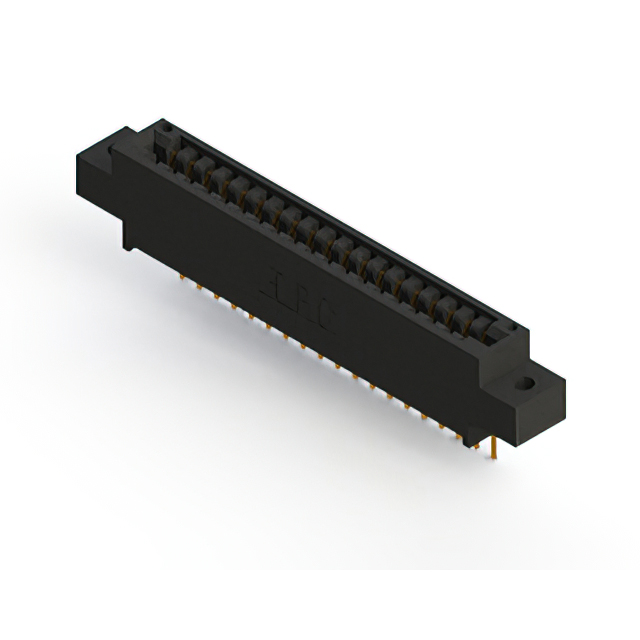

EDAC Inc. 896-019-522-602	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	19		Gold	Solder	19	125 °C	-40 C	Black	Single	3.18 mm	0.125 in	Female	0.25 Ám	10 Áin	Through Hole	Copper Alloy	1	Non Specified - Single Edge	Cantilever	3.25 mm	0.128 "
EDAC Inc. 896-019-521-112	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	19	Flush Mount Side Opening Unthreaded	Gold	Solder	19	125 °C	-40 C	Black	Single	3.18 mm	0.125 in	Female	0.25 Ám	10 Áin	Through Hole	Copper Alloy	1	Non Specified - Single Edge	Cantilever	3.25 mm	0.128 "

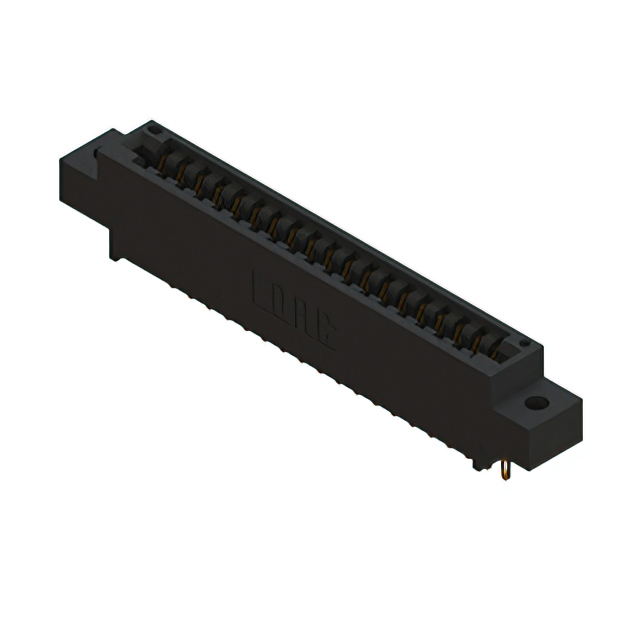

EDAC Inc. 896-019-500-602	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	19		Gold	Solder Eyelet(s)	19	125 °C	-40 C	Black	Single	3.18 mm	0.125 in	Female	0.25 Ám	10 Áin	Through Hole	Copper Alloy	1	Non Specified - Single Edge	Cantilever	3.25 mm	0.128 "

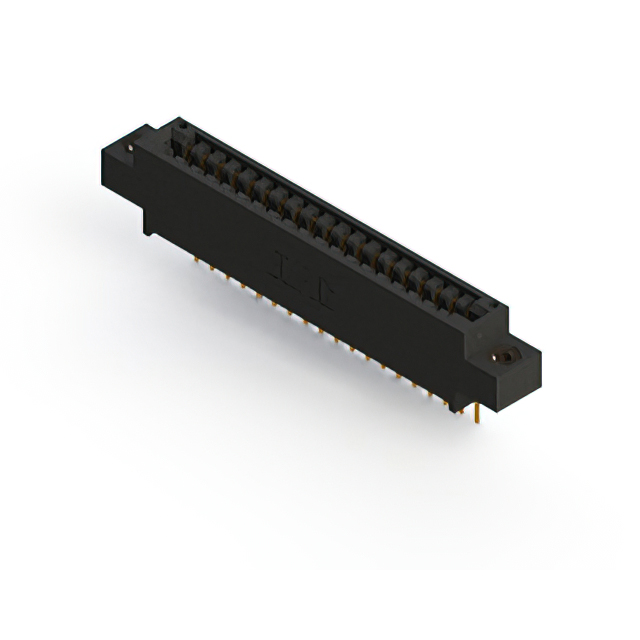

EDAC Inc. 896-019-541-608	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	19	4-40 Threaded Insert Top Mount Opening	Gold	Wire Wrap	19	125 °C	-40 C	Black	Single	3.18 mm	0.125 in	Female	0.25 Ám	10 Áin	Through Hole	Copper Alloy	1	Non Specified - Single Edge	Cantilever

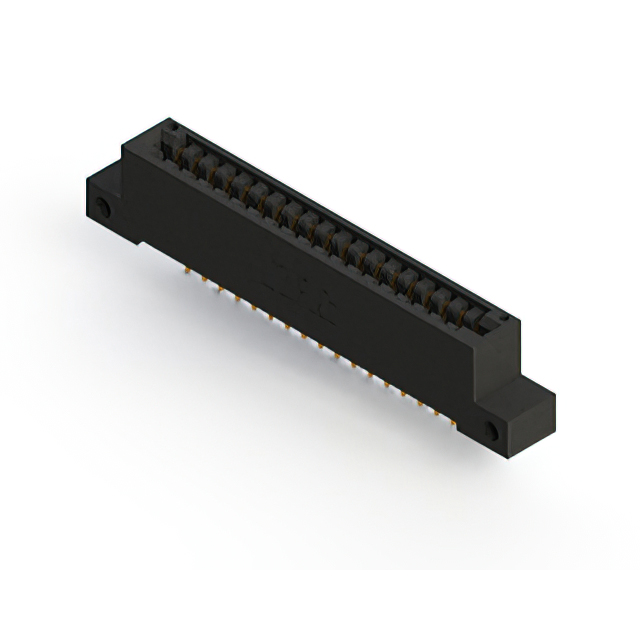

EDAC Inc. 896-019-540-112	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	19	Flush Mount Side Opening Unthreaded	Gold	Wire Wrap	19	125 °C	-40 C	Black	Single	3.18 mm	0.125 in	Female	0.25 Ám	10 Áin	Through Hole	Copper Alloy	1	Non Specified - Single Edge	Cantilever	3.25 mm	0.128 "

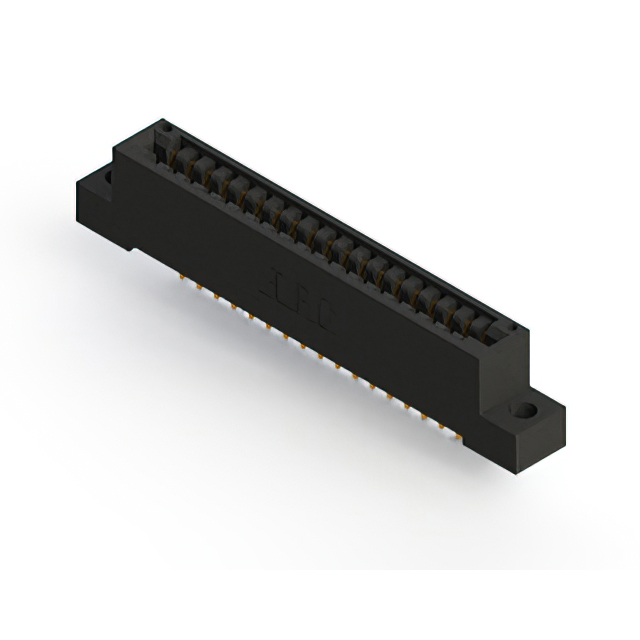

EDAC Inc. 896-019-522-104	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	19	Flush Mount Top Opening Unthreaded	Gold	Solder	19	125 °C	-40 C	Black	Single	3.18 mm	0.125 in	Female	0.25 Ám	10 Áin	Through Hole	Copper Alloy	1	Non Specified - Single Edge	Cantilever	3.96 mm	0.156 "

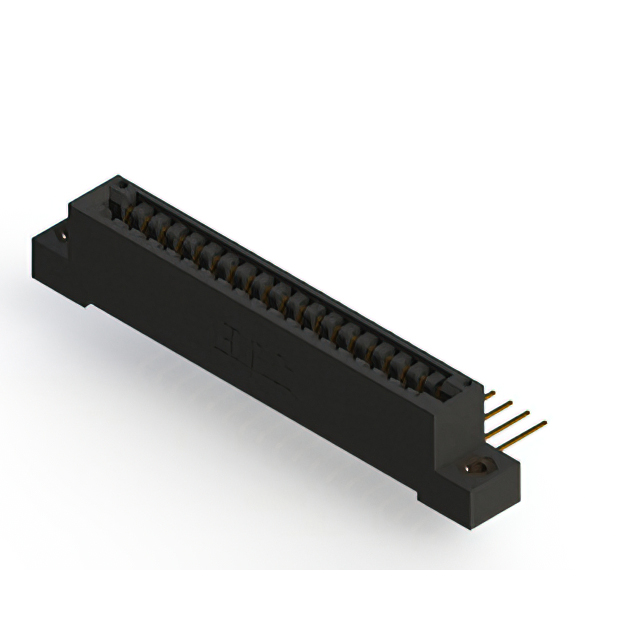

EDAC Inc. 896-019-558-107	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	19	Flush Mount M3 Threaded Insert Top Opening	Gold	Solder	19	125 °C	-40 C	Black	Single	3.18 mm	0.125 in	Female	0.25 Ám	10 Áin	Right Angle Through Hole	Copper Alloy	1	Non Specified - Single Edge	Cantilever

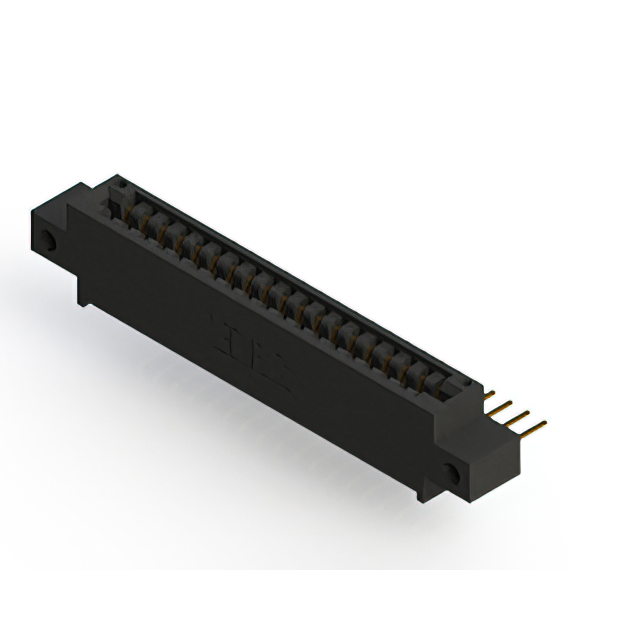

EDAC Inc. 896-019-559-612	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	19	Side Mount Opening Unthreaded	Gold	Solder	19	125 °C	-40 C	Black	Single	3.18 mm	0.125 in	Female	0.25 Ám	10 Áin	Right Angle Through Hole	Copper Alloy	1	Non Specified - Single Edge	Cantilever	3.25 mm	0.128 "

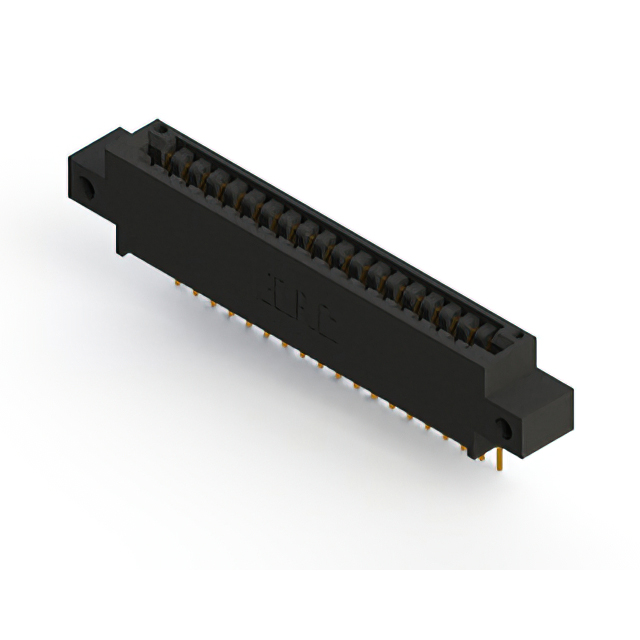

EDAC Inc. 896-019-526-612	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	19	Side Mount Opening Unthreaded	Gold	Solder	19	125 °C	-40 C	Black	Single	3.18 mm	0.125 in	Female	0.25 Ám	10 Áin	Through Hole	Copper Alloy	1	Non Specified - Single Edge	Cantilever	3.25 mm	0.128 "
