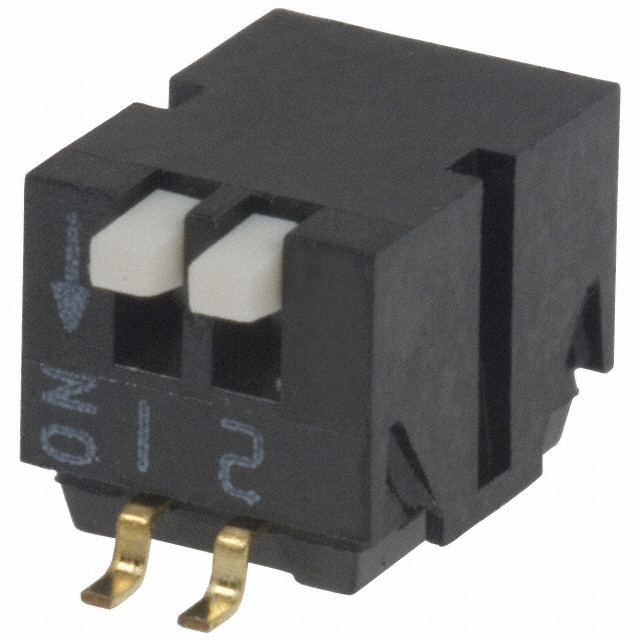

CHP-021 Series

Catalog

DIP SW, 2CKT, SPST, 0.1A, 6VDC, SMD ROHS COMPLIANT: YES

Part	Electrical Life	Pitch [x]	Pitch [x]	Circuit	Voltage Rating	Mounting Type	Body Material	Actuator Type	Contact Finish	Termination Style	Actuator Level	Contact Material	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board	Number of Positions	Length	Length
Nidec Components Corporation CHP-021TB	1000 Cycles	0.05 in	1.27 mm	SPST	6 VDC	Surface Mount Right Angle	Polyphenylene Sulfide (PPS)	Piano	Gold	Gull Wing	Raised	Copper Alloy	100 mA	85 °C	-40 °C	0.181 in	4.6 mm	2	4.6 mm	0.181 in
Nidec Components Corporation CHP-021A	1000 Cycles	0.05 in	1.27 mm	SPST	6 VDC	Surface Mount Right Angle	Polyphenylene Sulfide (PPS)	Piano	Gold	J Lead	Raised	Copper Alloy	100 mA	85 °C	-40 °C	0.181 in	4.6 mm	2	4.6 mm	0.181 in
Nidec Components Corporation CHP-021B	1000 Cycles	0.05 in	1.27 mm	SPST	6 VDC	Surface Mount Right Angle	Polyphenylene Sulfide (PPS)	Piano	Gold	Gull Wing	Raised	Copper Alloy	100 mA	85 °C	-40 °C	0.181 in	4.6 mm	2	4.6 mm	0.181 in
