77-12 Series

Catalog

RFI FOF GASKET NI/CU ADH

Part	Shelf Life Start	Shelf Life	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shape	Type	Width [x]	Width [x]	Operating Temperature [Max]	Operating Temperature [Min]	Attachment Method	Material	Length [x]	Length [x]	Height [z]	Height [z]	Width	Width	Height	Height
Parker Chomerics 77-12-3113-02400	Date of Shipment	24 Months	70 °F	21 °C	Rectangle	Fabric Over Foam	5 mm	0.197 in	70 °C	-40 C	Adhesive	Nickel-Copper over Urethane Foam	609.6 mm	24 in	0.197 in	5 mm
Parker Chomerics 77-12-3643-02400	Date of Shipment	24 Months			D-Shape	Fabric Over Foam			70 °C	-40 C	Adhesive	Nickel-Copper over Urethane Foam	609.6 mm	24 in	0.375 in	9.53 mm	12.7 mm	0.5 in
Parker Chomerics 77-12-3106-02400	Date of Shipment	24 Months	70 °F	21 °C	Rectangle	Fabric Over Foam	3.99 mm	0.157 in	70 °C	-40 C	Adhesive	Nickel-Copper over Urethane Foam	609.6 mm	24 in					0.118 in	3 mm
Parker Chomerics 77-12-3110-02400	Date of Shipment	24 Months	70 °F	21 °C	Rectangle	Fabric Over Foam	5 mm	0.197 in	70 °C	-40 C	Adhesive	Nickel-Copper over Urethane Foam	609.6 mm	24 in					0.098 in	2.49 mm
Parker Chomerics 77-12-3214-02400	Date of Shipment	24 Months	70 °F	21 °C	Rectangle	Fabric Over Foam	3.99 mm	0.157 in	70 °C	-40 C	Adhesive	Nickel-Copper over Urethane Foam	609.6 mm	24 in	0.039 in	0.99 mm

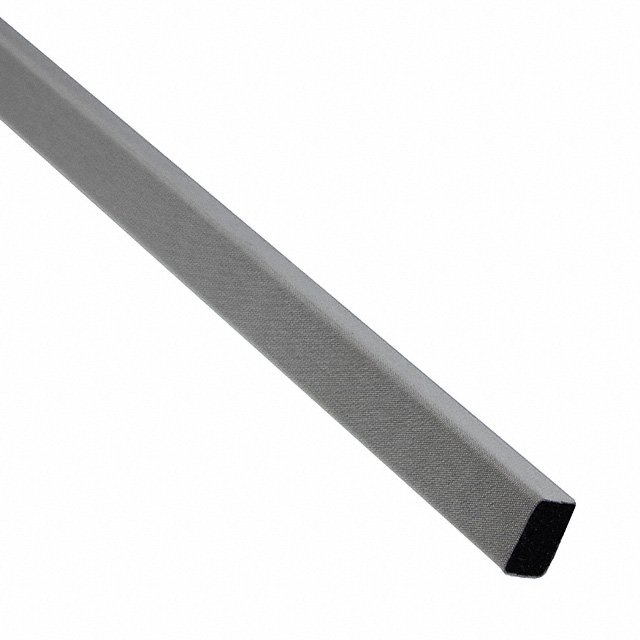

Parker Chomerics 77-12-3149-02400	Date of Shipment	24 Months	70 °F	21 °C	Rectangle	Fabric Over Foam			70 °C	-40 C	Adhesive	Nickel-Copper over Urethane Foam	609.6 mm	24 in			9.53 mm	0.375 in	0.25 in	6.35 mm
Parker Chomerics 77-12-3313-02400	Date of Shipment	24 Months	70 °F	21 °C	Rectangle	Fabric Over Foam	8 mm	0.315 in	70 °C	-40 C	Adhesive	Nickel-Copper over Urethane Foam	609.6 mm	24 in	0.394 in	10.01 mm

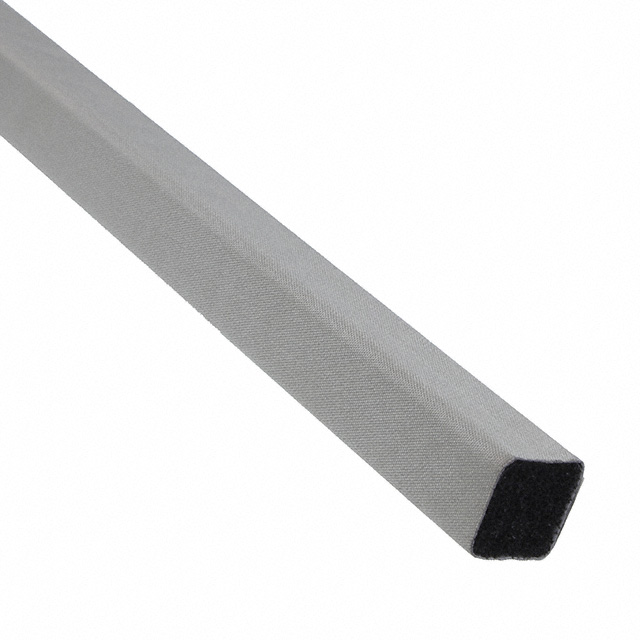

Parker Chomerics 77-12-3150-02400	Date of Shipment	24 Months	70 °F	21 °C	Square	Fabric Over Foam			70 °C	-40 C	Adhesive	Nickel-Copper over Urethane Foam	609.6 mm	24 in	0.375 in	9.53 mm	9.53 mm	0.375 in
Parker Chomerics 77-12-3195-02400	Date of Shipment	24 Months	70 °F	21 °C	Rectangle	Fabric Over Foam			70 °C	-40 C	Adhesive	Nickel-Copper over Urethane Foam	609.6 mm	24 in	0.126 in	3.2 mm	15.9 mm	0.626 "
Parker Chomerics 77-12-3224-02400	Date of Shipment	24 Months	70 °F	21 °C	Rectangle	Fabric Over Foam	7.01 mm	0.276 in	70 °C	-40 C	Adhesive	Nickel-Copper over Urethane Foam	609.6 mm	24 in	0.039 in	0.99 mm
