SI-N8V Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

LED MOD CM 110MM WHT RND 3000K

Part	Luminous Flux @ Current/Temperature	CCT (K)	Viewing Angle	Color	Temperature - Test	Current - Test	Lumens/Watt @ Current - Test	Type	Height [z]	CRI (Color Rendering Index)	Features	Lens Type	Voltage - Forward (Vf) (Typ)	Configuration	Size / Dimension [diameter]	CCT (K)	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Size / Dimension [x]	Size / Dimension [y]	Height

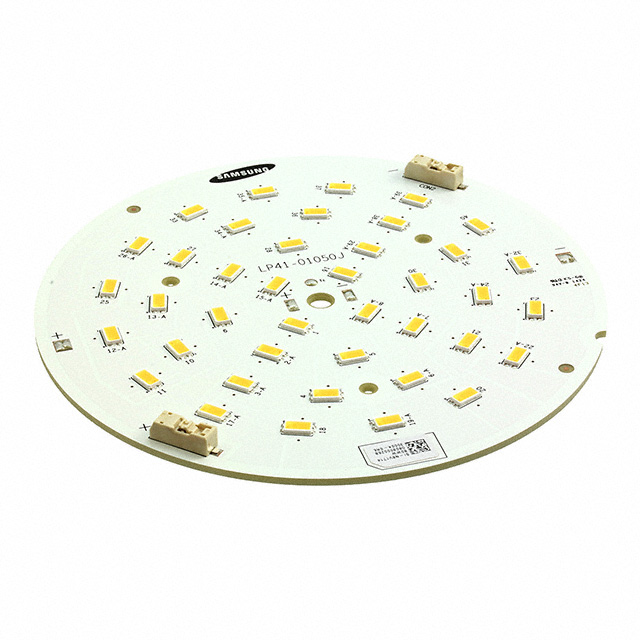

Samsung Semiconductor, Inc. SI-N8V1254B0WW	2130 lm	3000 K	120 °	Warm White	25 °C	430 mA	178 lm/W	LED Module	5.2 mm	80	With Connector	Flat	27.8 V	Round	110 mm

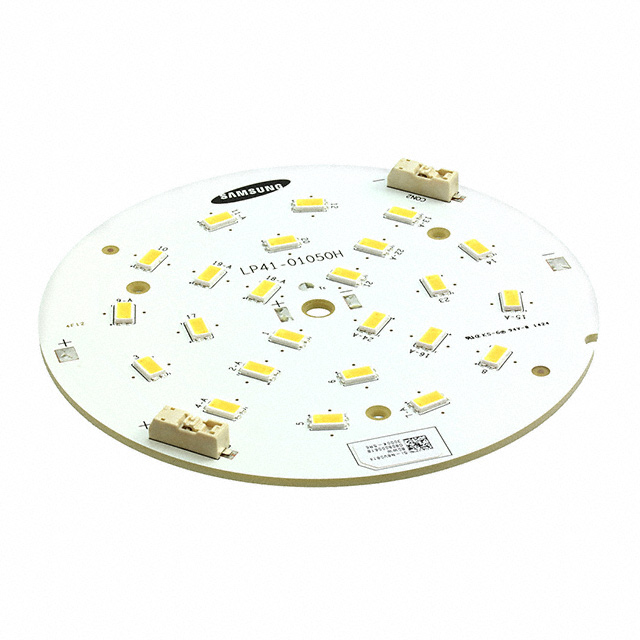

Samsung Semiconductor, Inc. SI-N8V0814B0WW	1050 lm	3000 K	115 °	Warm White	55 °C	350 mA	125 lm/W	LED Module	5.75 mm	80	With Connector	Flat	24 V	Round	90 mm	4-Step MacAdam Ellipse	450 mA
Samsung Semiconductor, Inc. SI-N8V1312B0WW	1120 lm	3000 K	115 °	Warm White	75 °C	250 mA	134 lm/W	Chip On Board (COB)	6.1 mm	80	With Connector	Flat	33.5 V	Round	50 mm	3-Step MacAdam Ellipse	350 mA	13.5 mm
Samsung Semiconductor, Inc. SI-N8V1113B1US	1160 lm	3000 K	115 °	Warm White	25 °C		102 lm/W	LED Module	12.5 mm	80		Flat	120 VAC	Square					55 mm	55 mm
Samsung Semiconductor, Inc. SI-N8V1714B0WW	2050 lm	3000 K	115 °	Warm White	55 °C		120 lm/W	LED Module	5.8 mm	80	With Connector	Flat	25 V	Round	110 mm	4-Step MacAdam Ellipse	750 mA
Samsung Semiconductor, Inc. SI-N8V2513B0WW	3040 lm	3000 K	115 °	Warm White	25 °C		123 lm/W	LED Module	3.7 mm	80		Flat	35.5 V	Round		3-Step MacAdam Ellipse	700 mA

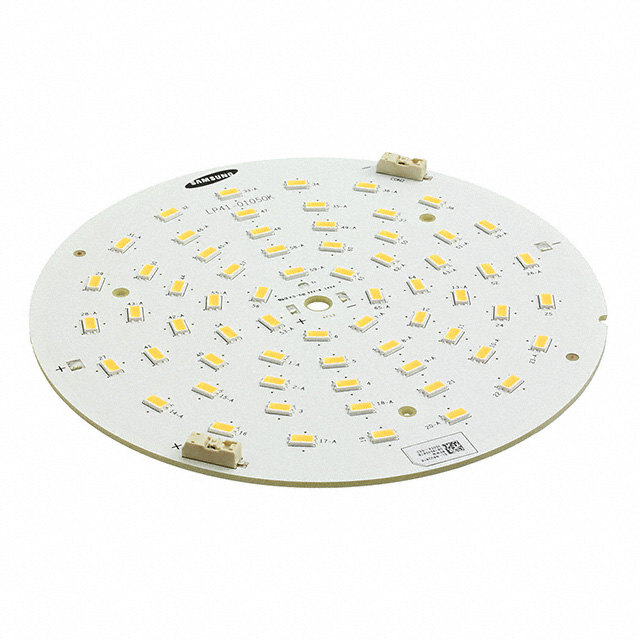

Samsung Semiconductor, Inc. SI-N8V2816B0WW	3330 lm	3000 K	115 °	Warm White	55 °C		120 lm/W	LED Module	5.8 mm	80	With Connector	Flat	39.7 V	Round	130 mm	4-Step MacAdam Ellipse	750 mA
Samsung Semiconductor, Inc. SI-N8V1123B1US	1150 lm	3000 K	115 °	Warm White	25 °C		101 lm/W	LED Module	12.5 mm	80		Flat	120 VAC	Square					55 mm	55 mm
Samsung Semiconductor, Inc. SI-N8V3616E0WW	1070 lm	3000 K	140 °	Warm White	65 °C	1.56 A	29 lm/W	LED Module		80			23.4 V	Square			2.8 A		28 mm	28 mm	2.2 mm
Samsung Semiconductor, Inc. SI-N8V0812B0WW	950 lm	3000 K	115 °	Warm White	25 °C	350 mA	123 lm/W	LED Module	3.7 mm	80		Flat	23.7 V	Round	41 mm		350 mA
