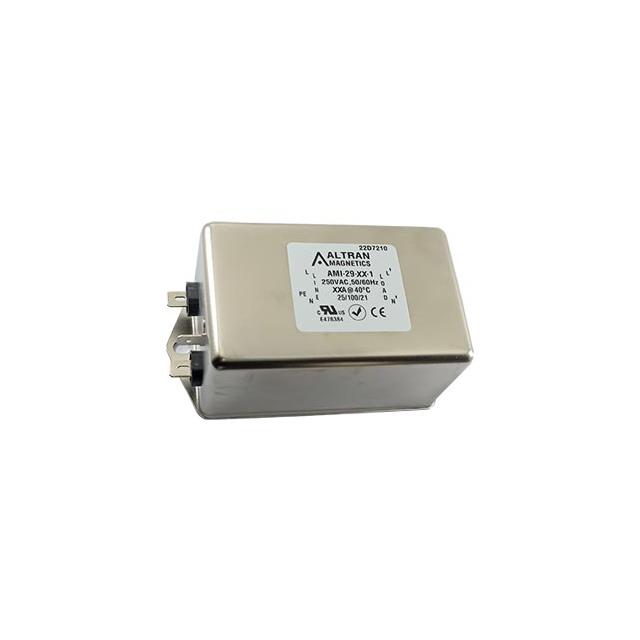

AMI-29 Series

Catalog

LINE FILTER 250VAC 4A CHASSIS

Part	Termination Style	Applications	Inductance	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Configuration	Voltage - Rated AC	Frequency - Operating	Current	Mounting Type
Altran Magnetics, LLC AMI-29-4-1	Quick Connect	General Purpose	28 mH	CE cURus	100 °C	-25 °C	Single Phase	Two Stage	250 V	DC ~ 400Hz	4 A	Chassis Mount
Altran Magnetics, LLC AMI-29A-1-3	Quick Connect	Safety	40 mH	CE cURus	100 °C	-25 °C	Single Phase	Two Stage	250 V	DC ~ 400Hz	1 A	Chassis Mount
Altran Magnetics, LLC AMI-29B-3-3	Quick Connect	Medical	28 mH	CE cURus	100 °C	-25 °C	Single Phase	Two Stage	250 V	DC ~ 400Hz	3 A	Chassis Mount
Altran Magnetics, LLC AMI-29-4-3	Quick Connect	General Purpose	28 mH	CE cURus	100 °C	-25 °C	Single Phase	Two Stage	250 V	DC ~ 400Hz	4 A	Chassis Mount
Altran Magnetics, LLC AMI-29B-8-1	Quick Connect	Medical	16 mH	CE cURus	100 °C	-25 °C	Single Phase	Two Stage	250 V	DC ~ 400Hz	8 A	Chassis Mount
Altran Magnetics, LLC AMI-29-1-3	Quick Connect	General Purpose	40 mH	CE cURus	100 °C	-25 °C	Single Phase	Two Stage	250 V	DC ~ 400Hz	1 A	Chassis Mount
Altran Magnetics, LLC AMI-29A-12-3	Quick Connect	Safety	8 mH	CE cURus	100 °C	-25 °C	Single Phase	Two Stage	250 V	DC ~ 400Hz	12 A	Chassis Mount
Altran Magnetics, LLC AMI-29A-8-1	Quick Connect	Safety	16 mH	CE cURus	100 °C	-25 °C	Single Phase	Two Stage	250 V	DC ~ 400Hz	8 A	Chassis Mount
Altran Magnetics, LLC AMI-29A-30-6	Threaded Post (M4)	Safety	3 mH	CE cURus	100 °C	-25 °C	Single Phase	Two Stage	250 V	DC ~ 400Hz	30 A	Chassis Mount
Altran Magnetics, LLC AMI-29A-6-1	Quick Connect	Safety	16 mH	CE cURus	100 °C	-25 °C	Single Phase	Two Stage	250 V	DC ~ 400Hz	6 A	Chassis Mount
