UWS-Q12 Series

Isolated DC/DC Converters - Through Hole 9-36VIN 12VOUT DC/DC NEG LOGIC

Manufacturer: Murata Electronics

Catalog

Isolated DC/DC Converters - Through Hole 9-36VIN 12VOUT DC/DC NEG LOGIC

Catalog

Isolated DC/DC Converters - Through Hole 9-36VIN 12VOUT DC/DC NEG LOGIC

Part	Control Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Type	Mounting Type	Power (Watts)	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Package / Case	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Features	Applications	Voltage - Input (Min) [Min]	Voltage - Isolation	Efficiency
Murata Electronics UWS-3.3/15-Q12N-C	Active Low Enable	-40 °C	85 °C	3.3 V	Isolated Module	Through Hole	50 W	Sixteenth Brick	1.3 in	0.9 in	22.9 mm	0.36 in	33 mm	9.1 mm	1	Sixteenth Brick	15 A	36 V	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	9 V	2250 VDC
Murata Electronics UWS-15/3-Q12N-C	Active Low Enable	-40 °C	85 °C	15 V	Isolated Module	Through Hole	50 W	Sixteenth Brick	1.3 in	0.9 in	22.9 mm	0.36 in	33 mm	9.1 mm	1	Sixteenth Brick	3.3 A	36 V	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	9 V	2250 VDC	91 %
Murata Electronics UWS-24/2-Q12P-C	Active High Enable	-40 °C	85 °C	24 V	Isolated Module	Through Hole	48 W	Sixteenth Brick	1.3 in	0.9 in	22.9 mm	0.36 in	33 mm	9.1 mm	1	Sixteenth Brick	2 A	36 V	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	9 V	2250 VDC	91 %

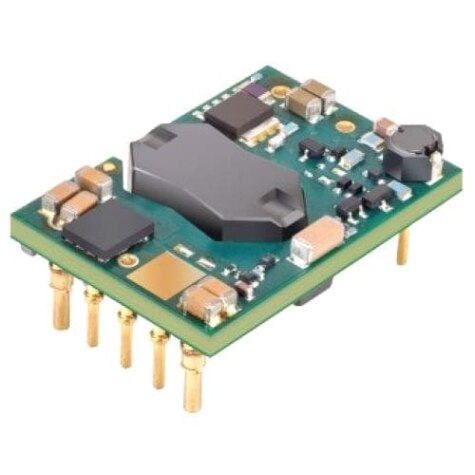

Murata Electronics UWS-15/3-Q12P-C	Active High Enable	-40 °C	85 °C	15 V	Isolated Module	Through Hole	50 W	Sixteenth Brick	1.3 in	0.9 in	22.9 mm	0.36 in	33 mm	9.1 mm	1	Sixteenth Brick	3.3 A	36 V	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	9 V	2250 VDC	91 %
Murata Electronics UWS-12/4.5-Q12N-C	Active Low Enable	-40 °C	85 °C	12 V	Isolated Module	Through Hole	54 W	Sixteenth Brick	1.3 in	0.9 in	22.9 mm	0.36 in	33 mm	9.1 mm	1	Sixteenth Brick	4.5 A	36 V	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	9 V	2250 VDC	91 %
Murata Electronics UWS-5/10-Q12P-C	Active High Enable	-40 °C	85 °C	5 V	Isolated Module	Through Hole	50 W	Sixteenth Brick	1.3 in	0.9 in	22.9 mm	0.36 in	33 mm	9.1 mm	1	Sixteenth Brick	10 A	36 V	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	9 V	2250 VDC	91 %
Murata Electronics UWS-5/10-Q12N-C	Active Low Enable	-40 °C	85 °C	5 V	Isolated Module	Through Hole	50 W	Sixteenth Brick	1.3 in	0.9 in	22.9 mm	0.36 in	33 mm	9.1 mm	1	Sixteenth Brick	10 A	36 V	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	9 V	2250 VDC	91 %
Murata Electronics UWS-12/4.5-Q12P-C	Active High Enable	-40 °C	85 °C	12 V	Isolated Module	Through Hole	54 W	Sixteenth Brick	1.3 in	0.9 in	22.9 mm	0.36 in	33 mm	9.1 mm	1	Sixteenth Brick	4.5 A	36 V	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	9 V	2250 VDC	91 %
Murata Electronics UWS-24/2-Q12N-C	Active Low Enable	-40 °C	85 °C	24 V	Isolated Module	Through Hole	48 W	Sixteenth Brick	1.3 in	0.9 in	22.9 mm	0.36 in	33 mm	9.1 mm	1	Sixteenth Brick	2 A	36 V	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	9 V	2250 VDC	91 %
