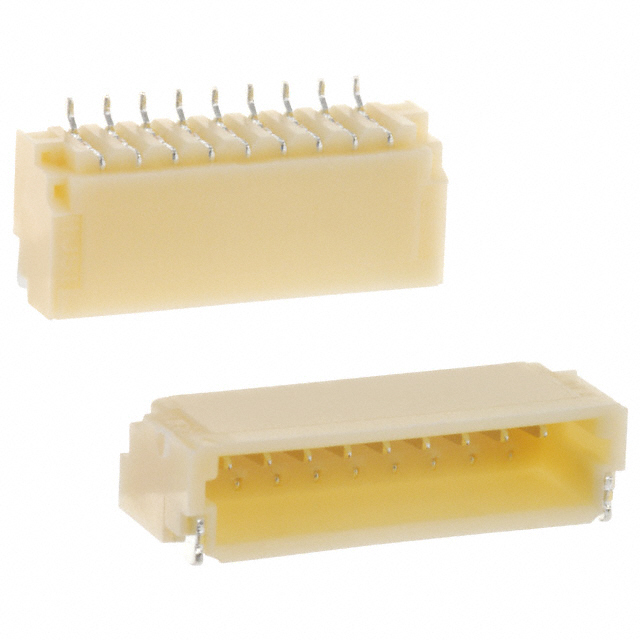

SM09B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 9POS 1MM
| Part | Insulation Material | Contact Shape | Number of Rows | Style | Material Flammability Rating | Contact Finish - Post | Number of Positions Loaded | Features | Insulation Color | Voltage Rating | Insulation Height | Insulation Height | Number of Positions | Fastening Type | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Mounting Type | Contact Type | Pitch - Mating | Pitch - Mating | Termination | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Nylon Polyamide (PA) | Square | 1 | Board to Cable/Wire | UL94 V-0 | Tin | All | Solder Retention | Natural | 50 V | 0.114 in | 2.9 mm | 9 | Push-Pull | Header | 85 °C | -25 °C | Shrouded - 4 Wall | Right Angle Surface Mount | Male Pin | 1 mm | 0.039 in | Solder | Copper Alloy |
