CRSL1A2 Series
Manufacturer: Oslo Switch
Beta
⌘K

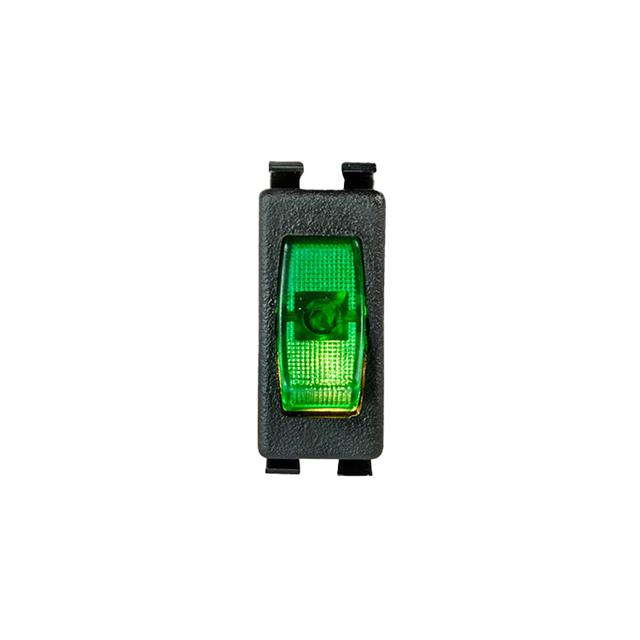

SWITCH ROCKER SPST 20A 125V
| Part | Mechanical Life | Electrical Life | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Approval Agency | Voltage Rating - DC | Illumination Voltage (Nominal) | Circuit | Termination Style | Switch Function | Actuator Type | Mounting Type | Voltage Rating - AC | Color - Actuator/Cap | Illumination Type, Color [custom] | Illumination Type, Color [custom] | Current Rating (Amps) | Actuator Marking | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oslo Switch | 100000 Cycles | 35000 Cycles | 12.19 mm | 27.43 mm | CSA UL VDE | 14 V | 250 VAC | SPST | Quick Connect - 0.250" (6.3mm) | Off-On | Concave (Curved) - Illuminated | Panel Mount Snap-In | 125 V | Green | Neon | Green | 14 A 20 A | O - | |
Oslo Switch | 100000 Cycles | 35000 Cycles | 12.19 mm | 27.43 mm | CSA UL VDE | 14 V | 250 VAC | SPST | Quick Connect - 0.250" (6.3mm) | Off-On | Concave (Curved) - Illuminated | Panel Mount Snap-In | 125 V | Red | Neon | Green | 14 A 20 A | O - | |
Oslo Switch | 100000 Cycles | 35000 Cycles | 12.19 mm | 27.43 mm | CSA UL VDE | 14 V | 28 VAC/DC | SPST | Quick Connect - 0.250" (6.3mm) | Off-On | Concave (Curved) - Illuminated | Panel Mount Snap-In | 125 V | Amber | 14 A 20 A | O - | Amber Incandescent | ||
Oslo Switch | 100000 Cycles | 35000 Cycles | 12.19 mm | 27.43 mm | CSA UL VDE | 14 V | 250 VAC | SPST | Quick Connect - 0.250" (6.3mm) | Off-On | Concave (Curved) - Illuminated | Panel Mount Snap-In | 125 V | Amber | 14 A 20 A | O - | Neon Amber | ||
Oslo Switch | 100000 Cycles | 35000 Cycles | 12.19 mm | 27.43 mm | CSA UL VDE | 14 V | 28 VAC/DC | SPST | Quick Connect - 0.250" (6.3mm) | Off-On | Concave (Curved) - Illuminated | Panel Mount Snap-In | 125 V | Red | 14 A 20 A | O - | Green Incandescent | ||
Oslo Switch | 100000 Cycles | 35000 Cycles | 12.19 mm | 27.43 mm | CSA UL VDE | 14 V | 28 VAC/DC | SPST | Quick Connect - 0.250" (6.3mm) | Off-On | Concave (Curved) - Illuminated | Panel Mount Snap-In | 125 V | Clear | 14 A 20 A | O - | Clear Incandescent | ||
Oslo Switch | 100000 Cycles | 35000 Cycles | 12.19 mm | 27.43 mm | CSA UL VDE | 14 V | 250 VAC | SPST | Quick Connect - 0.250" (6.3mm) | Off-On | Concave (Curved) - Illuminated | Panel Mount Snap-In | 125 V | Clear | 14 A 20 A | O - | Clear Neon | ||
Oslo Switch | 100000 Cycles | 35000 Cycles | 12.19 mm | 27.43 mm | CSA UL VDE | 14 V | 28 VAC/DC | SPST | Quick Connect - 0.250" (6.3mm) | Off-On | Concave (Curved) - Illuminated | Panel Mount Snap-In | 125 V | Green | 14 A 20 A | O - | Green Incandescent |
