796690 Series

Catalog

CONN EUROSTYLE BLOCK M 12 POS 5MM SOLDER THRU-HOLE 17.5A/CONTACT BOX

Part	Clamp Material - Plating [custom]	Clamp Material - Plating [custom]	Contact Material - Plating	Screw Material - Plating	Torque - Screw	Torque - Screw	Screw Thread	Color	Wire Gauge [Max]	Wire Gauge [Min]	Pitch	Pitch	Wire Termination	Current	Mounting Type	Voltage	Positions Per Level	Mating Orientation	Features	Number of Levels	Positions Per Level [custom]

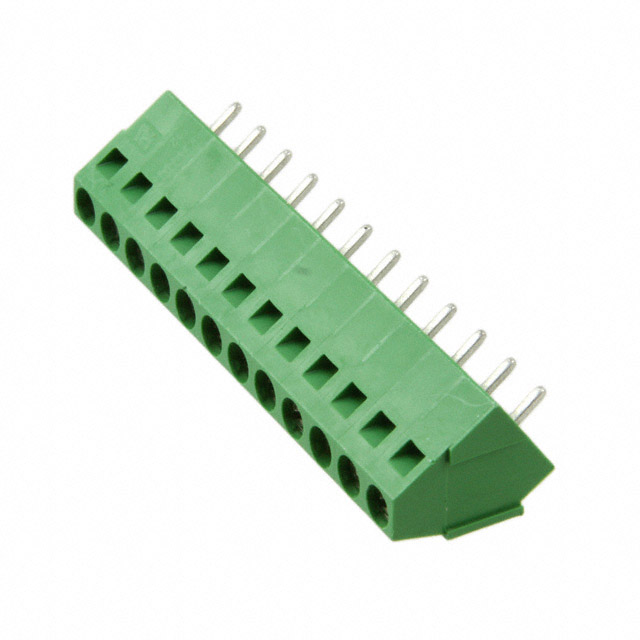

TE Connectivity AMP Connectors 1-796690-2	Brass	Tin Plated	Brass - Tin Plated	Brass - Nickel Plated	7 Lb-In	0.79 Nm	M3	Green	30 AWG	12 AWG	0.197 in	5 mm	Screw - Rising Cage Clamp	17.5 A	Through Hole	300 VDC	12	35° (145°) Angle with Board	Interlocking (Side)	1

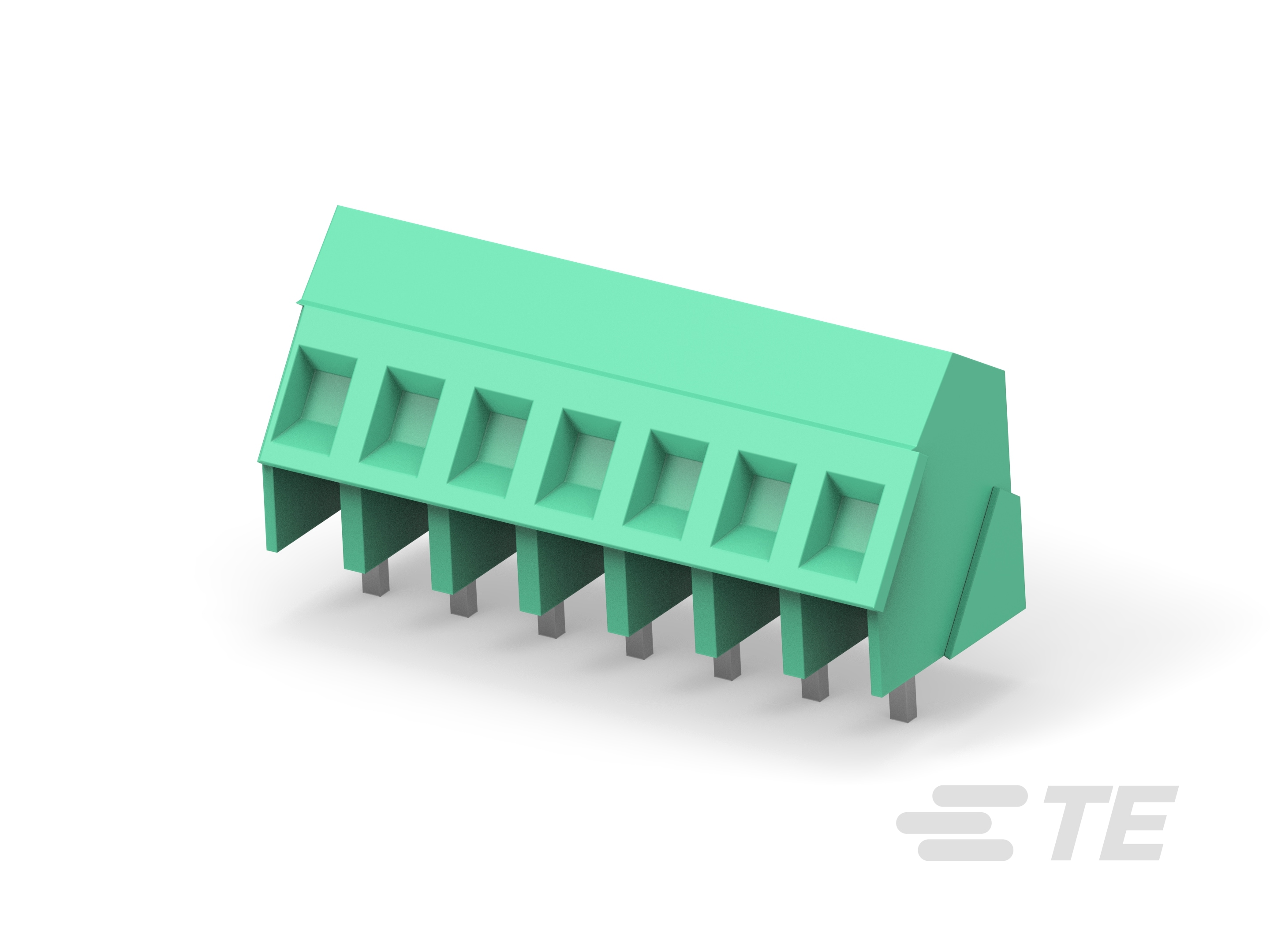

TE Connectivity AMP Connectors 796690-7	Brass	Tin Plated	Brass - Tin Plated	Brass - Nickel Plated	7 Lb-In	0.79 Nm	M3	Green	30 AWG	12 AWG	0.197 in	5 mm	Screw - Rising Cage Clamp	17.5 A	Through Hole	300 VDC		35° (145°) Angle with Board	Interlocking (Side)	1	7

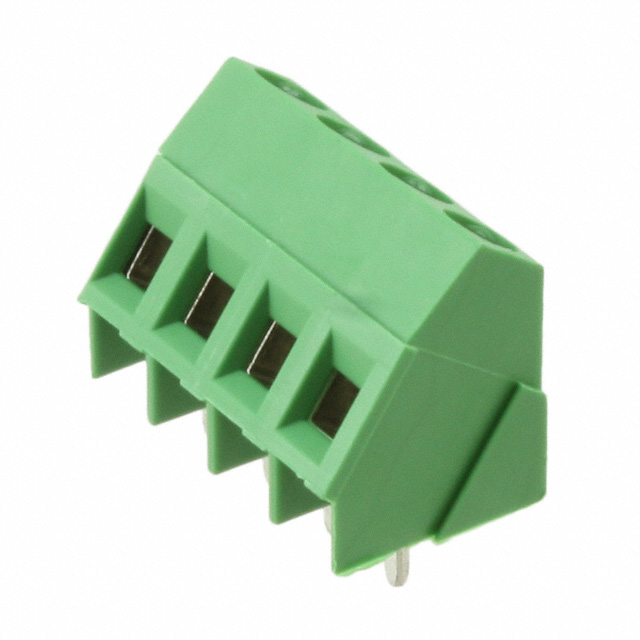

TE Connectivity AMP Connectors 796690-4	Brass	Tin Plated	Brass - Tin Plated	Brass - Nickel Plated	7 Lb-In	0.79 Nm	M3	Green	30 AWG	12 AWG	0.197 in	5 mm	Screw - Rising Cage Clamp	17.5 A	Through Hole	300 VDC	4	35° (145°) Angle with Board	Interlocking (Side)	1
TE Connectivity AMP Connectors 1-796690-1	Brass	Tin Plated	Brass - Tin Plated	Brass - Nickel Plated	7 Lb-In	0.79 Nm	M3	Green	30 AWG	12 AWG	0.197 in	5 mm	Screw - Rising Cage Clamp	17.5 A	Through Hole	300 VDC	11	35° (145°) Angle with Board	Interlocking (Side)	1
