JB15KP Series

Catalog

LOW PROFILE PROCESS SEALED TACTILE

Part	Switch Travel	Mechanical Life	Actuator Material	Circuit	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Outline [x]	Outline [y]	Illumination	Switch Function	Features	Mounting Type	Operating Force	Contact Rating @ Voltage	Actuator Orientation	Termination Style	Actuator Height off PCB, Vertical [z]
NKK Switches JB15KP-4HC	0.25 mm	5000000 Cycles	Polyacetal	SPST-NO	IP67 - Dust Tight Waterproof	-25 °C	70 °C	Square Button	10 mm	10 mm	Non-Illuminated	Off-Mom	Process Sealed	Through Hole	176 gf	0.05 A 24 VDC	Top Actuated	PC Pin	11.2 mm
NKK Switches JB15KP-4GH	0.25 mm	5000000 Cycles	Polyacetal	SPST-NO	IP67 - Dust Tight Waterproof	-25 °C	70 °C	Square Button	10 mm	10 mm	Non-Illuminated	Off-Mom	Process Sealed	Through Hole	176 gf	0.05 A 24 VDC	Top Actuated	PC Pin	11.2 mm

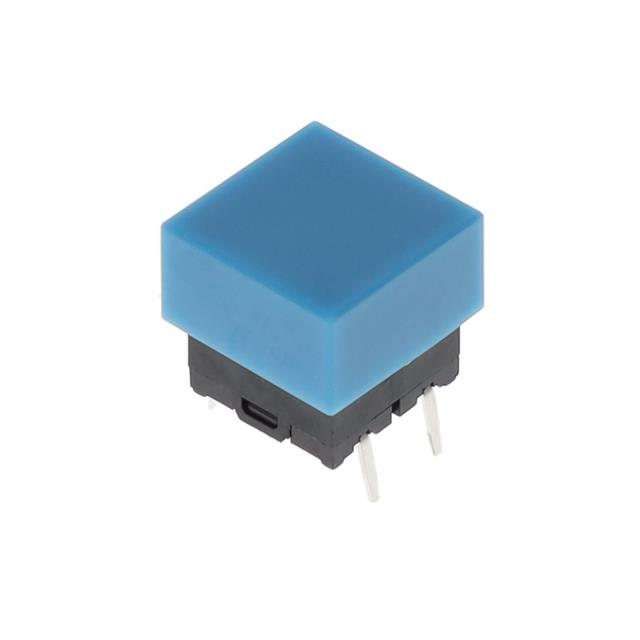

NKK Switches JB15KP-2G	0.25 mm	5000000 Cycles	Polyacetal	SPST-NO	IP67 - Dust Tight Waterproof	-25 °C	70 °C	Square Button	10 mm	10 mm	Non-Illuminated	Off-Mom	Process Sealed	Through Hole	176 gf	0.05 A 24 VDC	Top Actuated	PC Pin	11.2 mm

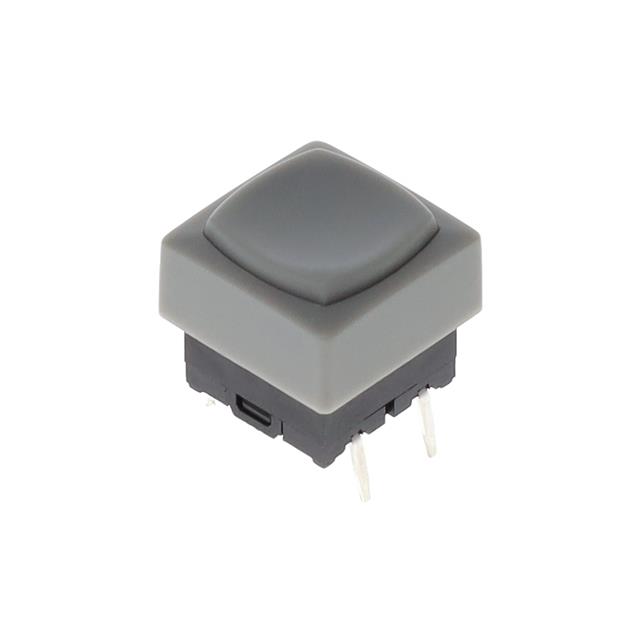

NKK Switches JB15KP-4HH	0.25 mm	5000000 Cycles	Polyacetal	SPST-NO	IP67 - Dust Tight Waterproof	-25 °C	70 °C	Square Button	10 mm	10 mm	Non-Illuminated	Off-Mom	Process Sealed	Through Hole	176 gf	0.05 A 24 VDC	Top Actuated	PC Pin	11.2 mm

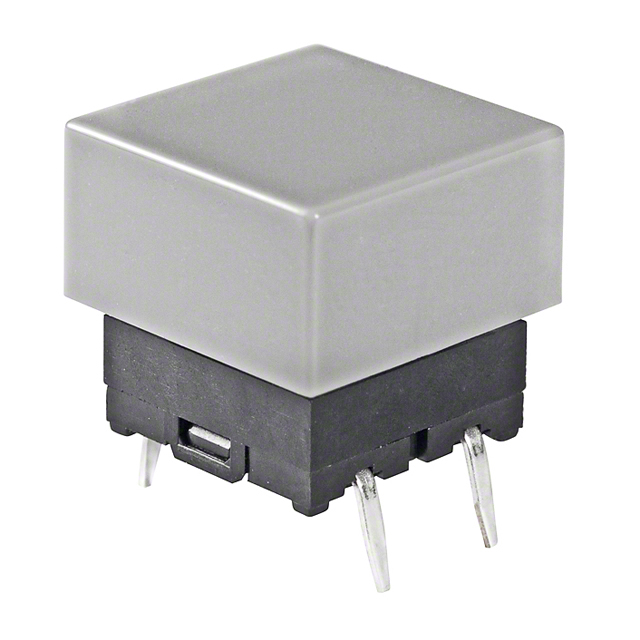

NKK Switches JB15KP-2H	0.25 mm	5000000 Cycles	Polyacetal	SPST-NO	IP67 - Dust Tight Waterproof	-25 °C	70 °C	Square Button	10 mm	10 mm	Non-Illuminated	Off-Mom	Process Sealed	Through Hole	176 gf	0.05 A 24 VDC	Top Actuated	PC Pin	11.2 mm
NKK Switches JB15KP-1G	0.25 mm	5000000 Cycles	Polyacetal	SPST-NO	IP67 - Dust Tight Waterproof	-25 °C	70 °C	Square Button	10 mm	10 mm	Non-Illuminated	Off-Mom	Process Sealed	Through Hole	176 gf	0.05 A 24 VDC	Top Actuated	PC Pin	11.2 mm
NKK Switches JB15KP-1H	0.25 mm	5000000 Cycles	Polyacetal	SPST-NO	IP67 - Dust Tight Waterproof	-25 °C	70 °C	Square Button	10 mm	10 mm	Non-Illuminated	Off-Mom	Process Sealed	Through Hole	176 gf	0.05 A 24 VDC	Top Actuated	PC Pin	11.2 mm
NKK Switches JB15KP-1E	0.25 mm	5000000 Cycles	Polyacetal	SPST-NO	IP67 - Dust Tight Waterproof	-25 °C	70 °C	Square Button	10 mm	10 mm	Non-Illuminated	Off-Mom	Process Sealed	Through Hole	176 gf	0.05 A 24 VDC	Top Actuated	PC Pin	11.2 mm
NKK Switches JB15KP-5F	0.25 mm	5000000 Cycles	Polyacetal	SPST-NO	IP67 - Dust Tight Waterproof	-25 °C	70 °C	Square Button	10 mm	10 mm	Non-Illuminated	Off-Mom	Process Sealed	Through Hole	176 gf	0.05 A 24 VDC	Top Actuated	PC Pin	11.2 mm

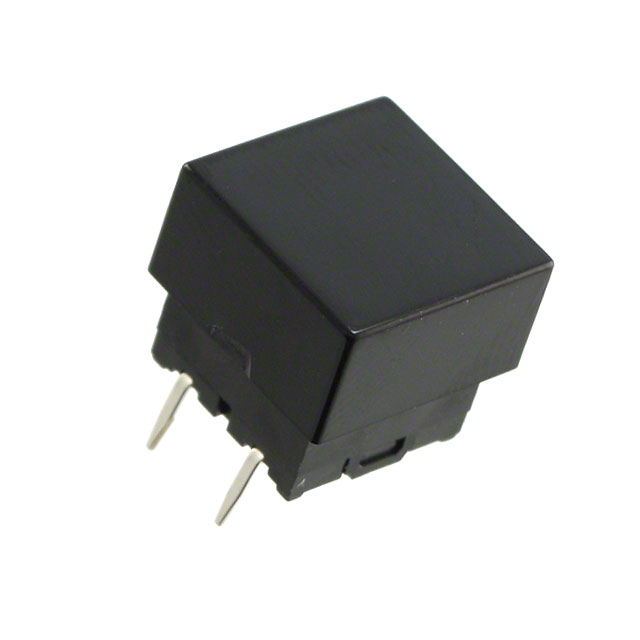

NKK Switches JB15KP-2A	0.25 mm	5000000 Cycles	Polyacetal	SPST-NO	IP67 - Dust Tight Waterproof	-25 °C	70 °C	Square Button	10 mm	10 mm	Non-Illuminated	Off-Mom	Process Sealed	Through Hole	176 gf	0.05 A 24 VDC	Top Actuated	PC Pin	11.2 mm
